| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | MH-MD |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | USD180 ~ USD495/pc |
| Packaging Details: | RS485 Output Mass Digital Air, Gas Flow Sensor Standard export carton packing or can customized |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Product Name: | Ultrasonic Open Channel Flow Meter Water | Accuracy: | ±0.25%F.S |
|---|---|---|---|
| Flow Measurement Range: | 0 ~ 93m3/s | Dimensions: | 160mm X 80mm X 110mm |
| Output: | 0 To 20mA; 4 To 20mA | Housing Material: | ABS Engineering Plastic |
| Power Consumption: | <3W | Protection Class: | IP65 |
| Explosion-proof Grade: | EXiaII BT4Gb | Working Temperature: | -10°C~60°C |

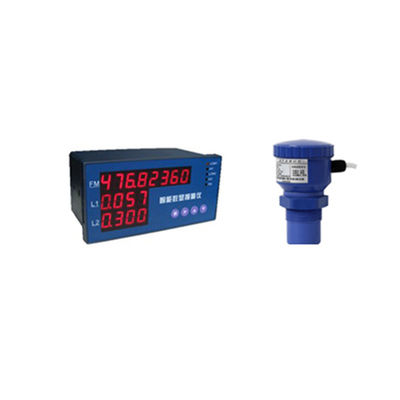

Embedded ultrasonic open channel flow meter water
Description
MH - MD embedded ultrasonic open channel flow meter is a kind of high precision flow meter by utilizing ultrasound measuring the Venturi channel or Parshall flume.The embedded ultrasonic open channel flow meter measure the reflected time of the sound waves when it rech the water interface, and then calculate the channel flow.The embedded ultrasonic open channel flow meter can display flow output, flow velocity, total flow and water level.

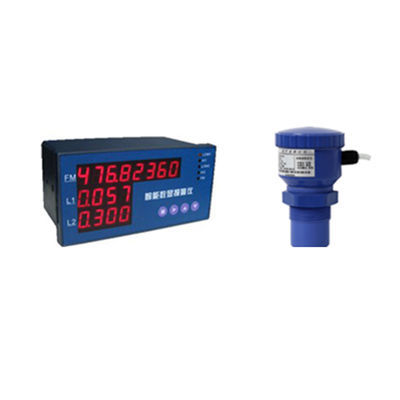

Detailed Images
Specification
| Embedded ultrasonic open channel flow meter water | |
| Flow Totalizer | |
| Flow Measurement Range | 0 ~ 93m3/s |
| Cumulative Flow Range | 9999999999Km3 |
| Weir Type | Triangular Weir, Rectangular Weir, etc. |
| Flow Error | |
| Triangular Weir | 1 ~ 2% |
| Rectangular Weir | 1 ~ 4% |
| Parshall Flume | 3% |

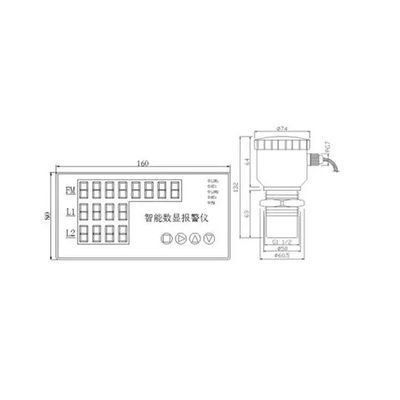

| Dimension | 160mm×80mm×110mm |
| Housing Material | ABS Engineering Plastic |
| Installation Method | Wall-mounted |
| Working Temperature | 0℃ ~ 65℃ |
| Environment Humidity | ≤85RH |
| Sensor | |
| Range | 2m, 5m |
| Dead Zone | |
| Accuracy | ±0.25% F.S |
| Temperature Compensation | Automatic Temperature Compensation |
| Dimension | Φ74mm×132mm×G1 1/2(2m Span) |
| Housing Material | ABS Engineering Plastic, Nylon |
| Electrical Interface | PG7 |
| Working Temperature | -10℃ ~ 60℃ |
| Storage Humidity | ≤80% RH Without Condensation |
| Signal Input, Output and Power Supply (Flow Totalizer) | |
| Digital Signal Input | RS485(support Modbus Protocol) |
| Current Signal Input | 4 ~ 20mA |
| Voltage Output | 12 ~ 24V DC |
| Working Voltage | 12 ~ 24V DC; 160V ~ 250V AC |
| Power Consumption | <3W |
| Analog Output Signal | 0 ~ 20mA; 4 ~ 20mA Load>300Ω; 0 ~ 5V, 0 ~ 10v |
| Wireless Transmission | Built-in GPRS wireless communication optional SMS data prompt (the acquisition system can be customized) |
Features
·The sensor is non-contact with the measured fluid, avoiding the contamination and corrosion of the sewage in the channel;
·Built-in multiple algorithms, suitable for all types standard water weir;
·Stable sensors are used for poor operating conditions;
·The temperature sensor is built into the transducer to realize real-time automatic temperature compensation;
·The blind area can be set manually to block the interference signal near the probe;
·4~20MA isolation current output, optional field bus interface;
·Control relay output, alarm relay output.
Applications
Water and sewage treatment,sewage flow in the channel with free flow condition.
Electric power and mine.
The food industry
The company
Rivers, lakes, rivers.
To enter the canal, out of the canal, etc.
Control system.
