| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | TUF-2000H |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | USD325 ~ USD495/pc |
| Packaging Details: | RS485 Output Mass Digital Air, Gas Flow Sensor Standard export carton packing or can customized |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Accuracy: | Better Than 1% | Repeatability: | 0.2% |
|---|---|---|---|
| Data Output: | RS-232/OCT Output | S Type Sensor: | 15~100mm |
| M Type Sensor: | 50~700mm | L Type Sensor: | 300~6000mm |
| Flow Rate: | 0.01/s ~±32m/s | Dimension: | 220mmx92mmx32mm |
| Weight: | 1.5kg | Product Name: | High Accuracy Handheld Ultrasonic Flow Transmitter |
handheld flow transmitter
Description of high accuracy handheld ultrasonic flow transmitter
Ultrasonic compressed air flow meter with CE approved with the capability of a full size flow meter. It is carefully designed for portability and ease of use.
Specifications of high accuracy handheld ultrasonic flow transmitter
* Better than 1% accuracy.
* 0.2% of repeatability.
* Positive / negative / net flow totaliser
* 4 line LCD display.
* Operate with clamp-on transducers.
* RS-232/OCT output
* Ni-MH Battery life for up to 12 hours continuous operation.
Features of high accuracy handheld ultrasonic flow transmitter :
| Repeatability | Better than 0.2% |
| Accuracy | ±1% of reading at rates>0.2 mps |
| Response Time | 0-999 seconds, user-configurable |
| Velocity | ±32 m/s |
| Totalizer | 7-digit totals for net, positive and negative flow respectively |
| Liquid Types | Virtually all liquids |
| Security | Setup values Modification Lockout. Access code needs unlocking |
| Display | 4x8 Chinese characters or 4x16 English letters, display instant flow, velocity, total flow, signal status |
| Signal output | Non-isolation RS232(FUJI extension protocol), one channel isolation OCT output |
| Transducers | Clamp on type transducers |
| Transducer Cord Length | Standard 2x10 meters, optional 2x 500 meters |
| Power Supply |
3 AAA Ni-H built-in batteries. When fully recharged it will last over 12 hours of operation. 100V-240VAC for the charger |
| Data Logger | Built-in data logger can store over 2000 lines of data Housing Material ABS |
| Case Size | 100x66x20mm |
| Handset Weight | 514g (1.2 lbs) with batteries |

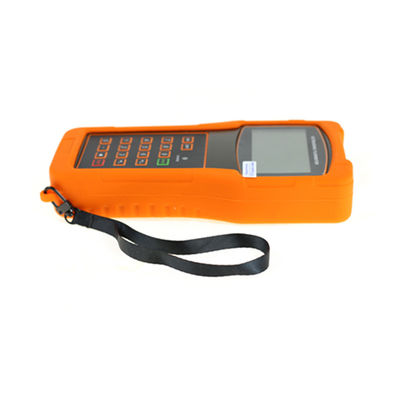

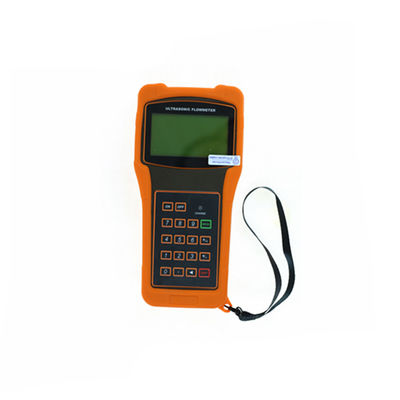

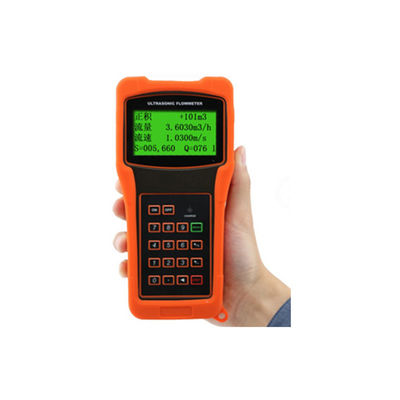

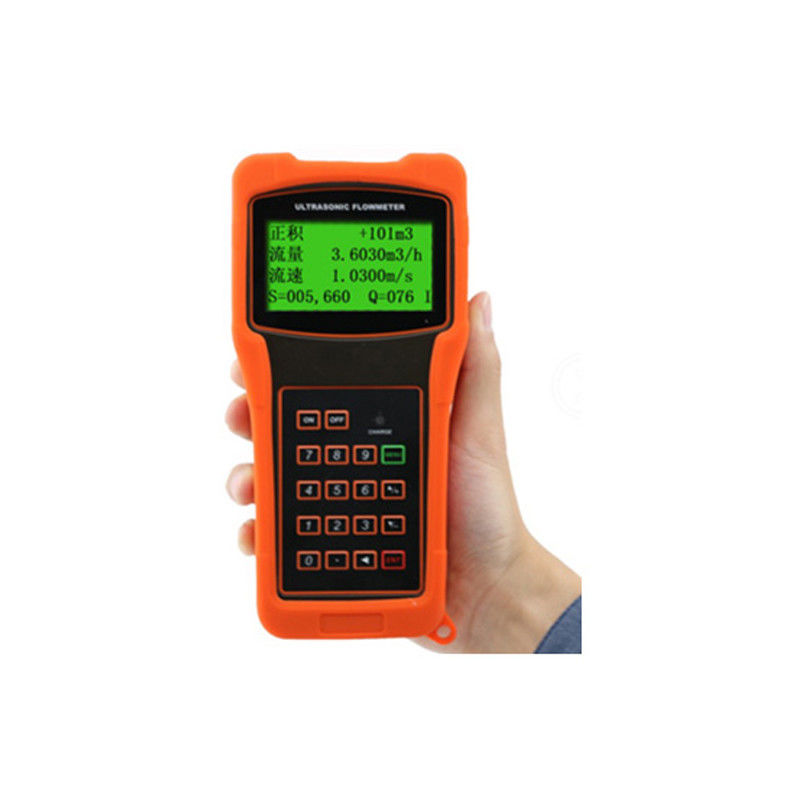

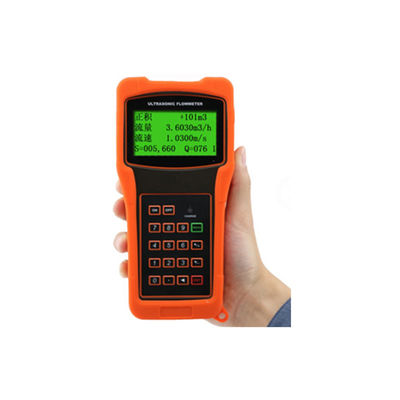

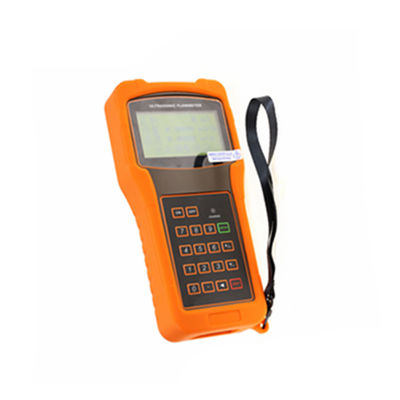

Detailed Images
FAQ
Q:How long will you reply me?
A:We will contact you as soon as possible but within 12 hours
Q: Can I get some samples?
A: Yes, Sample order is available for quality check and market test. But you have to pay the express cost.
Q: How soon can you arrange your production?
A: Once getting your product confirmation and receiving the prepayment, the production will be started immediately.
Q: What's delivery time?
A: It usually takes about 3-5 working days for small order and 10-15 days for big order.
Q:How do you control your quality ?
A: Three inspection steps(of original, production, and finished goods) + good warranty service(1 year free to change a new one without any human damage factors).
Q: What certificates do you have ?
A:ISO9000, CE, Explosion-proof certification, RoHs ready. And before the delievry of goods, quality and safety inspection certification issued by third parts also can be offered.
Q:Could I visit your factory?
A:Very welcome! Fly to Xian Yang air port. It was a big pleasure for us.
Q: What's your warranty terms?
A: We offer 12 months warranty time.
Q:can you provide OEM & Customized service?
A:Yes, OEM and ODM are both available, we have the professional R&D dept which can provide professional solutions for you.
