| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | OGT |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | USD599 ~ USD799/pc |
| Packaging Details: | RS485 Output Mass Digital Air, Gas Flow Sensor Standard export carton packing or can customized |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Product Name: | Oval Gear Diesel Oil Flow Meter | Medium Viscosity: | 2 - 200 MPa.s |
|---|---|---|---|
| Medium Temperature: | -20℃~+100℃ | Norminal Pressure: | 1.0,1.6,2.5,4.0,6.4 |
Competitive price oval gear type flow meter
Description
Oval gear type flow meter is a kind of pointer display, word wheel cumulative counting device and back to zero device of the light volumetric flow meter, widely used in various industrial areas of liquid flow control, suitable for all types of liquid measurement, such as crude oil, diesel , Gasoline, etc., with a large range, high precision, easy to use and maintenance features.

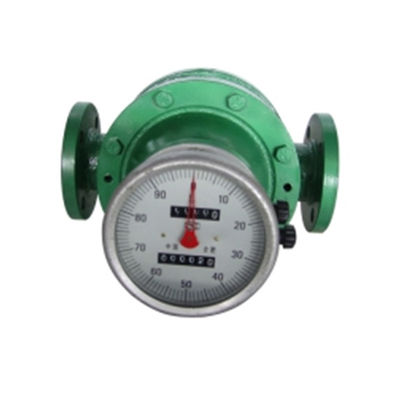

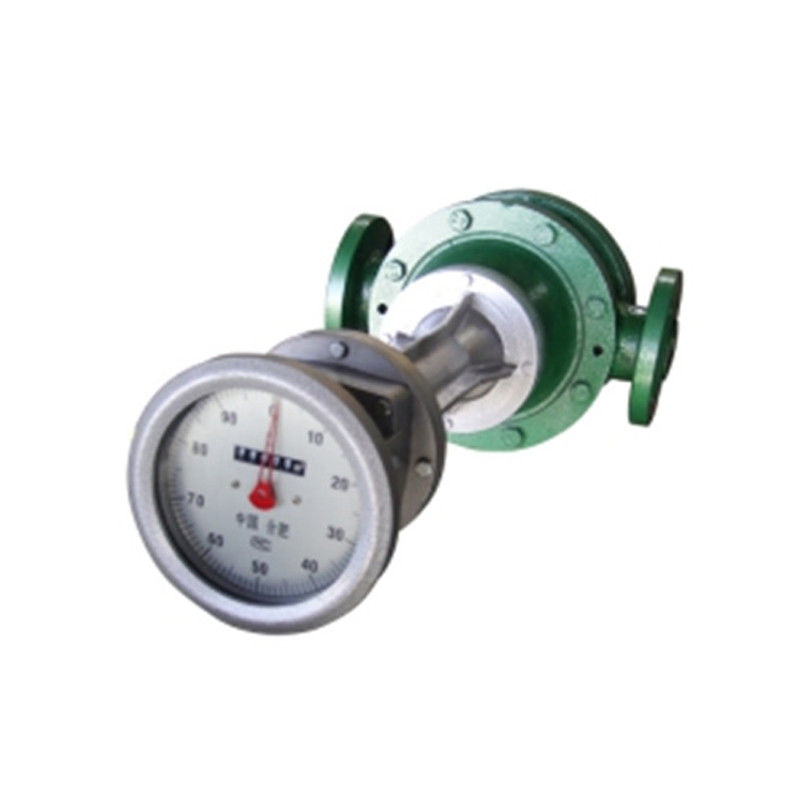

Detailed Images
Specification
| Competitive price oval gear type flow meter | |||
| Model | LC-A(cast iron) | LC-E(cast steel) | LC-B(stainless steel) |
| Nominal Pressure | 1.0, 1.6 | 2.5, 4.0, 6.4 | 1.0, 1.6 |
| Medium Viscosity | 2 ~ 200 MPa.s | ||
| Medium Temperature | -20℃ ~ +100℃ | ||
Flow Range
| Competitive price oval gear type flow meter | ||||||
| Model | LC-A(cast iron) | LC-E(cast steel) | LC-B(stainless steel) | |||
| Accuracy | 0.5 | 0.2 | 0.5 | 0.2 | 0.5 | 0.2 |
| DN10mm | 0.04 ~ 0.4 | 0.1 ~ 0.4 | 0.04 ~ 0.4 | 0.1 ~ 0.4 | 0.1 ~ 0.5 | 0.1 ~ 0.5 |
| DN15mm | 0.25 ~ 1.5 | 0.3 ~ 1.5 | 0.25 ~ 1.5 | 0.3 ~ 1.5 | 0.3 ~ 1.5 | 0.3 ~ 1.5 |
| DN20mm | 0.5 ~ 3 | 0.6 ~ 3 | 0.5 ~ 3 | 0.6 ~ 3 | 0.6 ~ 3 | 0.6 ~ 3 |
| DN25mm | 1 ~ 6 | 1.2 ~ 6 | 1 ~ 6 | 1.2 ~ 6 | 1.2 ~ 6 | 1.2 ~ 6 |
| DN40mm | 2.5 ~ 15 | 3 ~ 15 | 2.5 ~ 15 | 3 ~ 15 | 3 ~ 15 | 3 ~ 15 |
| DN50mm | 4 ~ 24 | 4.8 ~ 24 | 4 ~ 24 | 4.8 ~ 24 | 4.8 ~ 24 | 4.8 ~ 24 |
| DN65mm | 5 ~ 40 | 8 ~ 40 | 5 ~ 40 | 8 ~ 40 | 8 ~ 40 | 8 ~ 40 |
| DN80mm | 10 ~ 60 | 12 ~ 60 | 10 ~ 60 | 12 ~ 60 | 12 ~ 60 | 12 ~ 60 |
| DN100mm | 16 ~ 100 | 20 ~ 100 | 16 ~ 100 | 20 ~ 100 | 20 ~ 100 | 20 ~ 100 |
| DN150mm | 32 ~ 190 | 38 ~ 190 | 32 ~ 190 | 38 ~ 190 | 38 ~ 190 | 38 ~ 190 |
| DN200mm | 34 ~ 340 | 68 ~ 340 | 34 ~ 340 | 68 ~ 340 | 68 ~ 340 | 68 ~ 340 |
Applications
The oval gear type flow meter can be used in the oil, chemicals, medicine, food, metallurgy, electricity, transportation and other areas of liquid flow measurement.
LC-A cast iron oval gear flow meter, widely used in a variety of oil and cast iron does not corrode the measurement of liquid medium;
LC-E cast steel oval gear flow meter for high pressure, low corrosive media measurement;
LC-B stainless steel oval gear flow meter is widely used in a strong corrosive liquid medium, such as acid, alkali, salt and organic compounds such as the measurement;Oval gear flowmeter also back to zero type, high temperature type, with signal output type to choose from.
Related products
FAQ
Q:How long will you reply me?
A:We will contact you as soon as possible but within 12 hours
Q: Can I get some samples?
A: Yes, Sample order is available for quality check and market test. But you have to pay the express cost.
Q: How soon can you arrange your production?
A: Once getting your product confirmation and receiving the prepayment, the production will be started immediately.
Q: What's delivery time?
A: It usually takes about 3-5 working days for small order and 10-15 days for big order.
Q:How do you control your quality ?
A: Three inspection steps(of original, production, and finished goods) + good warranty service(1 year free to change a new one without any human damage factors).
Q: What certificates do you have ?
A:ISO9000, CE, Explosion-proof certification, RoHs ready. And before the delievry of goods, quality and safety inspection certification issued by third parts also can be offered.
Q:Could I visit your factory?
A:Very welcome! Fly to Xian Yang air port. It was a big pleasure for us.
Q: What's your warranty terms?
A: We offer 12 months warranty time.
Q:can you provide OEM & Customized service?
A:Yes, OEM and ODM are both available, we have the professional R&D dept which can provide professional solutions for you.
