| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | TUF-2000H |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | USD315 ~ USD395/pc |
| Packaging Details: | RS485 Output Mass Digital Air, Gas Flow Sensor Standard export carton packing or can customized |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Accuracy: | Better Than 1% | Weight: | 1.5kg |
|---|---|---|---|
| Output: | RS-232/OCT Output | Repeatability: | 0.2% |
| L Type Sensor: | 300~6000mm | S Type Sensor: | 15~100mm |
| M Type Sensor: | 50~700mm | Flow Rate: | 0.01/s ~±32m/s |
| Dimension: | 220mmx92mmx32mm | Product Name: | Ultrasonic Flow Meter Accuracy |

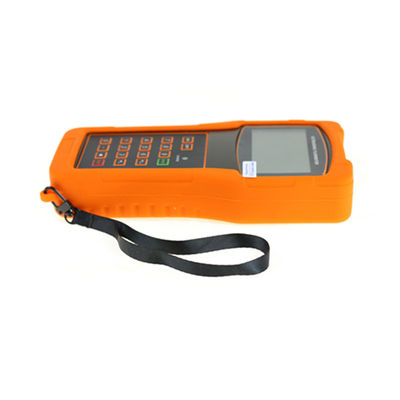

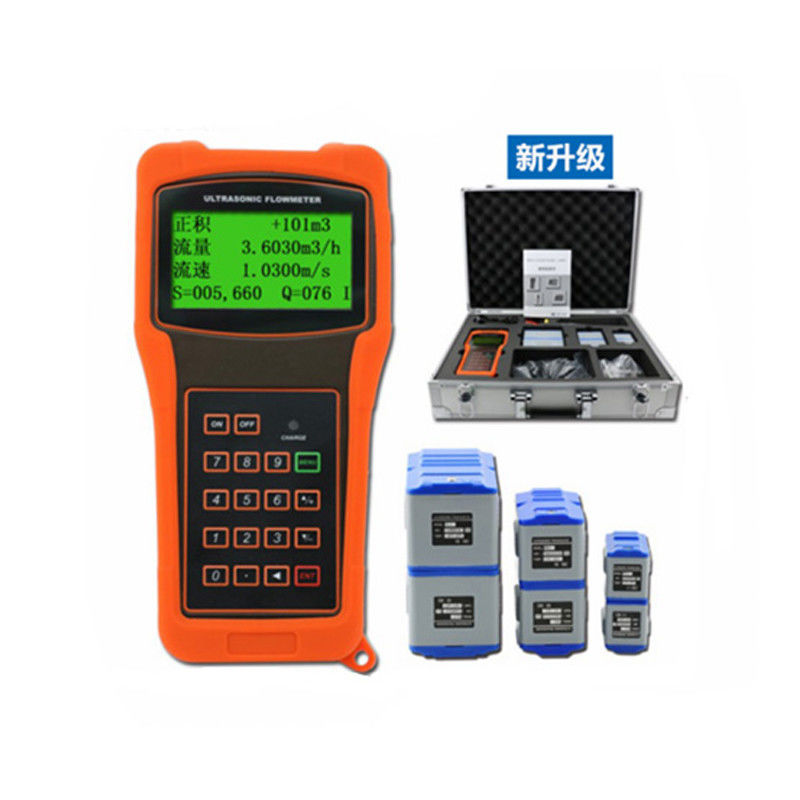

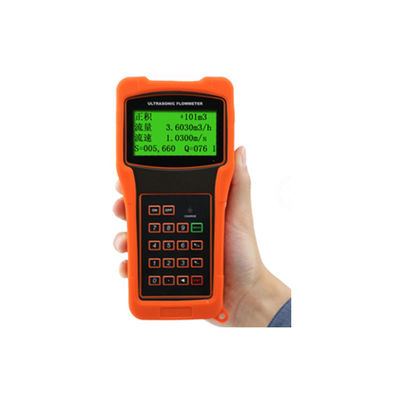

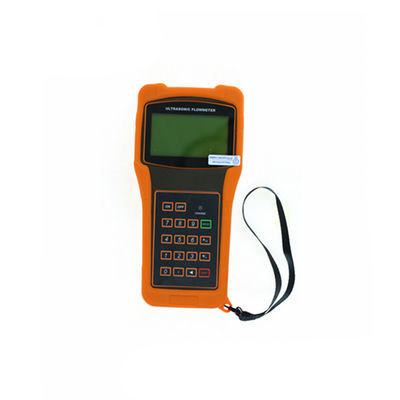

Portable ultrasonic flow meter accuracy
Description
Ultrasonic flow meter accuracy with CE approved with the capability of a full size flow meter. It is carefully designed for portability and ease of use.And the ultrasonic flow meter accuracy compressed air flow meter with CE approved with the capability of a full size flow meter. It is carefully designed for portability and ease of use.
Detailed Images
Specification
| Portable ultrasonic flow meter accuracy | |
| Repeatability | Better than 0.2% |
| Accuracy | ±1% of reading at rates>0.2 mps |
| Power supply | 3 AAA Ni-H built-in batteries. When fully recharged it will last over 12 hours of operation. 100V-240VAC for the charger |
| Response Time | 0-999 seconds, user-configurable |
| Velocity | ±32 m/s |
| Totalizer | 7-digit totals for net, positive and negative flow respectively |
| Liquid Types | Virtually all liquids |
| Security | Setup values Modification Lockout. Access code needs unlocking |
| Display | 4x8 Chinese characters or 4x16 English letters, display instant flow, velocity, total flow, signal status |
| Transducer Cord Length | Standard 2x10 meters, optional 2x 500 meters |
| Data Logger | Built-in data logger can store over 2000 lines of data Housing Material ABS |
| Case Size | 100x66x20mm |
| Handset Weight | 514g (1.2 lbs) with batteries |
| Transducers | Clamp on type transducers |
| Signal output | Non-isolation RS232(FUJI extension protocol), one channel isolation OCT output |
Features
* Better than 1% accuracy.
* 0.2% of repeatability.
* Positive / negative / net flow totaliser
* 4 line LCD display.
* Operate with clamp-on transducers.
* RS-232/OCT output
* Ni-MH Battery life for up to 12 hours continuous operation.
Applications
The portable ultrasonic water flow meter accuracy can be used to measure ultra-pure liquids,potable water,chemicals,raw sewage,reclaimed water,cooling water,river water,plant effluent,etc.
