| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | MH-MS |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | USD315 ~ USD1395/pc |
| Packaging Details: | RS485 Output Mass Digital Air, Gas Flow Sensor Standard export carton packing or can customized |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Product Name: | Handheld Ultrasonic Open Channel Flow Meter | Flow Measurement Range: | 0 ~ 93m3/s |
|---|---|---|---|
| Display: | Chinese And English Large-screen LCD, Color TFT | Working Voltage: | 3.7V Lithium Battery |
| Power Consumption: | <1.5W | Dimensions: | 200mm*94mm*40mm |
| Housing Material: | ABS Plastic | Protection Class: | IP65 |
| Explosion-proof Grade: | EXiaII BT4Gb | Storage Humidity: | ≤80%RH No Condensation |

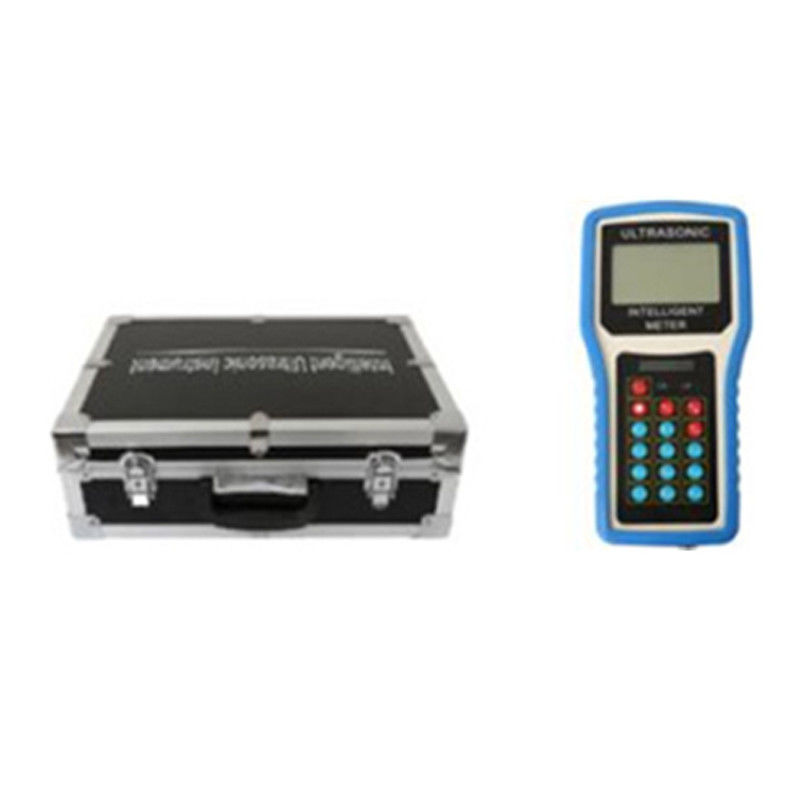

Portable handheld ultrasonic open channel flow meter
Description
MH-MS hand-held ultrasonic open channel flow meter is a kind of high precision flow meter by utilizing ultrasound measuring the Venturi channel or Parshall flume.The handheld ultrasonic open channel flow meter measure the reflected time of the sound waves when it rech the water interface, and then calculate the channel flow.The handheld ultrasonic open channel flow meter can display flow output, flow velocity, total flow and water level.
Detailed Images
Specification
| Portable hand-held ultrasonic open channel flow meter | |
| Flow Totalizer | |
| Flow Measurement Range | 0 ~93m3/s |
| Accumulated Flow Range | 9999999999Km3 |
| Flow Error | |
| Triangular Weir | 1 ~ 2% |
| Rectangular Weir | 1 ~ 4% |
| Parshall Trough | 3% |
| Display | Chinese and English Large-screen LCD, Color TFT optional |
| Digital Output | USB, Memory Card 8GB |
| Working Voltage | 3.7V Lithium Battery |
| Power Consumption | <1.5W |
| Dimensions | 200mm×94mm×40mm |
| Installation Method | Hand-held |
| Working Humidity | ≤80% RH without condensation |
| Working Temperature | 0℃ ~ 50℃ |
| Transmission/Positioning | GPRS/GPS |
| External Power Supply | 5V DC |
| Pressure | Atmospheric Pressure |
| Housing Material | ABS Plastic |
| Keyboard | Full-key Operation |
| Storage Humidity | ≤80%RH without condensation |
| Store Temperature | -40℃ ~ +70℃ |
| Sensor | |
| Measuring Range | 1m, 2m, 5m, 8m, 10m, 12m, 15m, 20m, 25m, 30m |
| Dead Zone | <0.06m-1.5m |
| Accuracy | ±1mm ~ ±0.25%F.S |
| Housing Material | ABS Plastic, Nylon |
| Protection Class | IP65 |
| Working Temperature | -10℃ ~ +60℃ |
| Temperature Compensation | Automatic |
| Emission Angle | Less than 6° |
| Frequency | 20KHz to 43.0KHz |
| Button | 16-bit Keyboard |
| Explosion-proof grade | Exiall BT4Gb (Optional) |
| Working Pressure | Atmospheric Pressure |
| Dimensions | Φ55mm×119mm×G1 1/2 (2m range); Φ92mm×198mm×M60 (5m-15m range); Φ92mm×270mm×DN80 non-standard flange (20m-30m range) |
| Mounting Interface | G1 1/2 or φ50mm round hole (1m ~ 2m range); M60×2 or φ61mm round hole (5m ~ 15m range); DN80 non-standard flange (20m ~ 30m range) |
Features
·Built-in multiple algorithms for all types standard water weir
·Stable sensor for harsh industrial applications
·Can measure a variety of physical quantities
·Can adjust the analog output
·With digital filtering and echo recognition
·Manually set fixed interference filter function
·Support Bluetooth, GPRS communication, GPS satellite positioning, etc.
·Support custom serial data format
·Support custom main display interface
·Support for custom math function operations
·Support custom sound speed (special material measurement)
·Support MiniSD card data acquisition (with card 256M)
·Support USB interface
·Standby more than 8 hours
Applications
· Water and wastewater treatment
· Power, mine
· Food Industry
· Petrochemical
· Streams, lakes, river courses
· Intake canals, outlet channels, etc.
· Control system
