| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | PTD |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | USD435 ~ USD925/pc |
| Packaging Details: | RS485 Output Mass Digital Air, Gas Flow Sensor Standard export carton packing or can customized |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Product Name: | Magnetic Hydraulic Flow Meter | Accuracy: | 1.0 |
|---|---|---|---|
| Power Supply: | 24VDC | Output: | 4-20mA |
| Nominal Pressure: | 1.0Mpa ~ 32Mpa | Explosion-proof Mark: | ExibBT4 |
| Protection Class: | IP65 | Medium Temperature: | -20℃~80℃ |
| Ambient Temperature: | -30℃~60℃ |

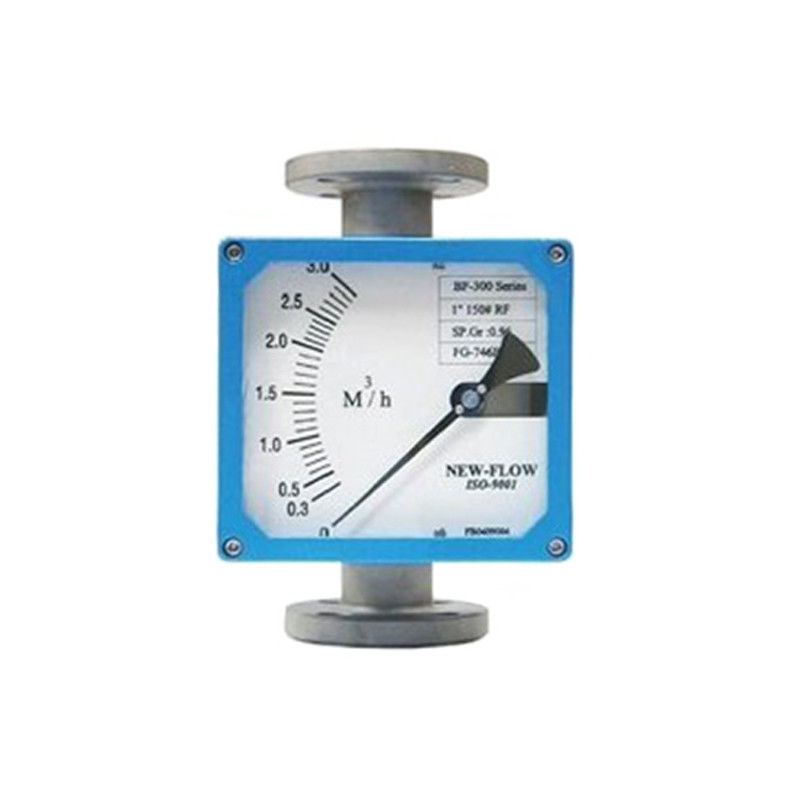

Gas/liquid magnetic hydraulic flow meter
Description
This gas/liquid magnetic hydraulic flow meter is a gas rotameter for measuring with a rota.The magnetic hydraulic flow meter first converts the flow rate to the turbine speed, and then converts the speed into an electrical signal proportional to the flow rate. This magnetic hydraulic flow meter is used to detect instantaneous flow and total accumulated flow, the output signal is frequency, easy to digitize.

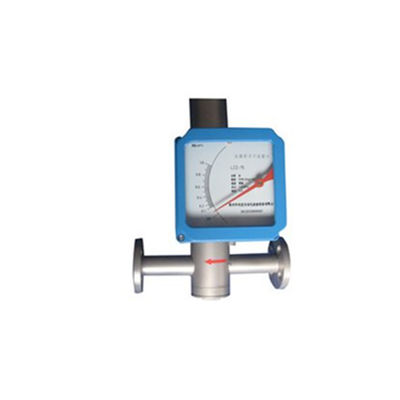

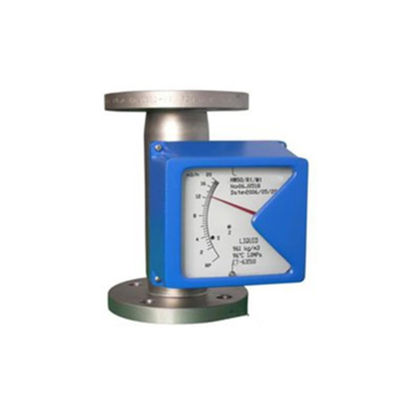

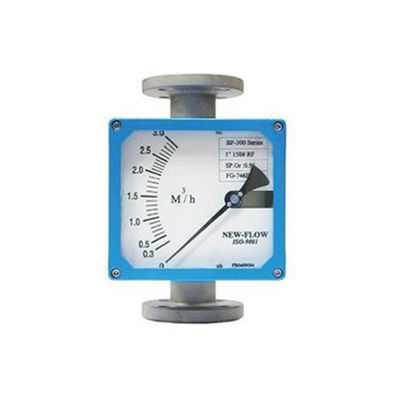

Detailed Images
Specification
| Gas/liquid magnetic hydraulic flow meter | |
| Measuring Range | |
| Water (20℃) | 1-200000I/h |
| Air(20℃, 0.1.13Mpa) | 0.03 ~ 4000M3 |
| Accuracy | |
| Standard | 1.5 |
| Special Type | 1.0 |
| Pressure Rating | |
| Standard | |
| DN15 ~ DN50 | 4.0Mpa |
| DN80 ~ DN200 | 1.6Mpa |
| Special Type | |
| DN15 ~ DN50 | 25Mpa |
| DN80 ~ DN200 | 16Mpa |
| Pressure Loss | 7Kpa ~ 70Kpa |
| Medium Viscosity | |
| DN15 | n<5mPa.s(F15.1-F15.3) n<30mPa.s(f15.4-15.8) |
| DN25 | n<30mPa.s |
| Power Supply | |
| Standard | 24V DC wire 4~20mA (12VCD ~ 32VCD) |
| Alarm Type | 24V DC Three-wire 4~20mA (18VCD ~ 28VCD) |
| AC Type | 85-265VCD 50Hz |
| Battery Type | 3.6V 7.5Ah Lithium battery, Can be used continuously for three years |
| Medium Temperature | |
| Standard | -40℃ ~ 100℃ |
| High Temperature | 100℃ ~ 450℃ |
| Turn down Ratio | |
| Standard | 10:1 |
| Special Type | 20:1 |
| Protection Class | IP65 |
| Wire | Rlmax=50·(-12)=600@24V |
| Ambient Temperature | Remote type: 40℃~185℃(LCD will not be damaged) LCD work at -30℃ ~ 80℃ |
| Alarm Output | upper or lower instantaneous flow alarm; switch alarm; relay output LCD: display instantaneous flow range: 0-50000(available with a decimal point) |
| Alarm | maximum load resistance is 200, AC Type: Maximum load resistance is 200 |
Features
·Can measure the flow is low, about vortex flow meter 1/4, suitable for trade settlement
·High accuracy, generally up to ± 1.5% R, ± 1.0% R
·Good repeatability, short-term repeatability of up to 0.05% - 0.2%
·Can achieve the integration of temperature, pressure real-time compensation, direct measurement of standard state flow
·Pressure loss is small
·Anti-vibration performance
