| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | TUF-2000H |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | USD315 ~ USD425/pc |
| Packaging Details: | RS485 Output Mass Digital Air, Gas Flow Sensor Standard export carton packing or can customized |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Accuracy: | Better Than 1% | Repeatability: | 0.2% |
|---|---|---|---|
| Data Output: | RS-232/OCT Output | S Type Sensor: | 15~100mm |
| M Type Sensor: | 50~700mm | L Type Sensor: | 300~6000mm |
| Flow Rate: | 0.01/s ~±32m/s | Dimension: | 220mmx92mmx32mm |
| Weight: | 1.5kg | Product Name: | Chinese Supplier Portable Ultrasonic Electronic Air Flow Meter |

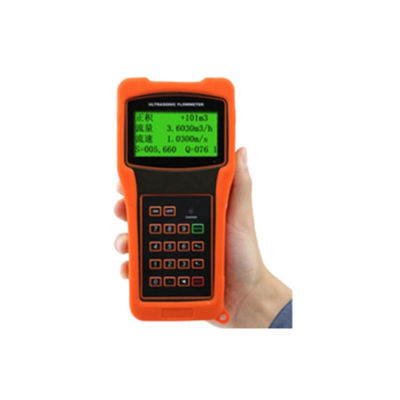

chinese supplier portable Ultrasonic electronic air flow meter
Description
The Ultrasonic Portable Liquid Water Flow Meters Milk is designed to measure the fluid velocity of liquid in a full/closed pipe.The ultrasonic sea water flow meter is built-in rechargeable battery and data-logger with non-contacting measuring.

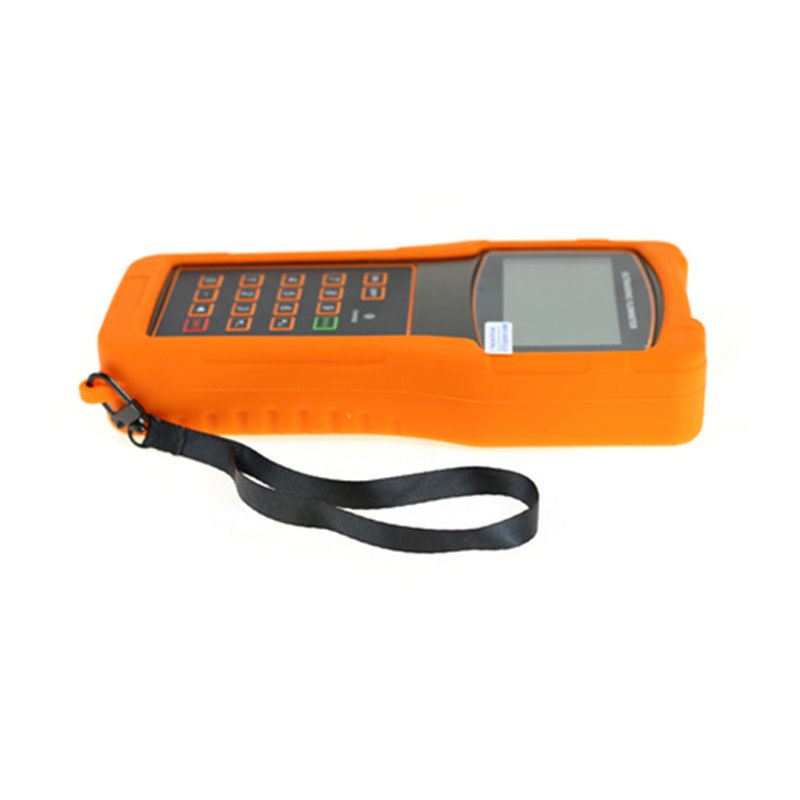

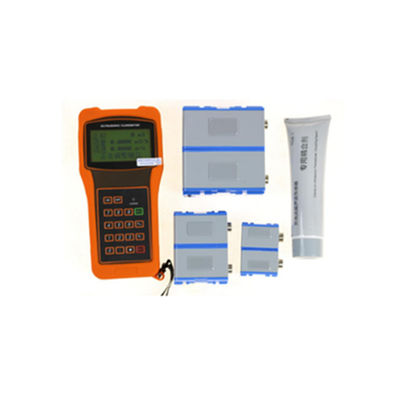

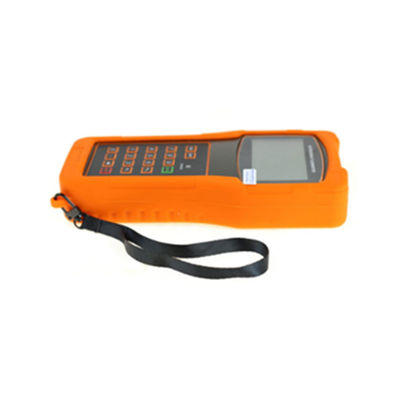

Detailed Images
Specification
| chinese supplier portable Ultrasonic electronic air flow meter | |
| Repeatability | Better than 0.2% |
| Accuracy | ±1% of reading at rates>0.2 mps |
| Linearity | 0.5% |
| Velocity | ±32 m/s |
| Totalizer | 7-digit totals for net, positive and negative flow respectively |
| Liquid Types | Virtually all liquids |
| Security | Setup values Modification Lockout. Access code needs unlocking |
| Response Time | 0-999 seconds, user-configurable |
| Signal output | Non-isolation RS232(FUJI extension protocol), one channel isolation OCT output |
| Transducer Cord Length | Standard 2x10 meters, optional 2x 500 meters |
| Power Supply | 3 AAA Ni-H Built-in Batteries, When fully Recharged it will last over 12 hours of operation, 100V-240V AC for the charger |
| Case Size | 100x66x20mm |
| Data Logger | Built-in data logger can store over 2000 lines of data Housing Material ABS |
| Handset Weight | 514g (1.2 lbs) with batteries |
Features
* 4 Line large-screen LCD
* High accuracy measuring
* Wide measuring range
* Small and light
* RS-232
Related products
FAQ
Q:How long will you reply me?
A:We will contact you as soon as possible but within 12 hours
Q: Can I get some samples?
A: Yes, Sample order is available for quality check and market test. But you have to pay the express cost.
Q: How soon can you arrange your production?
A: Once getting your product confirmation and receiving the prepayment, the production will be started immediately.
Q: What's delivery time?
A: It usually takes about 3-5 working days for small order and 10-15 days for big order.
Q:How do you control your quality ?
A: Three inspection steps(of original, production, and finished goods) + good warranty service(1 year free to change a new one without any human damage factors).
Q: What certificates do you have ?
A:ISO9000, CE, Explosion-proof certification, RoHs ready. And before the delievry of goods, quality and safety inspection certification issued by third parts also can be offered.
Q:Could I visit your factory?
A:Very welcome! Fly to Xian Yang air port. It was a big pleasure for us.
Q: What's your warranty terms?
A: We offer 12 months warranty time.
Q:can you provide OEM & Customized service?
A:Yes, OEM and ODM are both available, we have the professional R&D dept which can provide professional solutions for you.
Company Information
Shelok considers itself not only a manufacture but more conprehensively a provider of industry specific customer-oriented solutions.Our profound understanding of product application and strong technical backgrounds ensure you the best product solution and achieve a greater success.
Xi'an Shelok Instrument Technology co.,ltd is a professional R&D center and manufacture of measuring instruments.And here's a variety of products for you choice: pressure transmitters,temperature transmitters,flow transmitters,weighing instruments and so on.Our products have been made by advanced technology, with high quality, fast delivery period, which have attracted so many domestic and foreign customers.
