| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | MH-MF |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | USD215 ~ USD425/pc |
| Packaging Details: | RS485 Output Mass Digital Air, Gas Flow Sensor Standard export carton packing or can customized |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Product Name: | Open Channel Ultrasonic 4-20mA Flow Meter | Measurement Range: | 0~93m3/h |
|---|---|---|---|
| Accuracy: | ±0.25%F.S | Operated Temperature: | 0~50℃ |
| Cable Interface: | M20x1.5 | Protection Class: | IP65 |
| Signal Output: | 4-20mA /RS485/Relay | Voltage Output: | DC12v/14v |
| Environment Humidity: | ≤85RH | Dimension: | 240x184x110mm |

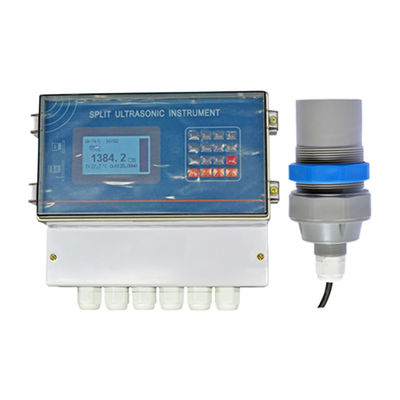

Low cost open channel ultrasonic 4-20mA flow meter
Description
The ultrasonic open channel flow meter is a kind of high-precision flow meter that uses ultrasonic to measure Venturi or Parshall trough. It measures the time that the sound wave is reflected after contacting the water surface of the channel, and then calculates the flow of the channel according to the formula. This ultrasonic open channel flow meter can Provides flow output, shows flow rate and total flow.

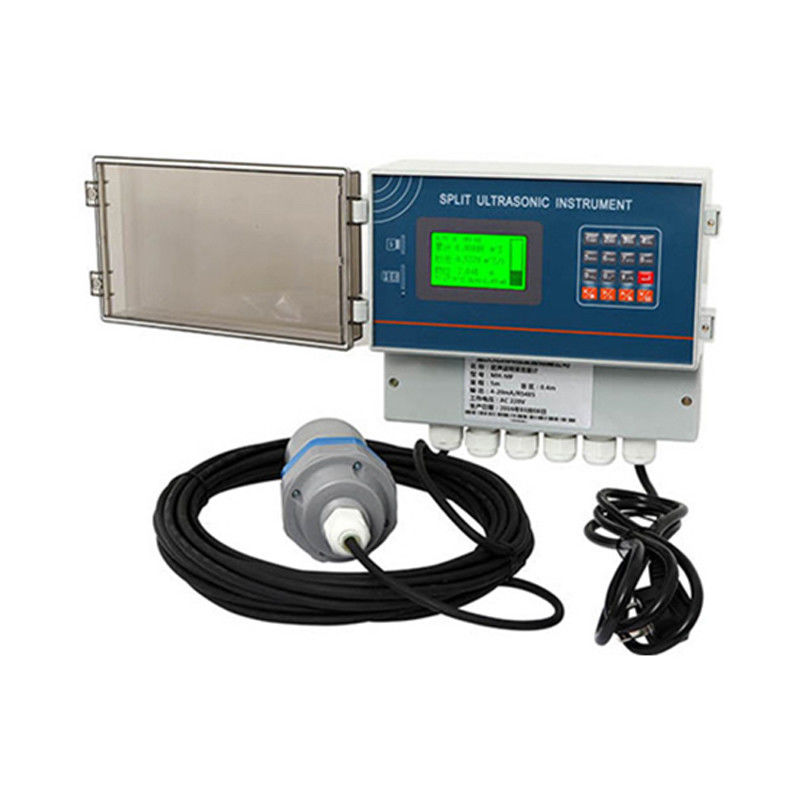

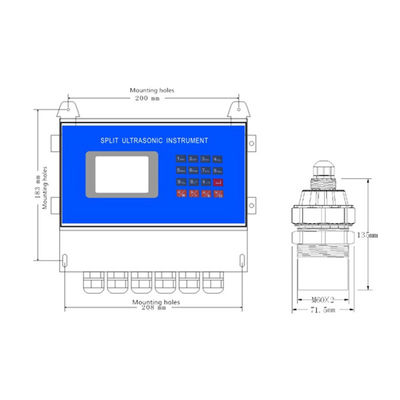

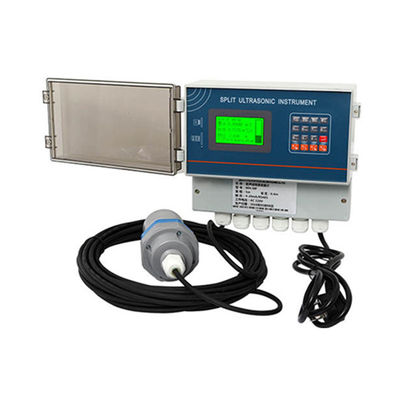

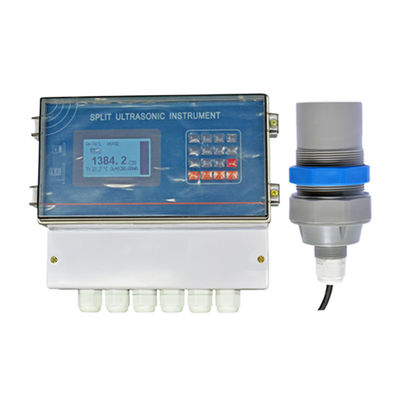

Detailed Images
Specification
| Low cost open channel ultrasonic 4-20mA flow meter | |
| Physical Properties | |
| Shell Material | ABS Plastic, Nylon |
| Transducer Material | PP |
| Connection Method | Screw connection or screw ring fixation |
| Installation Method | Thread M48×1.5 |
| Minimum Display Resolution | 1mm |
| Temperature Compensation | Automatic Temperature Compensation |
| On-site Setting | Complete with the local button |
| Calibration | Factory calibration, on-site calibration |
| Display | 2.8 inch Chinese LCD |
| Signal Input | 4~20mA; 0~20mA; 1~5V; 0~5V; RS485 |
| Output and Power Supply | |
| Voltage Output | 12V DC or 24V DC |
| Signal Output | RS485/RS232; 4~20mA; 3 channel relay |
| Relay Contact Capacity | AC: 5A/120V; DC: 10A/24V |
| Working Voltage | 24V DC or 160V~250V AC |
| Power Consumption | <5W |
| Environmental Performance | |
| Working Temperature | 0~50℃ |
| Environmental Humidity | ≤85RH |
| Flow Measurement Range | 0~92M3/S |
Features
Built-in multiple algorithms, suitable for all kinds of standard water bottles
Robust and stable sensor for harsh industrial applications
4~20MA isolated current output, optional fieldbus interface
Control relay output, alarm relay output
Applications
Water and sewage treatment:Pump room, water collection well, biochemical reaction tank, sedimentation tank, etc.
Electricity, mines:Mortar tanks, coal slurry tanks, butter tanks, stockyards or some mobile equipment controls.
Food industry:Winery, granary, food tank, etc.
Control system supporting use.
