| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | MH-GDL200/201 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | USD215 ~ USD425/pc |
| Packaging Details: | RS485 Output Mass Digital Air, Gas Flow Sensor Standard export carton packing or can customized |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Product Name: | Ultrasonic Water Flow Meter | Accuracy: | ± 1% |
|---|---|---|---|
| Medium: | Single Liquid | Flow Rate Range: | 0.01~±32 M/s |
| Repeatability: | Better Than 0.2% | Analog Output: | 0 To 20mA; 4 To 20mA |
| Digital Output: | RS485,Modbus, HART Protocol, GPRS Wireless Transmission | Power Supply: | <1W |
| Protection Class: | IP65 (host), IP65 (sensor) | Storage Humidity: | ≤80%RH No Condensation |

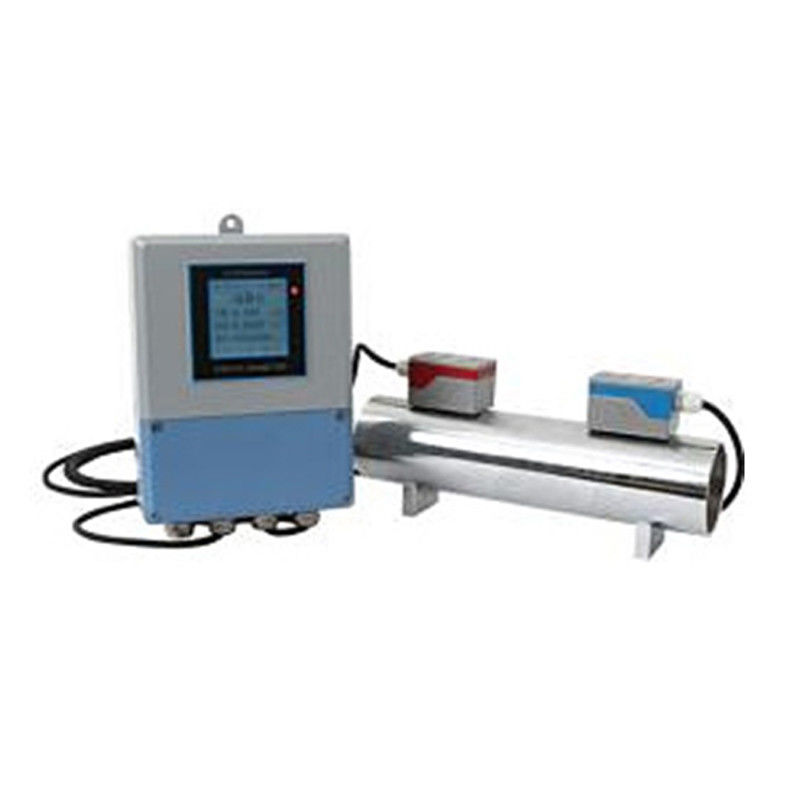

GPRS GPS ultrasonic water flow meter
Description
MH-GDL200/201 is a split ultrasonic water flow meter can measure the cold and heat liquid.This ultrasonic water flow meter uses RAM low power microcontroller- a newly developed good performance, low price, high reliability and useful ultrasonic flow meter. It supports wireless infrared remote control operation menu, isolation 4-20mA output,HART communication, and was built-in GPRS, GPS, Bluetooth and other wireless data transmission.The ultrasonic water flow meter can be built-in TFT memory card or USB storage and measure the pipeline wall thickness without a hole or full bobbin.And the ultrasonic water flow meter do have clip type and plug-in type.

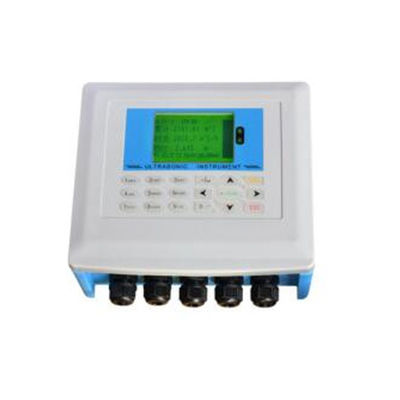

Detailed Images
Specification
| GPRS GPS ultrasonic water flow meter | |
| Performance | |
| Flow Rate Range | 0.01 ~ ±32 m/s |
| Flow Range | 0.1 ~ 99999999 m3/h |
| Diameter Nominal | DN32 ~ 10000mm |
| Accuracy | ±1% |
| Temperature Compensation | Automatic |
| Frequency | 20KHz ~ 2000KHz |
| Frequency Output | 1 ~ 2000Hz |
| Power Consumption | <1W |
| Protection Class | IP65(host), IP(sensor) Can customized higher rating |
| Operating Temperature | |
| Sensor | -30℃ ~ 100℃ |
| Host | -20℃ ~ 75℃ |
| Working Pressure | Atmospheric Pressure |
| Storage Humidity | ≤80% RH no condensation |
| Output/Input(Need to be selected when ordering) | |
| Analog Output | 0 ~ 20mA; 4 ~ 20mA |
| Analog Input | Four 4~20mA Analog Inputs |
| Digital Output | RS485(support Modbus), M_bus, Hart Protocol, GPRS Wireless Transmission |
| Storage Mode | EEPORM, TFT memory card, USB storage |
| Pulse Output | Isolated Programmable OCT Output |
| Operating Voltage | Isolated 12V ~ 36V DC or 180 ~ 250V AC |
| Frequency Output | 1 ~ 2000Hz |
| Power Consumption | <1W |
| Physical Characteristics | |
| Incoming Cable | 5m×2 (Optional) |
| Electrical Interface | M20×1.5 (4 Groups) |
| Housing Material | cast aluminum/ABS (host), Sensor (ABS) |
| Dimension | 214mm×162mm×67mm/230mm×210mm×129mm |
| Installation Method | Wall mount (host), Magnetic chuck and hoop (sensor) |
| Key Mode | Wireless infrared remote control operation menu |
| Explosion-proof grade | ExdIIBT6Gb (selected when ordering) |
Features
·HART protocol
·Bluetooth, GPRS, GPS communication, etc. (selected when ordering)
·Custom serial data format (selected when ordering)
·Storage mode can choose EEPORM, TFT memory card or USB storage (optional when ordering)
·Non-open hole and non-full pipe measurement function (initiate in the world)
·Cold calorimeter measurement
·Can modify the range according to the actual needs of users online
·Suitable for strong corrosion, highly toxic, high pressure environment
Applications
This ultrasonic water flow meter can be used to measure the flow measurement of a variety of pipe.The measuring medium include water, sea water, sewage, alcohol and other single and stable liquid.And the ultrasonic water flow meter can measure the pipe made by steel, stainless steel, cast iron, PVC, glass and steel and other uniform and dense pipe.
The ultrasonic water flow meter can be widely used in various areas :
·Heating, power generation
·Metallurgy, mining
·Petroleum, chemical industry
·Water Resources and Water Resources
·Food and Medicine
·Water and Drainage
·Energy-saving monitoring, water-saving management
·Papermaking, hull manufacturing industry
·Heat measurement, heat balance
·Flow inspection, flow tracking and acquisition
Dimension
