| Place of Origin: | Made In China |
| Brand Name: | NanCon |
| Certification: | CE |
| Model Number: | MH-MP |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | USD215 ~ USD495/pc |
| Packaging Details: | RS485 Output Mass Digital Air, Gas Flow Sensor Standard export carton packing or can customized |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Product Name: | Ultrasonic Open Channel Flow Meter | Measuring Range: | 0~93m3/h |
|---|---|---|---|
| Working Temperature: | 0~50℃ | Accuracy: | ±0.25%F.S |
| Dimension: | 185 X 256 X 60mm | Working Pressure: | Ambient Pressure |
| Signal Output: | 4~20mA;0~20mA;1~5V;0~5 | Power Consumption: | < 5W |
| Voltage Output: | DC 12V Or 24V | Weight: | 2kg |

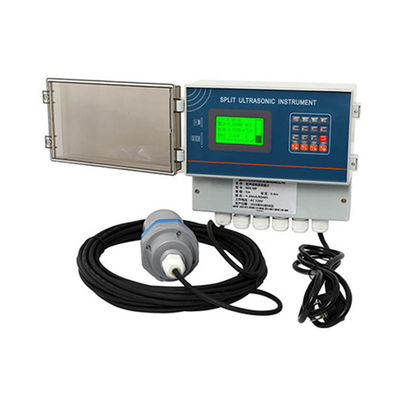

Wall-mounted ultrasonic open channel flow meter
Description
Wall-mounted ultrasonic open channel flow meter is a kind of high precision ultrasonic flow meter,with the venturi channel and trough bashir.The ultrasonic open channel flow meter measuring the reflected time when the sound waves was exposured to channel surface, and then the flow meter will calculate the channel flow.This flow meter can show the flow output, the instantaneous flow,total flow and liquid level height.

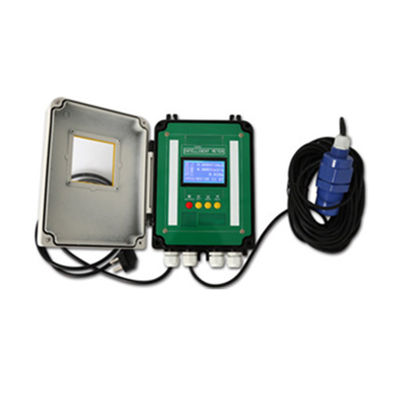

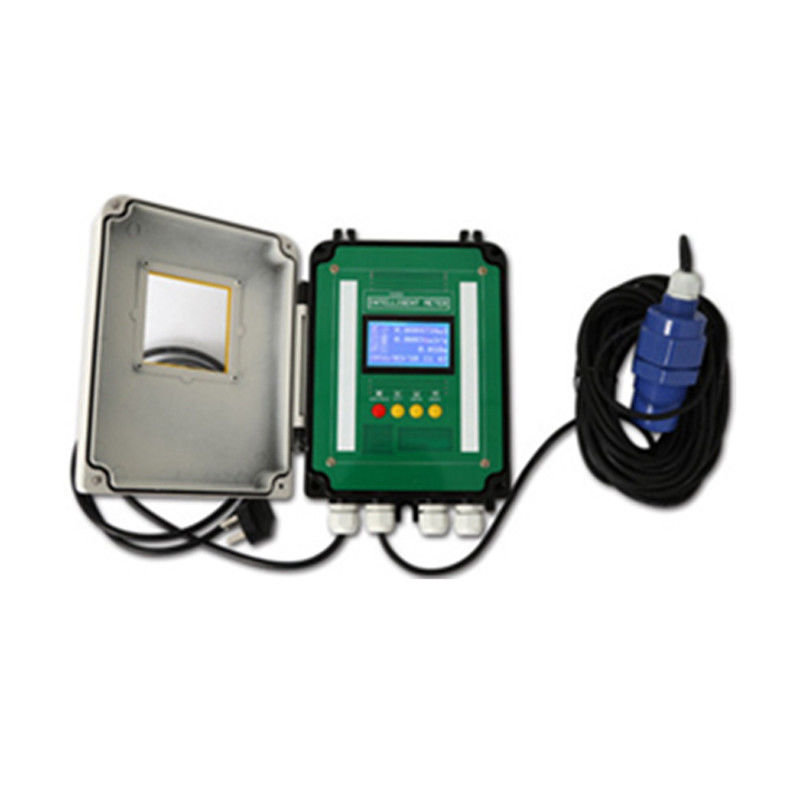

Detailed Images
Specification
| Wall-mounted ultrasonic open channel flow meter | |
| OUTPUT AND POWER SUPPLY | |
| Voltage Output | 12V/24V DC |
| Signal Output | RS485/RS232; 4~20mA; 2 Channel Relay |
| Relay Contact Capacity | 5A 120V AC; 10A 24V DC |
| Working Voltage | 160V~250V AC |
| Power Consumption | <5W |
| PHYSICAL FEATURES | |
| Dimensions | 185×256×60mm |
| Material | Cast Aluminum |
| Weight | 2KGS |
| Calibration | Factory Calibration, On-site calibration |
| Monitor | 2.8 inch Chinese LCD |
| Display | Liquid level height, Instantaneous flow, Cumulative flow, Time flow, Daily flow, Weekly flow, Monthly flow, Annual day, Battery power (Optional) |
| Signal Input | 4 ~ 20mA; 0~20mA; 1~5V, 0~5V, RS485 |
| Button | 4 Touch Keys |
| ENVIRONMENTAL PERFORMANCE | |
| Working Temperature | 0~50℃ |
| Ambient Humidity | No more than 85RH |
| Liquid Gauge Lead | Up to 1000 meters, user self-matching |
| Flow Measurement Range | 0~93m3/s(Related to determination of the size of the weir tank |
| Cumulative Flow Range | 9999999999KM3 |
| Suitable Weir Groove Type | Triangular Weir, Rectangular Weir, etc. |
| Flow Error | Triangular Weir for use: 1~2% with rectangular weir: 1~4% with bacher slot: 3% |
Features
Suitable for various standard water weir.
Stable sensors can be used in bad working environment.
4~20MA isolation current output, optional fieldbus interface.
Control relay output, alarm relay output.
Selection Guide
Applications
The intake canal and the outlet canal for water and sewage treatment.
Related products
FAQ
Q:How long will you reply me?
A:We will contact you as soon as possible but within 12 hours
Q: Can I get some samples?
A: Yes, Sample order is available for quality check and market test. But you have to pay the express cost.
Q: How soon can you arrange your production?
A: Once getting your product confirmation and receiving the prepayment, the production will be started immediately.
Q: What's delivery time?
A: It usually takes about 3-5 working days for small order and 10-15 days for big order.
Q:How do you control your quality ?
A: Three inspection steps(of original, production, and finished goods) + good warranty service(1 year free to change a new one without any human damage factors).
Q: What certificates do you have ?
A:ISO9000, CE, Explosion-proof certification, RoHs ready. And before the delievry of goods, quality and safety inspection certification issued by third parts also can be offered.
Q:Could I visit your factory?
A:Very welcome! Fly to Xian Yang air port. It was a big pleasure for us.
Q: What's your warranty terms?
A: We offer 12 months warranty time.
Q:can you provide OEM & Customized service?
A:Yes, OEM and ODM are both available, we have the professional R&D dept which can provide professional solutions for you.
Company Information
Shelok considers itself not only a manufacture but more conprehensively a provider of industry specific customer-oriented solutions.Our profound understanding of product application and strong technical backgrounds ensure you the best product solution and achieve a greater success.
Xi'an Shelok Instrument Technology co.,ltd is a professional R&D center and manufacture of measuring instruments.And here's a variety of products for you choice: pressure transmitters,temperature transmitters,flow transmitters,weighing instruments and so on.Our products have been made by advanced technology, with high quality, fast delivery period, which have attracted so many domestic and foreign customers.
