| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | LWGY Series |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | USD350 ~ USD650/pc |
| Packaging Details: | RS485 Output Mass Digital Air, Gas Flow Sensor Standard export carton packing or can customized |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Product Name: | Turbine Food Grade Flow Meter | Accuracy: | 1.0~0.5 |
|---|---|---|---|
| Signal Output: | Pulse Or 4-20mA | Material: | Stainless Steel |
| Medium Temperature: | -20℃~120℃ | Explosion: | ExdIIBT6 Or ExiaIICT4 |
| Instrument Pass Through: | DN4~DN250 | Ambient Temperature: | -30℃~60℃ |
| Applicable Medium: | Liquid | Protection Class: | IP60,IP65 |
High Precision LPG and Gas Votex Flow Meter
Description
Vortex flowmeter is based on Karman vortex principle research and production, mainly for industrial pipeline fluid flow measurement, such as gas, liquid, vapor and other media. It is characterized by small pressure loss, large measuring range and high accuracy. It is hardly affected by parameters such as fluid density, pressure, temperature, viscosity and so on. No moving mechanical parts, high reliability, low maintenance. Instrument parameters can be long-term stability. Vortex flowmeter using piezoelectric stress sensor, high reliability, in -20 ℃ ~ +250 ℃ working temperature range. There are analog standard signal, there are digital pulse signal output, easy to use with the computer and other digital systems, is a more advanced and ideal measurement instruments.

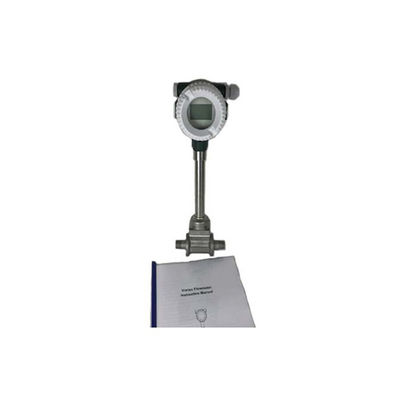

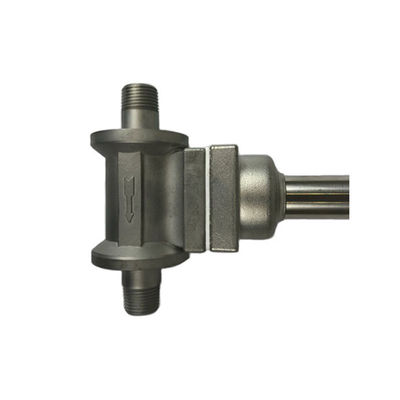

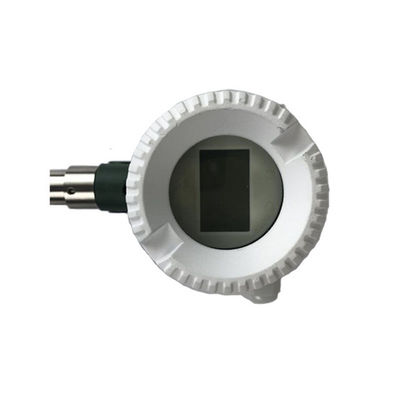

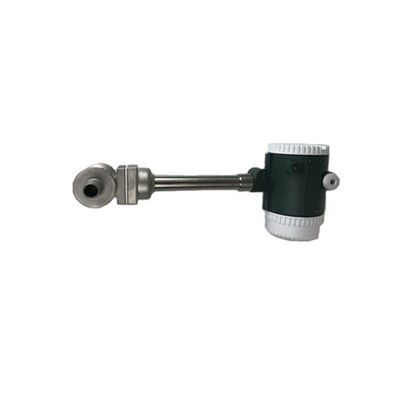

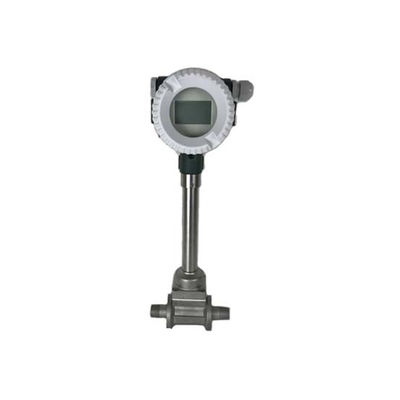

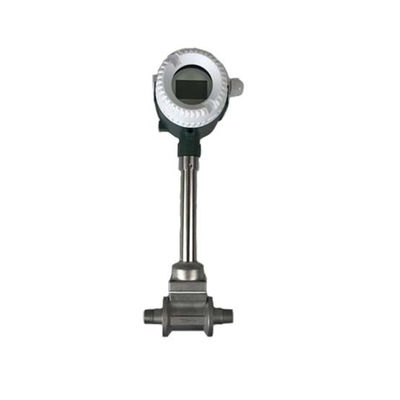

Detailed Images
Specification
| High Precision LPG and Gas Votex Flow Meter | |
| Nominal diameter(mm) | 25,40,50,65,80,100,125,150,200,250,300,(300~1000 Insert type) |
| Nominal pressure (MPa) | DN25-DN200 4.0(>4.0 Supply agreement),DN250-DN300 1.6(>1.6 Supply agreement) |
| Medium temperature (C) | Piezoelectric type:-40~260,-40~320;Capacitance type : -40~300, -40~400,-40~450(Supply agreement) |
| Body material | 1Cr18Ni9Ti,(Other materials supply agreement) |
| Allowable vibration acceleration | Piezoelectric type:0.2g Capacitance type:1.0~2.0g |
| Accuracy | ±1%R,±1.5%R,±1FS;Insert type:±2.5%R,±2.5%FS |
| Range of | 1:6~1:30 |
| Power supply voltage | Sensor:+12V DC,+24V DC;Transmitter:+12V DC ,+24V DC;Battery type:3.6V Battery |
| Output signal | Square wave pulse ( not including the battery power supply type ): high level or low level5V,1V; current: 4~ 20mA |
| Pressure loss coefficient | In line with the JB / T9249standard Cd = 2.4 |
| Explosion proof marks | Intrinsic safety type: Exd IA CT2-T5 flameproof type: Exd CT2-T5 |
| Protection grade | The ordinary IP65 diving type IP68 |
| Environmental conditions | Temperature - 20~ 55,5% ~ 90% of relative humidity, atmospheric pressure is 86 ~ 106kPa |
| Applicable medium | Gas, liquid, steam |
| Transmission distance | Three wire system pulse output type: < 300m, two line standard current output type (4 ~ 20mA ): load resistance less than 750ohm |
Features
1, the body temperature and pressure compensation at the same time integrated compensation function, the standard volume flow measurement of fluid or standard mass flow.
2, all intelligent, digital circuit design, can automatically compensate for the measured fluid density or standard volume calculation.
3, a new digital filtering and correction of the flow measurement more accurate and reliable.
4, battery-powered without external power supply can work continuously for more than two years.
5, a new lattice LCD characters, the use of more convenient operation.
Applications
Vortex flowmeter is mainly used for industrial pipeline fluid flow measurement, such as gas, liquid, vapor and other media
Selection Guide
Related products
FAQ
Q:How long will you reply me?
A:We will contact you as soon as possible but within 12 hours
Q: Can I get some samples?
A: Yes, Sample order is available for quality check and market test. But you have to pay the express cost.
Q: How soon can you arrange your production?
A: Once getting your product confirmation and receiving the prepayment, the production will be started immediately.
Q: What's delivery time?
A: It usually takes about 3-5 working days for small order and 10-15 days for big order.
Q:How do you control your quality ?
A: Three inspection steps(of original, production, and finished goods) + good warranty service(1 year free to change a new one without any human damage factors).
Q: What certificates do you have ?
A:ISO9000, CE, Explosion-proof certification, RoHs ready. And before the delievry of goods, quality and safety inspection certification issued by third parts also can be offered.
Q:Could I visit your factory?
A:Very welcome! Fly to Xian Yang air port. It was a big pleasure for us.
Q: What's your warranty terms?
A: We offer 12 months warranty time.
Q:can you provide OEM & Customized service?
A:Yes, OEM and ODM are both available, we have the professional R&D dept which can provide professional solutions for you.
