| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | LC |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | USD305 ~ USD515/pc |
| Packaging Details: | RS485 Output Mass Digital Air, Gas Flow Sensor Standard export carton packing or can customized |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Product Name: | Oval Gear Flow Meter Bitumen Flow Meter | Medium Viscosity: | 2 - 200 MPa.s |
|---|---|---|---|
| Medium Temperature: | -20℃~+100℃ | Norminal Pressure: | 1.0,1.6,2.5,4.0,6.4 |

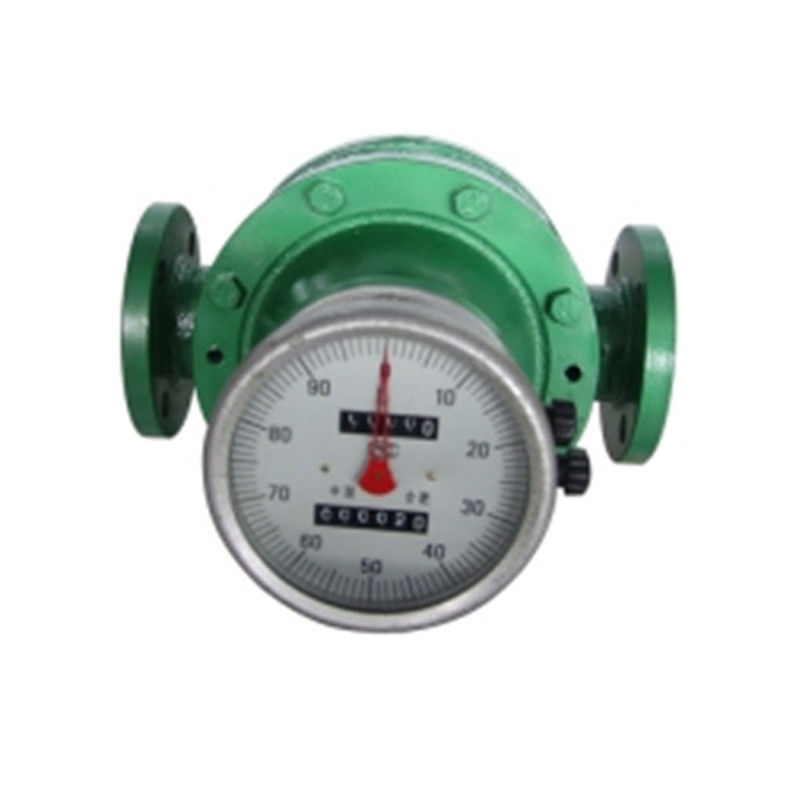

Cheap oval gear flow meter bitumen flow meter
Description
Oval gear bitumen flowmeter is a kind of pointer display, word wheel cumulative counting device and back to zero device of the light volumetric flow meter, widely used in various industrial areas of liquid flow control, suitable for all types of liquid measurement, such as crude oil, diesel , Gasoline, etc., with a large range, high precision, easy to use and maintenance features.

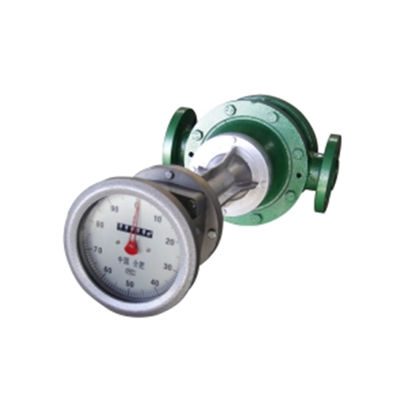

Detailed Images
Specification
| Cheap oval gear flow meter bitumen flow meter | |||
| Model No | LC-A(cast iron) | LC-E(cast steel) | LC-B(stainless steel) |
| Nominal Pressure | 1.0; 1.6 | 2.5; 4.0; 6.4 | 1.0; 1.6 |
| Medium Visconsity | 2 ~ 200mPa.s | ||
| Medium Temperature | -20℃ ~ +100℃ | ||
Flow Range Selection Guide
| Model No. | LC-A(cast iron) | LC-E(cast steel) | LC-B(stainless steel) | |||
| Accuracy | 0.5 | 0.2 | 0.5 | 0.2 | 0.5 | 0.2 |
| DN10mm | 0.04~0.4 | 0.1~0.4 | 0.04~0.4 | 0.1~0.4 | 0.1~0.5 | 0.1~0.5 |
| DN15mm | 0.25~1.5 | 0.3~1.5 | 0.25~1.5 | 0.3~1.5 | 0.3~1.5 | 0.3~1.5 |
| DN20mm | 0.5~3 | 0.6~3 | 0.5~3 | 0.6~3 | 0.6~3 | 0.6~3 |
| DN25mm | 1~6 | 1.2~6 | 1~6 | 1.2~6 | 1.2~6 | 1.2~6 |
| DN40mm | 2.5~15 | 3~15 | 2.5~15 | 3~15 | 3~15 | 3~15 |
| DN50mm | 4~24 | 4.8~24 | 4~24 | 4.8~24 | 4.8~24 | 4.8~24 |
| DN65mm | 5~40 | 8~40 | 5~40 | 8~40 | 8~40 | 8~40 |
| DN80mm | 10~60 | 12~60 | 10~60 | 12~60 | 12~60 | 12~60 |
| DN100mm | 16~100 | 20~100 | 16~100 | 20~100 | 20~100 | 20~100 |
| DN150mm | 32~190 | 38~190 | 32~190 | 38~190 | 38~190 | 38~190 |
| DN200mm | 34~340 | 68~340 | 34~340 | 68~340 | 68~340 | 68~340 |
Applications
The oval gear bitumen flow meter can be used in the oil, chemicals, medicine, food, metallurgy, electricity, transportation and other areas of liquid flow measurement.
LC-A cast iron oval gear flow meter, widely used in a variety of oil and cast iron does not corrode the measurement of liquid medium;
LC-E cast steel oval gear flow meter for high pressure, low corrosive media measurement;
LC-B stainless steel oval gear flow meter is widely used in a strong corrosive liquid medium, such as acid, alkali, salt and organic compounds such as the measurement;Oval gear flowmeter also back to zero type, high temperature type, with signal output type to choose from.
