| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | LWGY |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | USD200 ~ USD600/pc |
| Packaging Details: | RS485 Output Mass Digital Air, Gas Flow Sensor Standard export carton packing or can customized |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Product Name: | Liquid Turbine Flow Meter | Diameter: | DN4-250mm |
|---|---|---|---|
| Range Ratio: | 1:10;1:15;1:20 | Sensor Material: | 304SS,316(L) |
| Medium Temperature: | -20~120℃ | Atmospheric Pressure: | 86Kpa~106Kpa |
| Signal Output: | Pulse,4~20mA | Communication: | RS485,HART |
| Power Supply: | 24VDC 5% | Explosion-proof Grade: | ExiaIICT4 Or ExdIIBT6 |

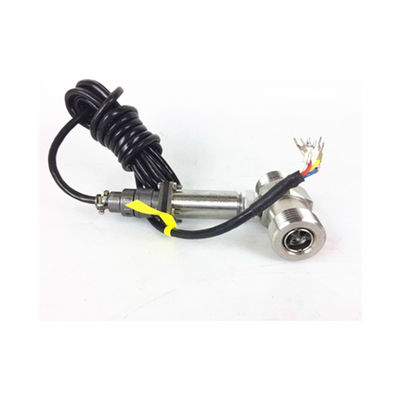

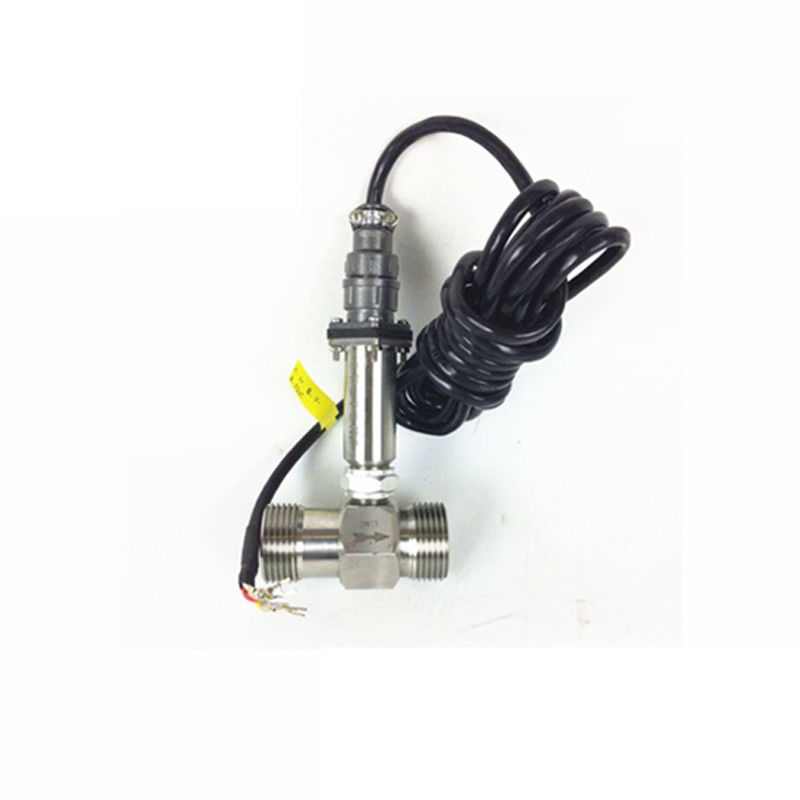

SS DN15 liquid turbine flow meter without display
Description
LWGY series turbine flow meter adopt advanced technical of abroad flow instrument, characteristic of simple structure, high accuracy, good repeatability, convenient installation/maintenance etc. This flow meter is mainly used to measure liquid flowrate of closed pipeline, the liquid must without no fiber, particles and other impurities, can not corrosive with 1Cr18Ni9Ti, 2Cr13, corundum Al2O3, and cemented carbide, the kinematic viscosity less than 5×10-6m²/s under the working temperature.

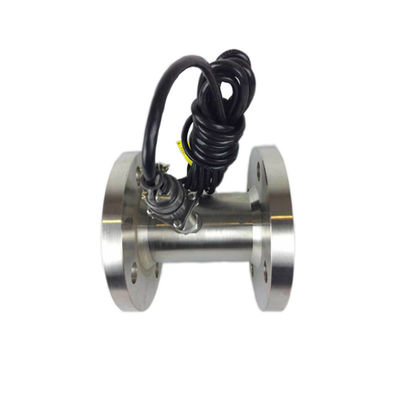

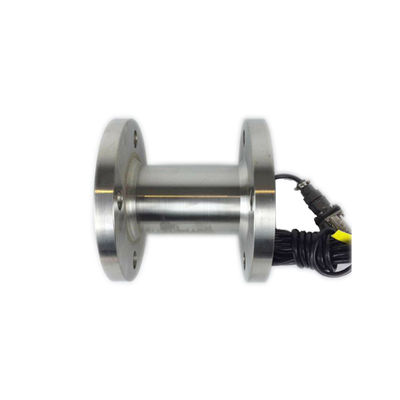

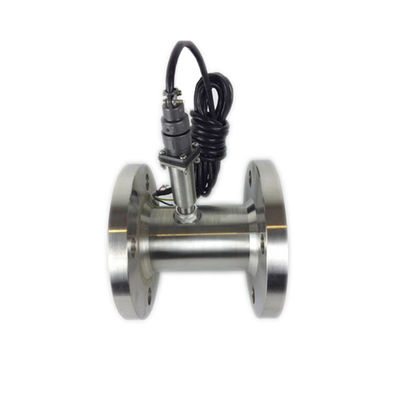

Detailed Images
Features
Good accuracy, usually can reach to ±1%R,±0.5%R, high accuracy can reach to ±0.2%R;
Good repeatability, short-term repeatability can reach to 0.05%~0.2%;
Output pulse frequency signal, it is suitable for metering and connected to the computer, no zero drift, strong anti-jamming capability;
Can get very high frequency signal(3~4kHz),Strong signal definition;
Large rangeability, large and middle size can reach to 1:20,small size is 1:10;
Simple structure,convenient installation/maintenance, flow capacity;
For high pressure measurement, idon't have to open hole on instrument, easy to made into high pressure type instrument.
Specification
| Standard | Turbine flow sensor(JB/T9246-1999) |
| DN(mm) | 4,6,10,15,20,25,32,40,50,65,80,100,150 |
| Accuracy | ±1%R,±0.5%R,±0.2%R(need to customized) |
| Range ratio | 1:10;1:15;1:20 |
| Sensor material | 304SS,316(L) |
| Working condition |
Medium temperature:-20℃~+120℃ Environment temperature:-20℃~+60℃ Atmospheric pressure:86Kpa~106Kpa |
| Signal output | Pulse signal,4~20mA |
| Communication data | RS485,HART |
| Power supply |
External power:+24VDC±15%, ripple wave≤±5%, suitable for 4-20mAoutput, Pulse signal,RS485 Internal power:3.0V10AH lithium battery, battery voltage is 2.0V~3.0V. |
| Connection | Basic:Hausman joint or take three core cable;Explosion-proof type: M20*1.5F |
| Explosion-proof grade | ExiaIICT4 or ExdIIBT6 |
Flow range
Drawings
Installation size
