| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | EFMR |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | USD265 ~ USD950/pc |
| Packaging Details: | RS485 Output Mass Digital Air, Gas Flow Sensor Standard export carton packing or can customized |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Product Name: | Insertion Dn500 Dn1200 Integrated Electromagnetic Flow Meter | Nominal Diameter: | DN100-3000mm |
|---|---|---|---|
| Working Pressure: | ≤1.6MPa | Working Temperature: | ≤70 °C |
| Conductivity Range: | ≥50μs/cm | Upper Flow Rate Range: | Adjustable From 1 To 10 M/s |
| Medium Type: | Liquid | Output Signal: | Current, Pulse |
| Electrode Materials: | 304, 304L, 316, 316L, Hastelloy, Ti | Accuracy: | 1.5% |

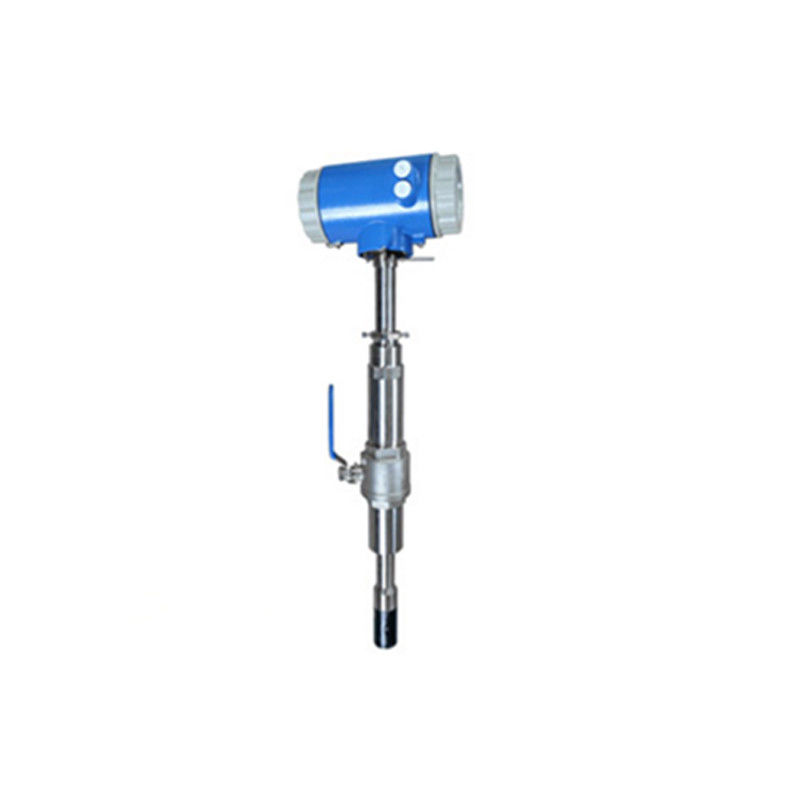

Insertion type dn500 dn1200 integrated sanitary clamp electromagnetic flow meter transmitter china
Description
This battery powered electromagnetic flow meter is mainly used to measure various acid, alkali, salt solution, pulp, mud and other conductive liquid, or liquid mixed with liquids and solids.And the digital integrated electromagnetic flow meter converts the liquids into 4-20mA current signal output.
Detailed images
Features
The plug-in electromagnetic flowmeter has the characteristics of a ducted electromagnetic flowmeter and a plug-in flowmeter. These features include:
Measurements are not affected by changes in fluid density, viscosity, temperature, pressure, and conductivity.
Adopt advanced excitation technology, low power consumption, stable zero point, strong anti-interference ability and good reliability.
No additional pressure loss, requiring a small length of straight pipe.
The flow measurement range is wide, and the full-scale flow rate can be continuously set arbitrarily from 1.0m/s to 10.0m/s, and the output signal is completely linear with the flow rate (flow rate).
The conversion display adopts 16-bit high-performance microprocessor, 2×16 LCD display, convenient parameter setting and reliable programming.
The flowmeter is a two-way measurement system with three integrators that display the total amount of forward flow, reverse flow, and the difference between positive and negative flow.
The conversion display has multiple outputs: current, pulse, digital communication, HART.
Suitable for large diameter pipes, DN300-3000mm.
The sensor body and electrodes are available in a variety of materials.
The utility model has the advantages of small volume, light weight, convenient transportation and installation, and can realize continuous flow maintenance and dis-assembly.
The price is cheap, the larger the installation diameter, the higher the performance price ratio.
Specification
| Pipe nominal diameter | DN100-3000mm | Working pressure | ≤1.6MPa |
| Working temperature | ≤70 °C | Accuracy | ±1.5% |
| Upper flow rate range | adjustable from 1 to 10 m/s | Electrode material | 304, 304L, 316, 316L, Hastelloy, Ti, etc |
| Medium conductivity | ≥50μs/cm | Maximum distance | ≤ 50m |
| Cable | RVVP type double core shielded cable or STT3200 type four core three shielded cable | ||
| Please refer to the instruction manual of our electromagnetic flow meter for the function of the conversion display. | |||
Flow range
|
DN(mm) |
0.5(m/s) | 1.0(m/s) | 1.5(m/s) | 2.0(m/s) | 2.5(m/s) | 3.0(m/s) |
| 300 | 127.2 | 254.4 | 381.6 | 508.8 | 636.0 | 763.2 |
| 350 | 173.1 | 346.2 | 519.3 | 692.4 | 865.5 | 1038.6 |
| 400 | 226.1 | 452.2 | 678.3 | 904.4 | 1130.5 | 1356.6 |
| 450 | 286.2 | 572.3 | 858.3 | 1144.6 | 1430.8 | 2574.9 |
| 500 | 353.3 | 706.5 | 1059.8 | 1413.2 | 1766.5 | 2119.8 |
| 600 | 508.7 | 1017.0 | 1526.0 | 2034.0 | 2544.0 | 3052.0 |
| 700 | 682.4 | 1385.0 | 2047.0 | 2730.0 | 3412.0 | 4094.0 |
| 800 | 904.3 | 1808.0 | 2713.0 | 3617.0 | 4522.0 | 5126.0 |
| 900 | 1145.0 | 2290.0 | 3435.0 | 4580.0 | 5725.0 | 6870.0 |
| 1000 | 1413.0 | 2826.0 | 4239.0 | 5652.0 | 7065.0 | 8478.0 |
| 1200 | 2034.0 | 4068.0 | 6102.0 | 8136.0 | 10170.0 | |
| 1400 | 2770.0 | 5540.0 | 8310.0 | 11080.0 | 13850.0 |
Applications
The plug-in electromagnetic flow sensor (hereinafter referred to as "sensor") and the company's electromagnetic flow conversion display constitute a plug-in electromagnetic flow meter. The plug-in electromagnetic flow meter is generally of a split type, and can be integrated into one type if required by the user. The sensor is installed on the pipeline where it needs to be tested. The split-type display is installed in a nearby wall or in a metered instrument box. It can also be installed in the instrument and control room. The two are connected in the sensor's junction box with a dedicated cable. . The split type conversion display is mounted directly on the upper end of the sensor.
Plug-in electromagnetic flow meters are used to measure the flow and total amount of various conductive liquids in various sectors such as industrial, agricultural, water conservancy, environmentally-friendly sewage monitoring, and urban water supply.
