| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | LMH |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | USD140 ~ USD295/pc |
| Packaging Details: | RS485 Output Mass Digital Air, Gas Flow Sensor Standard export carton packing or can customized |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Product Name: | Sewage Ultrasonic Open Channel Flow Meter | Measuring Range: | 0 ~ 93m3/s |
|---|---|---|---|
| Working Temperature: | -10°C~60°C | Accuracy: | ±0.25%F.S |
| Dimension: | 92mm*198mm*67mm | Working Voltage: | DC24V Or AC160V~250V |
| Signal Output: | 0 To 20mA; 4 To 20mA;RS485 | Explosion-proof Grade: | EXiaII BT4Gb |
| Power Consumption: | <3W | Protection Class: | IP65 |

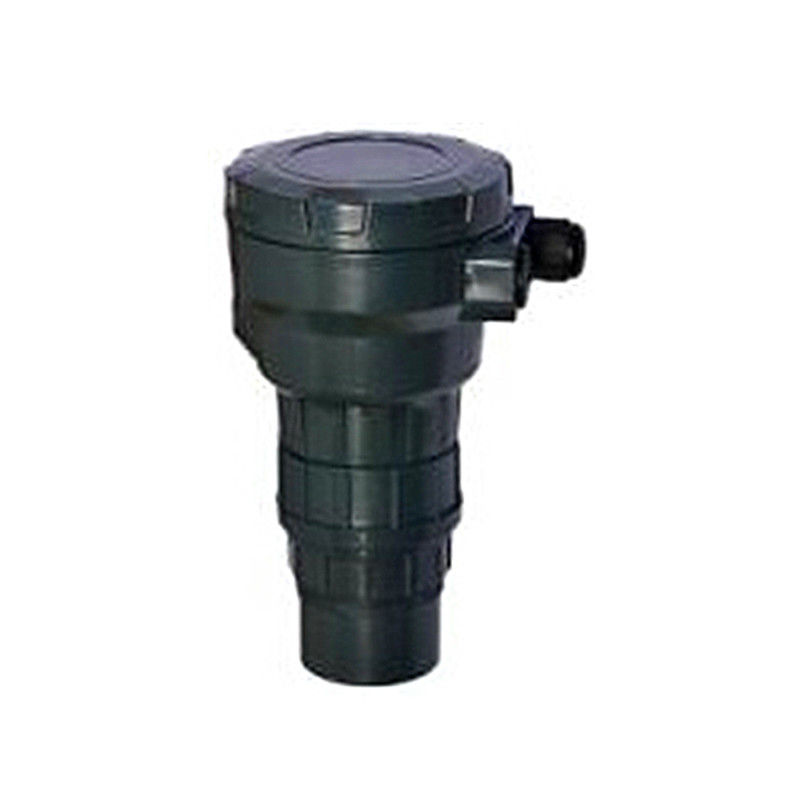

MN integrated intergrated sewage ultrasonic open channel flow meter can be used when the installation space is constrained, it integrates the transducer and integrator. It is a high precision flow meter that can use ultrasound to measure the Venturi or Parshall trough. It measures the time that the sound wave is reflected after it reches the water surface of the channel, and then calculates the flow of the channel. It can display the flow output, flow rate, total flow and water level. The instrument is used with a gauging tank and is mainly used to measure the flow of sewage in a channel with free flow conditions.
·The sensor is non-contact with the measured fluid.
·Higher reliability than other flow meter
·Built-in multiple algorithms so that it can be used for all types standard weir
·Stable sensor can be applied for poor working conditions
·4~20MA isolated current output, optional fieldbus interface
·Control relay output, alarm relay output
·Support MiniSD card data acquisition (with a 8G card )
·Water and wastewater treatment
·Power, mine
·Food industry
·Petrochemical
·Streams, lakes, river courses
·Intake canals, outlet channels, etc.
·Supporting the use of the control system
