| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | DS |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | USD5~$25/pc |
| Packaging Details: | Accuracy 0.1 water proof PH meter PH tester Standard export carton packing. |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Product Name: | Etching Machine Pp Diaphragm Pressure Gauges | Pressure Range: | 0 ~ 1KG, 2KG, 3KG, 4KG, 5KG, 7KG, 10KG, 15KG |
|---|---|---|---|
| Size: | 60mm Dial | Thread: | 1 / 2NPT Or Custom |
Etching machine pp diaphragm pressure gauges
etching machine pp diaphragm pressure gauges Ordering guide
Pressure range:
Quantities:
Application etching machine pp diaphragm pressure gauges:
PCB circuit board industry, metal etching machine and PCB / LCD cleaning liquid filter pump, corrosion resistance, high viscosity liquid and gas can be measured, widely used in various chemical industry chemical machinery. Such as developing machine, washing machine, etching machine, liquid filter and other equipment.
Technical indicators etching machine pp diaphragm pressure gauges :
Dial diameter: 60MM
Measuring range: 0 ~ 1KG, 2KG, 3KG, 4KG, 5KG, 7KG, 10KG, 15KG
Mirror: PC mirror or glass
Shell Material: PP Engineering Plastics, acid and alkali, high corrosion resistance, good stability, deformation temperature of 130 ℃
Table cover material: PP table spinning
Spring Material: Phosphor Bronze
Ambient temperature: the maximum operating temperature of 60 ℃ (due to consider the conduction characteristics), the ambient temperature of about -20 ℃ ~ 60 ℃
Connector screws: 1 / 2NPT internal teeth
Diaphragm material: , fluorinated rubber, acid and alkali, anti-corrosion
Features etching machine pp diaphragm pressure gauges:
The one-piece construction of the structure, making the pressure gauge is not easy to produce cracks and oil spills, and has excellent corrosion resistance
Dimension etching machine pp diaphragm pressure gauges:

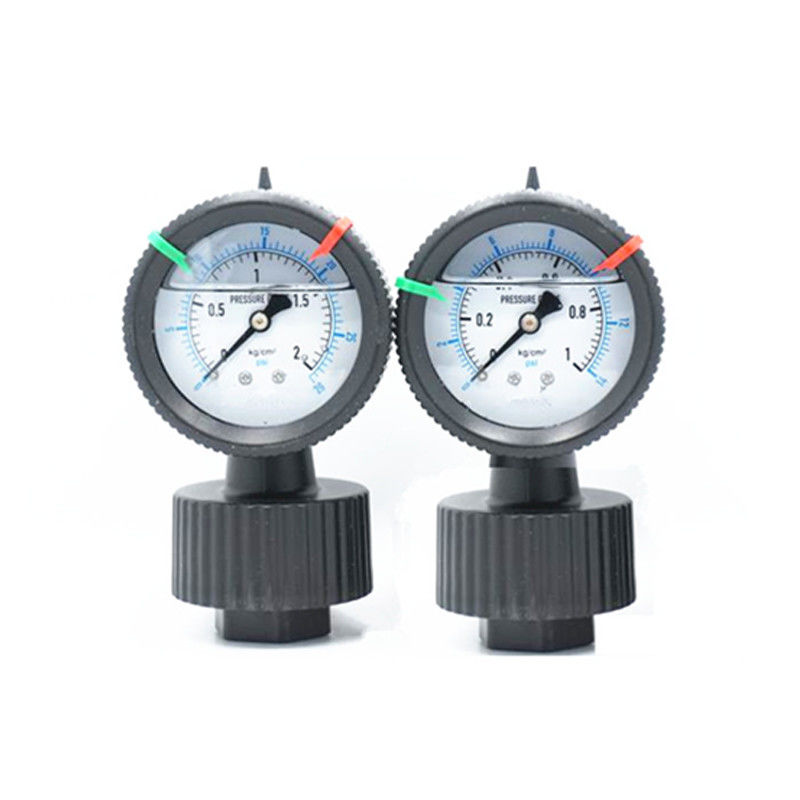

Pictures etching machine pp diaphragm pressure gauges
