| Place of Origin: | Made In China |
| Brand Name: | NanCon |
| Certification: | CE |
| Model Number: | D2000 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | USD15~$25/pc |
| Packaging Details: | Accuracy 0.1 water proof PH meter PH tester Standard export carton packing. |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Product Name: | China Made Low Pressure Micro Air Differential Pressure Gauge | Medium: | Air And Non-combustible, Compatible Gases (optional Gas) |
|---|---|---|---|
| Accuracy: | 2% FS (mm Units, And The Range With The Corresponding Pa) | Pressure Range: | -20Hg To 15 Psig (-0.677 Bar To 1.034 Bar) |
| Temperature Range: | 20 To 140 ° F (-6.67 To 60 ° C) | Hole Size: | 114mm |
| Mounting Orientation: | Diaphragm In Vertical | Weight: | 500g / Only |
Low cost micro air differential pressure gauge
Description
2000 series differential pressure gauge minimum range 0-30Pa, maximum range 0-30KPa. There are as many as 88 kinds of range and metric / imperial units to choose from.
This differential pressure gauge using frictionless magnetic components, can rapidly measure the micro-pressure air or non-corrosive gases, including positive, negative (vacuum) or differential. No wear, hysteresis and clearance. Not filling, vaporization and freezing. This design has anti-vibration, anti-shake and high overpressure capability, you can guarantee access to high precision. The design impact, shock and overload protection.

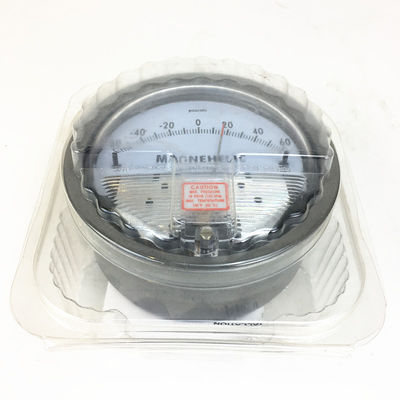

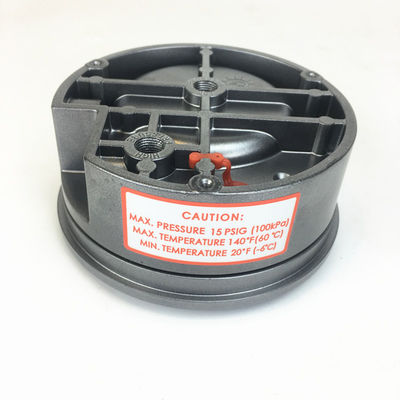

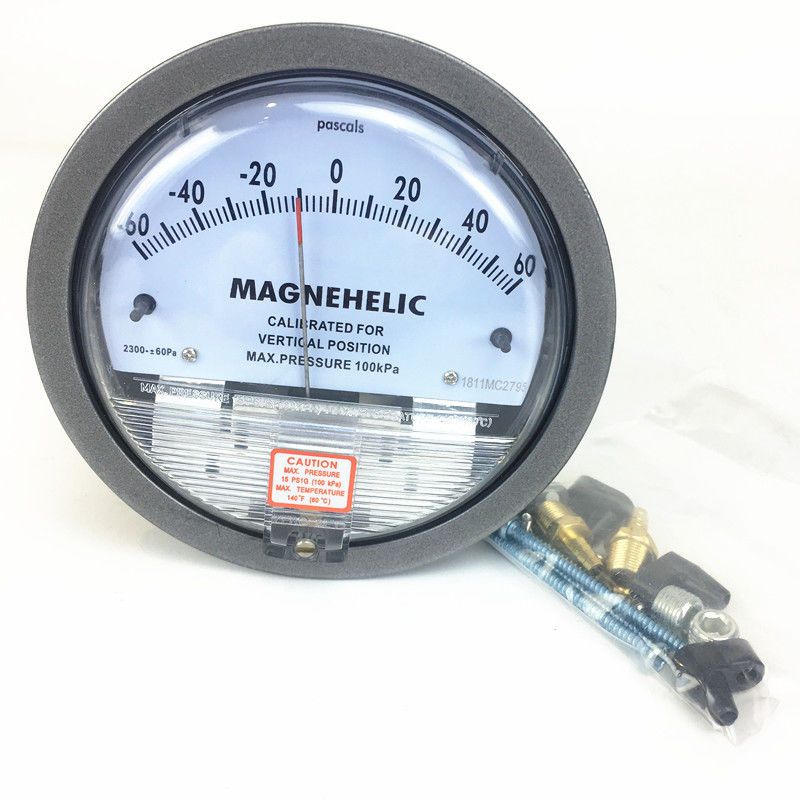

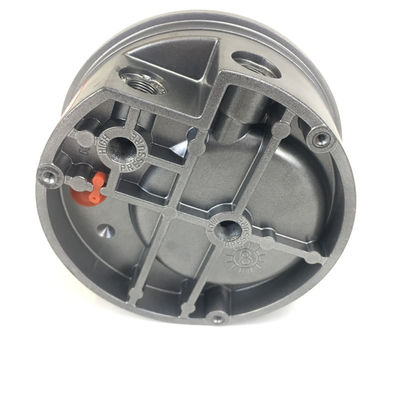

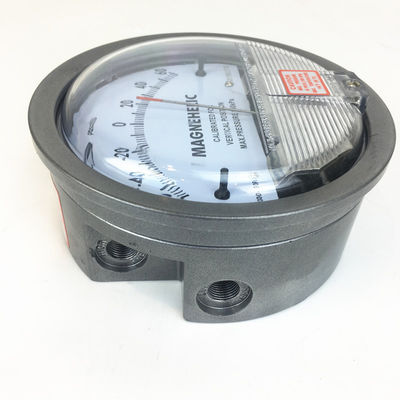

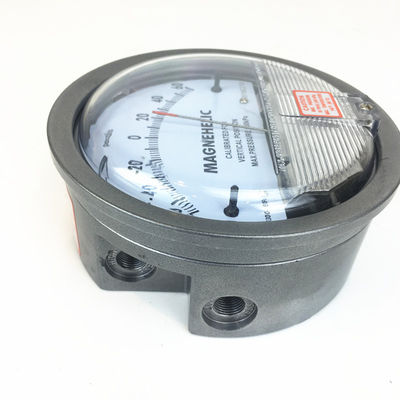

Detailed Images
Specification
| Medium | air and non-combustible, compatible gases (optional gas) |
| Housing | cast aluminum housing or ABS shell, glass beveled panels. Dark gray coating, can withstand 168 hours salt spray test |
| Accuracy | 2% FS (mm units, and the range with the corresponding pa) |
| Pressure range | -20Hg To 15 psig (-0.677 bar to 1.034 bar) |
| Temperature range | 20 to 140 ° F (-6.67 to 60 ° C) |
| Hole size | 114mm |
| Mounting Orientation | Diaphragm in vertical |
| Connections | same 1/8 "NPT high and low pressure fittings, one pair on the side, one pair in the back |
| Weight | 500g / only |
| Standard accessories | two 1/8 "NPT threaded connectors for high and low pressure fittings can be connected with a rubber tube; two 1/8" NPT plug for blocking the remaining two high and low pressure ports; three a threaded countersunk mounting coupling (mounting ring, according to buckle holder for three interfaces to replace MP and count on attachments HP). |
Features
Application
Selection
Pressure range?
Qty?
