| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | YK-100 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | USD45~$154/pc |
| Packaging Details: | Accuracy 0.1 water proof PH meter PH tester Standard export carton packing. |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Product Name: | Ammonia Fuel Steam Digital Pressure Gauge Manometer | Range: | -100KPa---260MPa |
|---|---|---|---|
| Accuracy: | 0.2%,0.5%,0.25% | Power Supply: | 24VDC Or 12VDC |
| Overload Capacity: | 200% | Medium Temp: | -10~80°C |
| Display: | 4 Digit LCD (optional) | Thread: | M20*1.5, G1/2, 1/2npt |
| Medium: | Water,oil,air | Warranty: | 1 Year |
Ammonia fuel steam digital pressure gauge manometer
Description
YK-100 Series Intelligent Pressure Gauges have full electronic structure and use battery-powered, so they are very easy for on-site installation. Specifically, front-end high-precision piezoresistive pressure sensor is used and the output signal is processed by the high-precision, low temperature drift amplifier, then sent into the high-precision A/D converter to be converted into digital signal, after computing and processing the actual pressure value is showed on the LCD display.
Features
Large-screen LCD display, high resolution, ignoring the error.
Peak Hold function, record the maximum pressure values during the measurement
Pressure on the percentage of dynamic display, (the progress bar display)
Choice of five engineering units: psi, bar, kpa, kg / cM2 Mpa
Choose 0 ~ 15min auto-off feature.
Micro-power consumption, work more than 2 years in power-saving mode, 2,000 hours continuous work.
Parameter correction, correct zero and error in field application.
Limit the upper and lower range
Sampling rate: 4 times / sec
Specification
| Scale Range | -0.1~0~250MPa | Accuracy | 0.4%, 0.2%,0.5%,0.25% |
| Overload capacity | 200% | Pressure Type | Gauge,Absolute Pressure |
| Stability | ≤0.1%/year | Battery voltage | High energy lithium battery or rechargeable battery |
| Display | LCD,5characters | Display range | -19999~99999 |
| Ambient temperature | -20°C~70°C | Relative humidity | ≤80% |
| Connection size | M20x1.5 Male | Pressure unit | MPa/KPa/Bar/Psi/mBar |
| Case material | SS | Medium temp | -10~80°C |

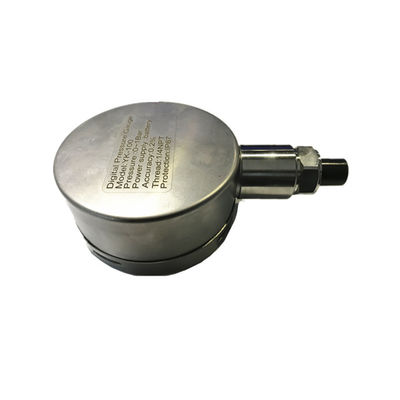

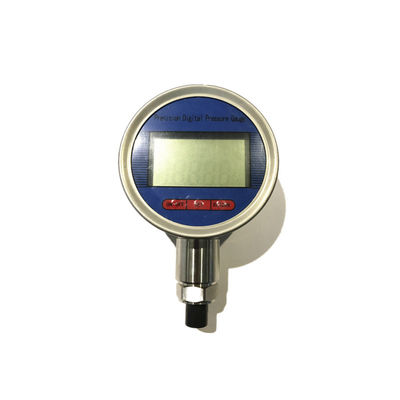

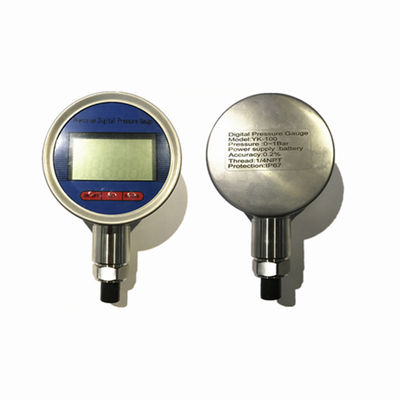

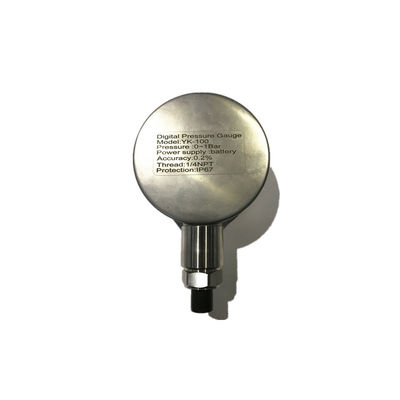

Detailed Images
Applications
Used to petroleum, chemical industry, power plant, water supply of town, Horologic exploration fields.
