| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | YX-60/100/150 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | USD15~$95/pc |
| Packaging Details: | Accuracy 0.1 water proof PH meter PH tester Standard export carton packing. |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |

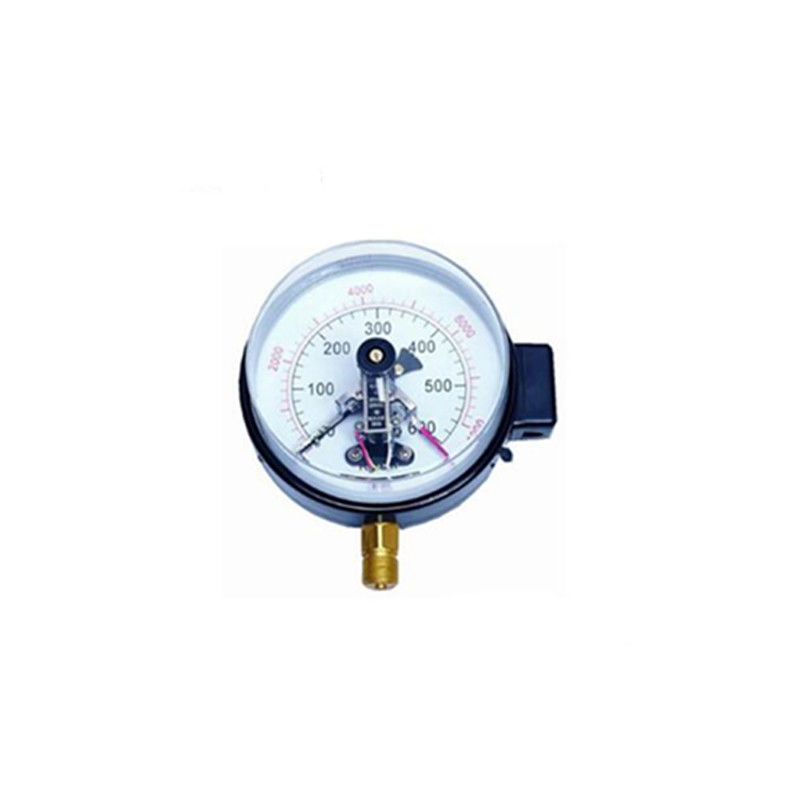

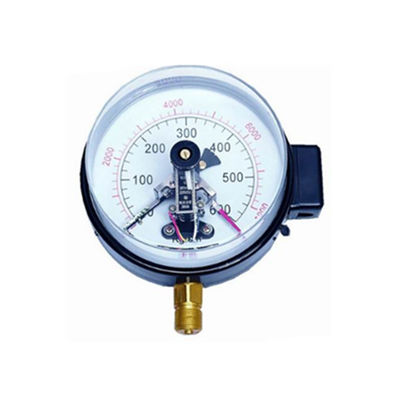

liquid, gas YX-60/100/150 Electric contact pressure gauge chinese supplier
Description
YX-60/100/150 electrical contact pressure gauge is able to adapt to the different objects and needs of the measured object, the series of electrical contact pressure gauge in the original ordinary and special type on the basis of, and have developed anti-vibration, corrosion Type, corrosion and anti-vibration type and with a variety of isolation devices, and other types of a total of more than 10 models of products.
YX-60/100/150 electrical contact pressure gauge for measuring copper alloy without corrosion, no explosion hazard, non-crystalline liquid, gas and other media pressure. The instrument is used in conjunction with the corresponding electrical device to achieve the purpose of achieving automatic pre-set maximum or minimum pressure values for the two-bit automatic control and signaling (alarm) of the measured pressure system.
The instrument has the measurement and control function, can arbitrarily set the upper and lower control pressure value, the movement is stable and reliable, in the petroleum, the chemical industry, the power station, the metallurgical and other industrial enterprise and the electromechanical equipment is widely used.
Technical Parameters
| product name | Product Type | Nominal diameter (mm) | Accuracy class | Measuring range (Mpa) | Connection thread | contact power (VA) | Maximum operating voltage (V) |
Control mode
|
|
Electric contact pressure gauge
|
YX-60 | Φ60 | 2.5 | 0~0.1~60 | M14×1.5 | 10 | DC220V or AC380V | Upper and lower limits |
| YX-100 | Φ100 | 1.6 |
0~0.1~100 -0.1~0~2.4 |
M20×1.5 | 10 | DC220V or AC380V | Upper and lower limits | |
| YX-150 | Φ150 | 1.6 |
0~0.1~100 -0.1~0~2.4 |
M20×1.5 | 10 | DC220V or AC380V | Upper and lower limits | |
| Magnetic column electrical contact pressure gauge | YX-100C | Φ100 | 1.6 |
0~0.1~100 -0.1~0~2.4 |
M20×1.5 | 30 | DC220V or AC380V | Upper and lower limits |
| YX-150C | Φ150 | 1.6 |
0~0.1~100 -0.1~0~2.4 |
M20×1.5 | 30 | DC220V or AC380V | Upper and lower limits | |
|
Oxygen Electric Contact Pressure Gauge
|
YOX-100 | Φ100 | 1.6 | 0~0.1~60 | M20×1.5 | 10 | DC220V or AC380V | Upper and lower limits |
| YOX-150 | Φ150 | 1.6 | 0~0.1~60 | M20×1.5 | 10 | DC220V or AC380V | Upper and lower limits | |
|
Ammonia with electrical contact pressure gauge
|
YAX-100 | Φ100 | 1.6 | 0~0.1~60 | M20×1.5 | 10 | DC220V or AC380V | Upper and lower limits |
| YAX-150 | Φ150 | 1.6 | 0~0.1~60 | M20×1.5 | 10 | DC220V or AC380V | Upper and lower limits | |
|
Temperature and electrical contact pressure gauge
|
YTWX-100 | Φ100 | 1.6 | 0~0.1~60 | M20×1.5 | 10 | DC220V or AC380V | Upper and lower limits |
| YTWX-150 | Φ150 | 1.6 | 0~0.1~60 | M20×1.5 | 10 | DC220V or AC380V | Upper and lower limits | |
| Seismic electrical contact pressure gauge | YTNX-100 | Φ100 | 1.6 | 0~0.1~60 | M20×1.5 | 30 | DC220V or AC380V | Upper and lower limits |
| Note: If the instrument connection thread or other aspects of special requirements, please consult with the company made. | ||||||||
Features
Instrument by the measurement system, indicating device, magnetic auxiliary contact device, shell, adjust the device and the junction box and other components. When the measured pressure on the role of the spring tube, the end of the corresponding elastic deformation - displacement, amplified by the transmission by the indicating device on the dial indicated. At the same time, the pointer drives the contact of the movable contact of the contact device with the contact (upper or lower limit) on the set pointer, causing the control system to turn on or off the circuit to achieve the purpose of automatic control and alarm.
In the electrical contact device on the electrical contact signal pin, equipped with adjustable permanent magnet, can increase the contact suction, speed up the contact action, so that contact contact reliable, eliminate the arc, can effectively avoid the instrument due to the work environment vibration or media Pressure pulsation causes frequent closure of the contacts. So the instrument has a reliable action, long life, contact switch power and other advantages.
