| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | PP60 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | US5~$25/pc |
| Packaging Details: | Accuracy 0.1 water proof PH meter PH tester Standard export carton packing. |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Product Name: | PP Diaphragm Small Pressure Gauge | Material: | PTFE |
|---|---|---|---|
| Accuracy: | 0.1 | Pressure Range: | 0 ~ 1KG, 2KG, 3KG, 4KG, 5KG, 7KG, 10KG, 15KG |
| Model: | PP60 | Size: | 60 |
| Connection: | NPT 1/2 | Type: | Corrosive Resistant Pressure Gauge |

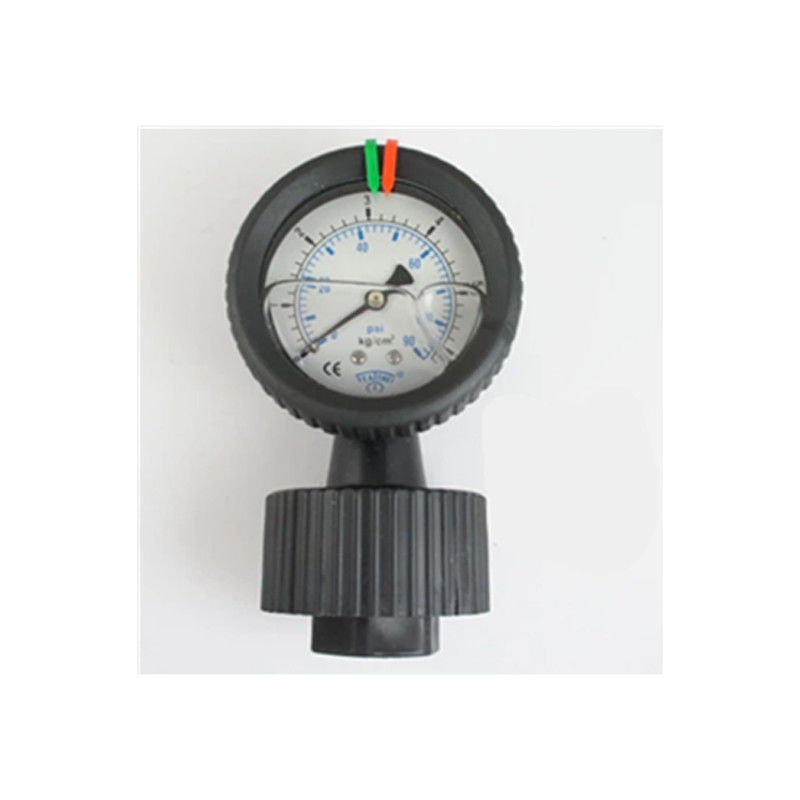

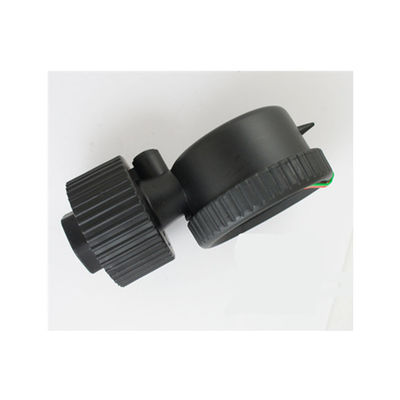

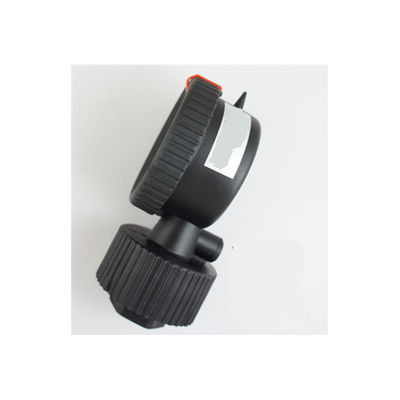

PP diaphragm small pressure gauge
Application of PP diaphragm small pressure gauge
PCB circuit board industry, metal etching machine and PCB / LCD cleaning liquid filter pump, corrosion resistance, high viscosity liquid and gas can be measured, widely used in various chemical industry chemical machinery. Such as developing machine, washing machine, etching machine, liquid filter and other equipment.
Features of PP diaphragm small pressure gauge
The one-piece construction of the structure, making the pressure gauge is not easy to produce cracks and oil spills, and has excellent corrosion resistance
| Specifications of PP diaphragm small pressure gauge | |||
| Dial diameter | 60MM | Measuring range | 0 ~ 1KG, 2KG, 3KG, 4KG, 5KG, 7KG, 10KG, 15KG |
| Mirror | PC mirror or glass | Shell Material | PP Engineering Plastics |
| Table cover material | PP table spinning | Spring Material | Phosphor Bronze |
| Ambient temperature | max. 60 ℃ | Connector | 1 / 2NPT internal teeth |
| Diaphragm material | , fluorinated rubber | ||
Technical indicators PP diaphragm small pressure gauge
Dial diameter: 60MM
Measuring range: 0 ~ 1KG, 2KG, 3KG, 4KG, 5KG, 7KG, 10KG, 15KG
Mirror: PC mirror or glass
Shell Material: PP Engineering Plastics, acid and alkali, high corrosion resistance, good stability, deformation temperature of 130 ℃
Table cover material: PP table spinning
Spring Material: Phosphor Bronze
Ambient temperature: the maximum operating temperature of 60 ℃ (due to consider the conduction characteristics), the ambient temperature of about -20 ℃ ~ 60 ℃
Connector screws: 1 / 2NPT internal teeth
Diaphragm material: , fluorinated rubber, acid and alkali, anti-corrosion
Dimension
