| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | YD-4 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | US150~$425/pc |
| Packaging Details: | Accuracy 0.1 water proof PH meter PH tester Standard export carton packing. |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Product Name: | 4-20mA RS485 Hart Absolute Explosion Proof Pressure Gauge | Measuring Range: | -0.1~0~0.01~100MPa |
|---|---|---|---|
| Accuracy: | 0.4,0.2%FS | Overload: | 2*measuring Range |
| Pressure Types: | Gauge,absolute,sealing | Zero Drift: | ±0.03%FS/℃ |
| Temperature Compensation: | -10~80℃ | Stability: | ±0.1%FS/year |
| Signal Output: | 4-20mA,RS485,with 2/4 Control Point | Power Supply: | 24VDC(12~36)VDC |

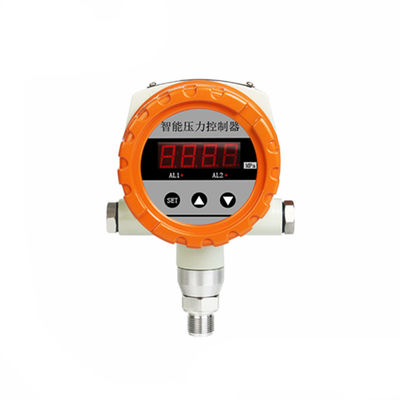

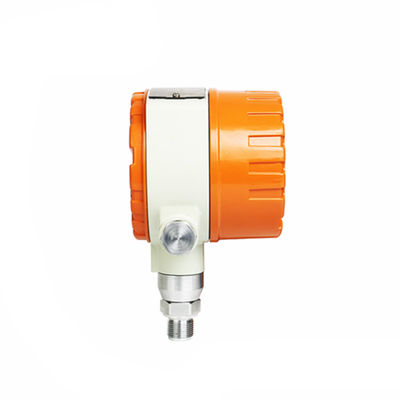

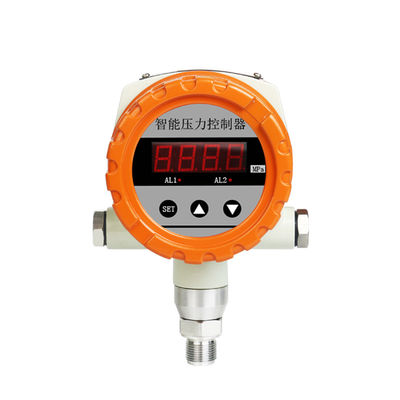

Digital 4-20mA RS485 Hart gauge absolute pressure controller explosion proof pressure gauge
Description
Yk-4 explosion-proof digital air oil hydraulic water mpa pressure gauge manometer is made of imported sensor, with superior performance, high precision, anti-corrosion, anti-impact, anti-vibration and high stability.The signal processing circuit is made up of the latest ultra-low power processor, signal processing chip and power management chip. It is powered by high-capacity and high-performance lithium battery without external power supply.
Features
Explosion-proof housing,sturdy and durable
Easy to operate
Can be available for gas water oil
Multiple output:4-20mA,0-5V,0-10V,RS485,HART.Can output RS485 and 4-20mA all at once.
Measuring range can be changed on site.
LCD and nixie tube can be optional,the shell is made of thicken cast aluminium.
Specification
| Specification YK-4 | |||
| Measuring range | -0.1~0~0.01~100MPa | Stability | ±0.1%FS/year |
| Accuracy | 0.2,0.4 | Zero drift | ±0.03%FS/℃ |
| Compensation temp. | -10~80℃ | Storage temp. | -40~85℃ |
| Medium temp. | -30~80℃ | Working temp. | -20~80℃ |
| Display | LED | Power supply | 24(12~36)VDC |
| Insolation | 100m*1.5 | Protection | IP65 |
| Signal output | 4-20mA,RS485,with2/4 control point | ||
| Overload pressure | double measuring range | ||
| Pressure type | Gauge,absolute or sealing pressure | ||
Selection Guide
Dimension
Related products
Company Information
Shelok considers itself not only a manufacture but more conprehensively a provider of industry specific customer-oriented solutions.Our profound understanding of product application and strong technical backgrounds ensure you the best product solution and achieve a greater success.
Xi'an Shelok Instrument Technology co.,ltd is a professional R&D center and manufacture of measuring instruments.And here's a variety of products for you choice: pressure transmitters,temperature transmitters,flow transmitters,weighing instruments and so on.Our products have been made by advanced technology, with high quality, fast delivery period, which have attracted so many domestic and foreign customers.
