| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | DJ101 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | US135~$765/pc |
| Packaging Details: | Accuracy 0.1 water proof PH meter PH tester Standard export carton packing. |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Accuracy: | 1.6,1.0.2.5 | Pressure Range: | 0-100Mpa |
|---|---|---|---|
| Process Connection: | NPT,BSP,PT,R ,1/4,1/2,1/8 | Application: | Water Oil Air Pressure Measurement |
| Oem: | Yes | Warranty: | 12 Months |
| Product Name: | High Quality Manometer Oil Pressure Gauges |

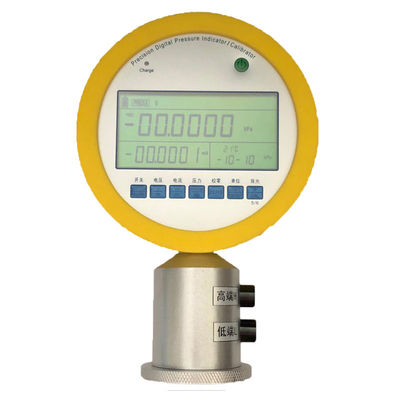

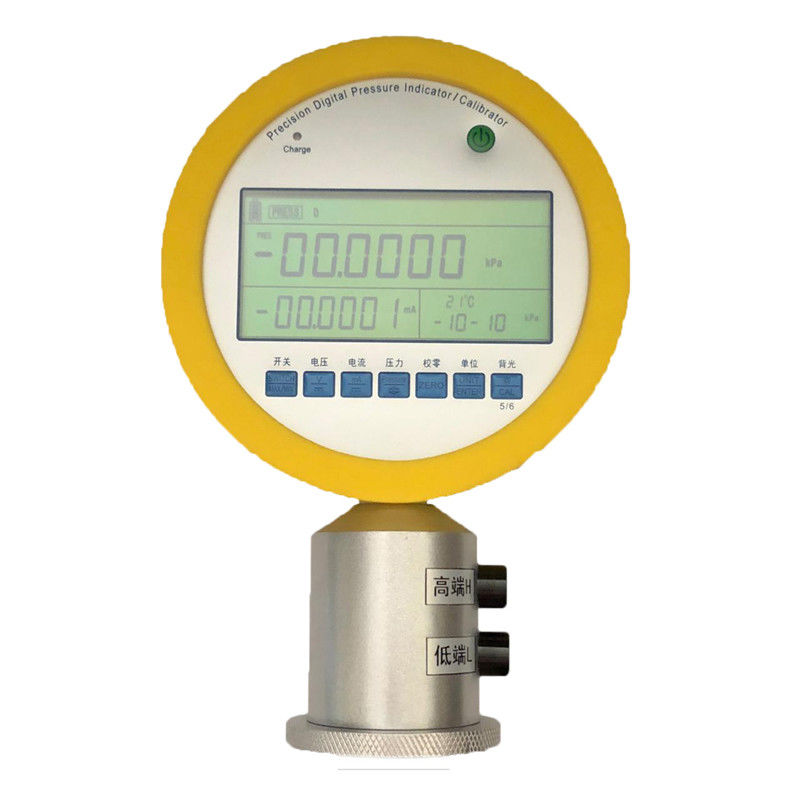

l. The differential pressure gauge is a multi-function instrument. While measuring the pressure, it can measure: ± 25mADC current or ±50VDC voltage, pressure switch test and automatically record the pressure switch value, with 24VD output, can be used as 4 -20mA two The power supply of the wire transmitter has the function of recording the maximum value and minimum value.
2. Adopt 24-bit high-performance A/D converter and high-performance microprocessor to make continuous corrections to various performance and technical indicators of the instrument to ensure that the instrument can be used in a wide temperature range for a long time without affecting the accuracy of the instrument.
3. Low power consumption. The battery adopts imported high-energy lithium battery and imported aluminum alloy casing. It has beautiful appearance, strong durability and strong anti-interference ability.
4. Intelligent charging, with battery over-charge, under-voltage automatic shutdown and automatic protection functions. The shutdown protection function of micro power consumption protects the battery energy from being damaged when the meter is not used for a long time, ensuring the long life of the battery.
5. Ultra-high resolution 1:1000000, continuous display without break code, word skipping phenomenon.
6. Adopt thin film panel and imported light touch switch, with novel style and long service life of keys.
7. Backlit LCD multi-channel display, low power consumption and long life.
8. The digital calibration of pressure, current and voltage does not require any hardware adjustment, and the zero point and full range can be adjusted directly on the panel.
9. Built-in six-digit high-precision DC digital voltage and ammeter.
1 0, with RS-2 3 2 or RS-485 interface, can communicate with the host computer, transfer real-time measurement data to the special inspection software, can perform data recording, automatically generate tables, automatically perform error calculation, and calibration data can be stored print. Can verify pressure transmitter, pointer pressure gauge, pressure switch (pressure controller), etc.
Application :
Differential pressure gauges can be used as calibration standards (tables) with higher accuracy, and can also be used as on-site calibration instruments. They are widely used in metallurgy, petroleum, chemical, electric power, natural gas, measurement and scientific research departments.
Working Principle :
1. Functional block diagram
Technical indicators :
1. Pressure range: 0~500kPa
2. Resolution: Min O.01Pa(According to the range),current: O.1μ A Voltage: O.lmV
3. Current range: ±25.0000 mA,Voltage range:±50.0000 V
4. Output: 24VDC±10%,Maximum load current50mA
5. Accuracy: pressure: O.1%F?S O.05%F?S 0.02%F?S
6. Voltage and current:±(0.01%R.D+0.005%F?S)
7. Temperature compensation range: 0-50°C
DC working time:≥80 hours,Depends on working conditions
8. Display: Backlit LCD screen,5 digits or 6 digits display by pressing the button of pressure and electric signal
9. Overload capacity: 1.2-1.5 times the upper limit of the range
10. Dimensions: instrument outer diameter 155mm thick 47mm (sensor nozzle outer diameter 58mm, length 68mm)
11. Weight: 1000g, working temperature 0~50°C, relative humidity: ≤80%RH
12. Power: 3.7V/3000mAh lithium battery, charging voltage 5V, with battery power display function, can easily understand the battery usage
13. Medium: The pressure transmission medium can only be non-corrosive gas
