| Place of Origin: | Made In China |
| Brand Name: | NanCon |
| Certification: | CE |
| Model Number: | YK-100 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | US95~$195pc |
| Packaging Details: | Accuracy 0.1 water proof PH meter PH tester Standard export carton packing. |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Measuring Range: | -100KPa ~260MP | Explosion-proof Grade: | Ex D IIC T6 Gb |
|---|---|---|---|
| Accuracy Grade: | 0.05, 0.1, 0.2, 0.4, 0.5 | Display Mode: | 5-digit Display + Analog Beam Indicator |
| Overload Pressure: | 1.5-3 Times The Range, Depending On The Measurement Range | Turn Off The Current: | Less Than 10 Microamperes |
| Power Supply: | 3.6V High-energy Lithium Battery, Life Of 5 Years | Medium Temperature: | -25 °C ~ 80 °C |
| Process Interface: | M20*1.5, 1/2npt, 1/4npt(M) | Warranty: | 18 Months |
Explosion-proof Gas and Water Digital Pressure Gauge Manometer
Description
YK-100 Explosion-proof Gas and Water Digital Pressure Gauge Manometer adopts imported sensor, superior performance, high accuracy, corrosion resistance, impact resistance, vibration resistance, high stability, etc.; signal processing circuit adopts the latest ultra-low power processor, signal processing chip and power supply The management chip is composed of a large-capacity, high-performance lithium battery and does not require external power supply. With 5-digit display and analog percentage display, the readings are intuitive and convenient. The accuracy of the product can reach 0.05, which is suitable for the verification and verification of general pressure gauges, precision pressure gauges and pressure transmitters, and can replace traditional mechanical pointer pressure The table measures the pressure in the field.

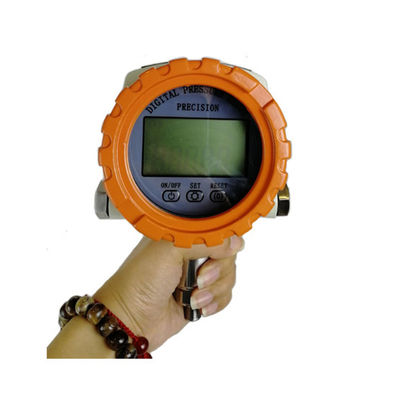

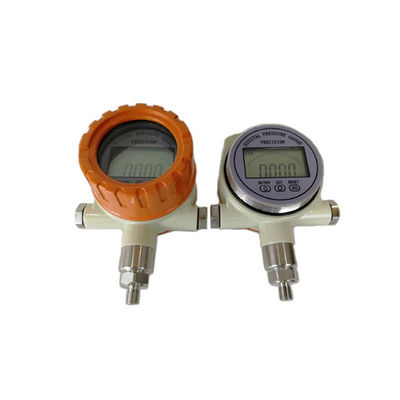

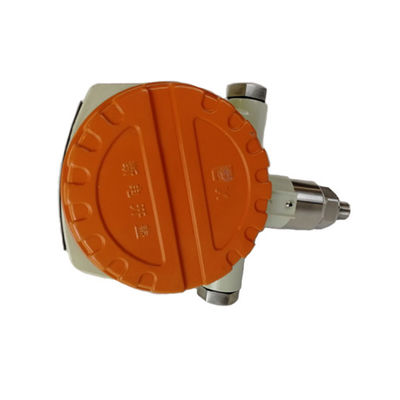

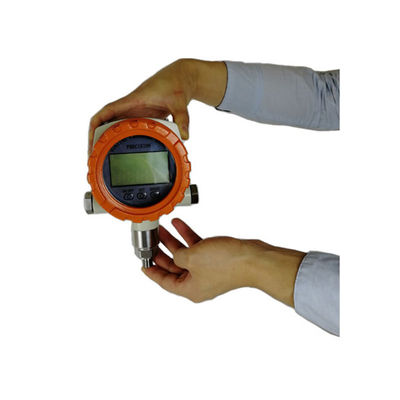

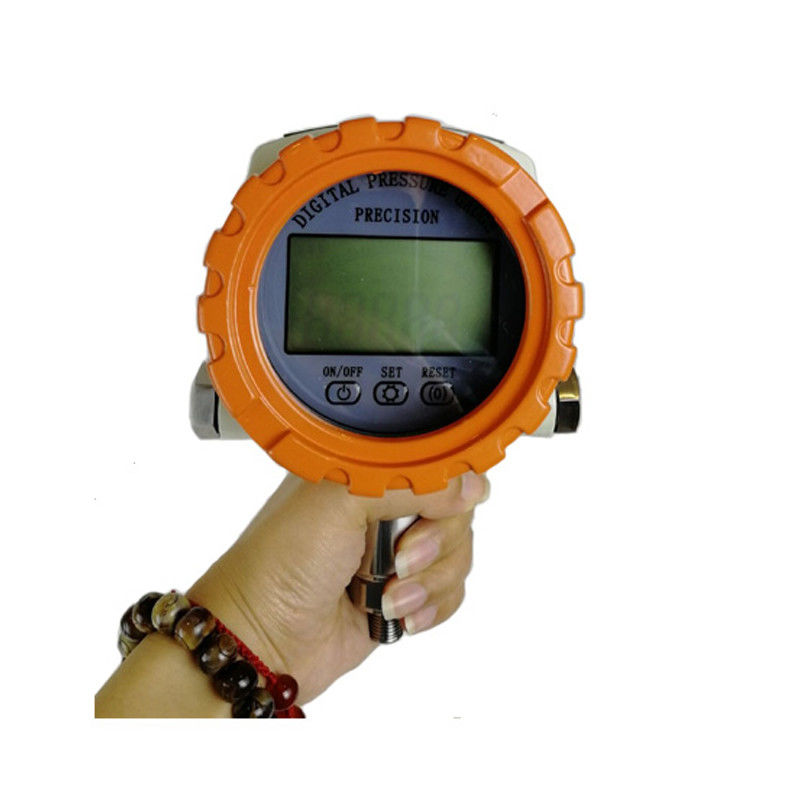

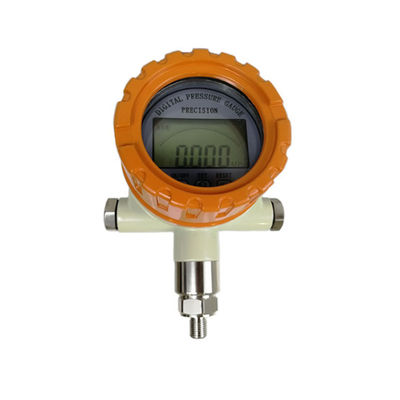

Detailed Images
Specification
| YK-100 Explosion-proof Gas and Water Digital Pressure Gauge Manometer | |
| Measuring range | 100KPa ~260MP |
| Explosion-proof grade | Ex d IIC T6 Gb |
| Accuracy grade | 0.05,0.1,0.2,0.4,0.5 |
| Display mode | 5-digit display + analog beam indicator |
| Overload pressure | 1.5-3 times the range, depending on the measurement range |
| Turn off the current | less than 10 microamperes |
| Power supply | 3.6V high-energy lithium battery, life of 5 years |
| Medium temperature | -25 °C ~ 80 °C |
| Process Interface | M20×1.5, 1/2npt, 1/4npt(M) |
Selection Guide
Selection Guide
Features
1. Micro power, high accuracy, high-definition five-digit digital liquid crystal display;
2. Small size, simple operation, easy to use on-site calibration pressure gauges and precision pressure measurement;
3. Smart calibration, linear repair, two seconds magnetic pen sensor zero
4. LCD display with dynamic pressure value display, visual display of pressure percentage
5. Pressure unit: mmH2O,mmHg,psi,kPa,MPa,Pa,mbar,bar,Up to ten pressure units (optional)
Applications
For high accuracy-graranteed within 2% of full scale. indicate low air or non-corrosive gas pressures –eighter positive, negative(vacuum)of differential. The design resists shock ,vibration and over-pressures no Manometer fluid to evaporate, freeze or cause toxic or leveling problems, it’s inexpensive too .
Related products
FAQ
Q:How long will you reply me?
A:We will contact you as soon as possible but within 12 hours
Q: Can I get some samples?
A: Yes, Sample order is available for quality check and market test. But you have to pay the express cost.
Q: How soon can you arrange your production?
A: Once getting your product confirmation and receiving the prepayment, the production will be started immediately.
Q: What's delivery time?
A: It usually takes about 3-5 working days for small order and 10-15 days for big order.
Q:How do you control your quality ?
A: Three inspection steps(of original, production, and finished goods) + good warranty service(1 year free to change a new one without any human damage factors).
Q: What certificates do you have ?
A:ISO9000, CE, Explosion-proof certification, RoHs ready. And before the delievry of goods, quality and safety inspection certification issued by third parts also can be offered.
Q:Could I visit your factory?
A:Very welcome! Fly to Xian Yang air port. It was a big pleasure for us.
Q: What's your warranty terms?
A: We offer 12 months warranty time.
Q:can you provide OEM & Customized service?
A:Yes, OEM and ODM are both available, we have the professional R&D dept which can provide professional solutions for you.
