| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | YK-60 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | US35~$65pc |
| Packaging Details: | Accuracy 0.1 water proof PH meter PH tester Standard export carton packing. |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Measuring Range: | -0.1~0~60MPa | Accuracy Class: | 1.6% ;1.0% ;0.5% ;0.4% ;0.2% |
|---|---|---|---|
| Dial Diameter: | 60mm/150mm | Working Temperature: | -10℃-50℃ |
| Interface Thread: | M20*1.5/customization | Display: | LCD Display |
| Product Name: | OEM Oil Air Hydraulic Fuel Digital Manometer Pressure Gauge |

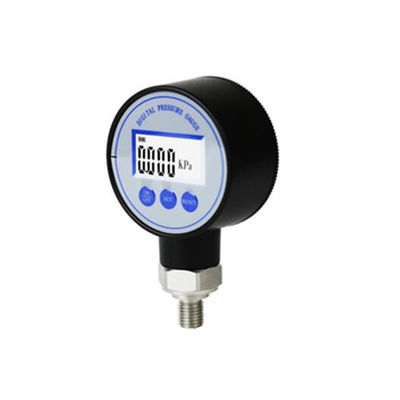

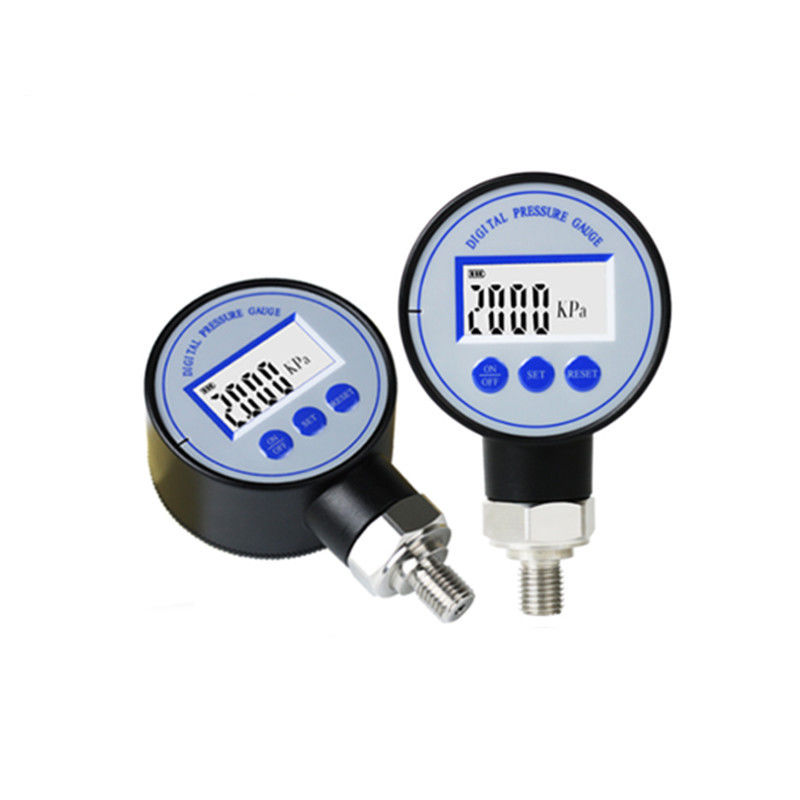

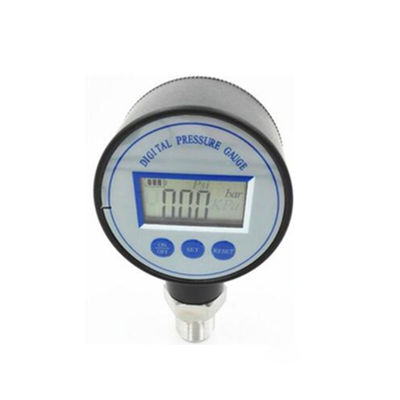

OEM Oil Air hydraulic fuel Digital manometer Pressure Gauge
Description
OEM Oil Air hydraulic Digital manometer fuel Pressure Gauge
Yk-60 Series Intelligent Pressure Gauges have full electronic structure and use battery-powered, so they are very easy for on-site installation. Specifically, front-end high-precision piezoresistive pressure sensor is used and the output signal is processed by the high-precision, low temperature drift amplifier, then sent into the high-precision A/D converter to be converted into digital signal, after computing and processing the actual pressure value is showed on the LCD display.
Detailed Images
Feature
large-screen LCD display, high resolution, ignoring the error.
Peak Hold function, record the maximum pressure values during the measurement
Pressure on the percentage of dynamic display, (the progress bar display)
Choice of five engineering units: psi, bar, kpa, kg / Mpa
Choose 0 ~ 15min auto-off feature.
Micro-power consumption, work more than 2 years in power-saving mode, 2,000 hours continuous work.
Parameter correction, correct zero and error in field application.
Limit the upper and lower range
Sampling rate: 4 times / sec
Applicable to a variety of gases and liquids compatible with stainless steel pressure measurement.
