| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | YX |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | US45~$68pc |
| Packaging Details: | Accuracy 0.1 water proof PH meter PH tester Standard export carton packing. |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Product Name: | Flange Diaphragm Oil Pressure Gauge | Material: | Stainless Steel |
|---|---|---|---|
| Accuracy: | 1.6% | Dial Size: | 60mm,100mm,150mm |
| Connection: | M20*1.5, 1/2,1/4 Or Other |
Flange diaphragm oil pressure gauge
Description
Diaphragm Pressure Gauge is a measuring meter for testing tiny pressure which is designed according to common diaphragm pressure gauge with corrosion resistant. The pressure transmitting system and outer casing are made of stainless material which is applied in the technical process with high requirement of corrosion resistant.

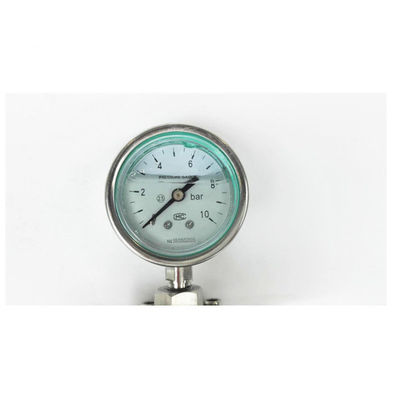

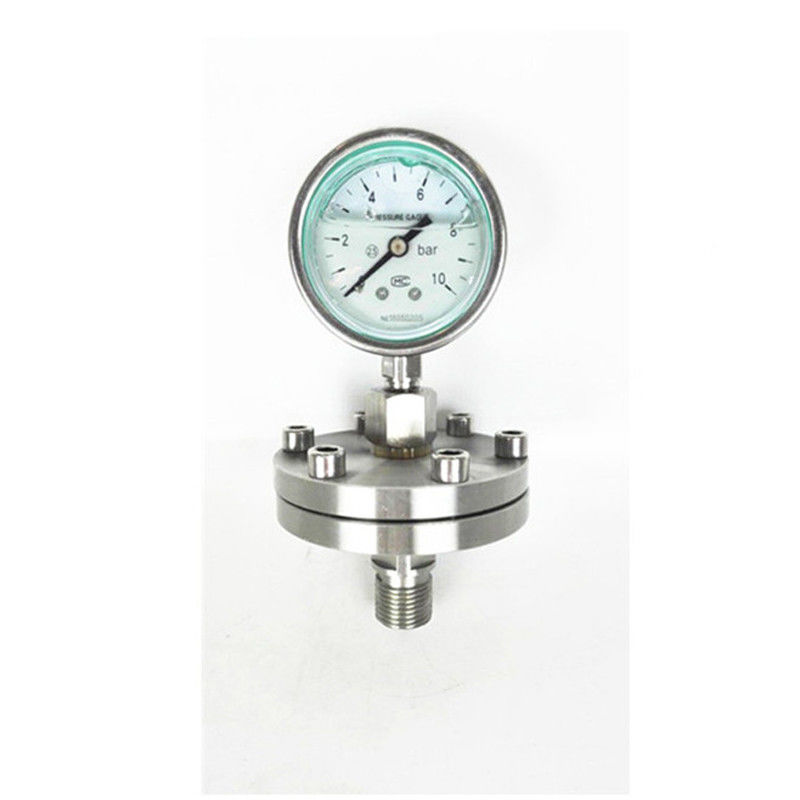

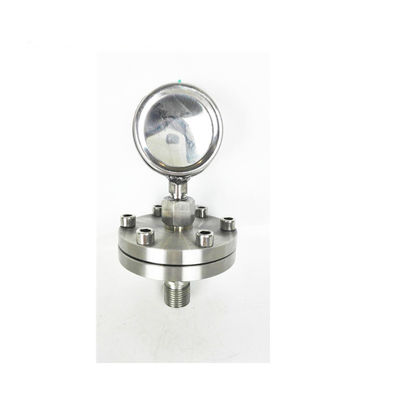

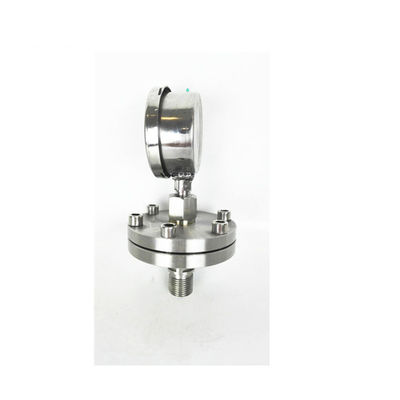

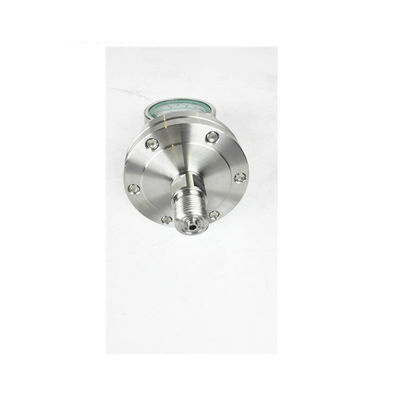

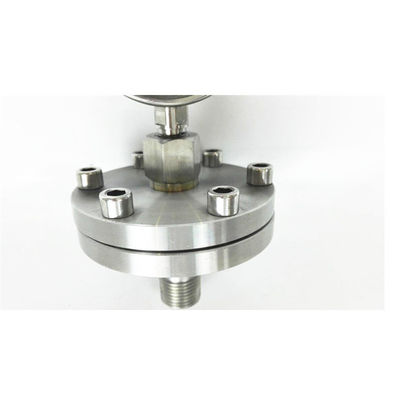

Detailed Images
Specification
| type | YTPF-100MC YTPF-150MC |
| apply | Measurement of health demand is higher and corrosive, high viscosity, easy to crystallization, easy solidified, a fixed seston medium pressure. |
| range(MPa) | 0-0.1~60series -0.1-0~2.4series |
| accuarcy | ±2.5% |
| Pipe size | According to customer required to provide any specifications of the interface and the flange |
| Sensitive element contact medium | Diaphragm, flange CrNi - stainless steel |
| shell | CrNi- stainless steel |
| Optimize/particularity | sanitary safety |
Application
Diaphragm pressure gauge is suitable for measuring strong corrosion, high temperature, high viscosity, easily crystallized, and medium pressure solid suspensions and must avoid measuring medium directly into the universal pressure gauge and prevent sediment accumulation and easy cleaning.
FAQ
Q:How long will you reply me?
A:We will contact you as soon as possible but within 12 hours
Q: Can I get some samples?
A: Yes, Sample order is available for quality check and market test. But you have to pay the express cost.
Q: How soon can you arrange your production?
A: Once getting your product confirmation and receiving the prepayment, the production will be started immediately.
Q: What's delivery time?
A: It usually takes about 3-5 working days for small order and 10-15 days for big order.
Q:How do you control your quality ?
A: Three inspection steps(of original, production, and finished goods) + good warranty service(1 year free to change a new one without any human damage factors).
Q: What certificates do you have ?
A:ISO9000, CE, Explosion-proof certification, RoHs ready. And before the delivery of goods, quality and safety inspection certification issued by third parts also can be offered.
Q:Could I visit your factory?
A:Very welcome! Fly to Xian Yang air port. It was a big pleasure for us.
Q: What's your warranty terms?
A: We offer 12 months warranty time.
Q:can you provide OEM & Customized service?
A:Yes, OEM and ODM are both available, we have the professional R&D dept which can provide professional solutions for you.
