| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | D2000 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | USD10~$25pc |
| Packaging Details: | Accuracy 0.1 water proof PH meter PH tester Standard export carton packing. |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Working Temp: | 20- 140 °F(-6.67 To 60°C) | Range Available: | -20 InHg To 15 Psig |
|---|---|---|---|
| Weight: | 0.25kg | Dial Size: | 4" (100mm) |
| Warranty: | 12 Months | Accuracy: | ±2% Of Full Scale |
| Process Connection: | 1/8"NPT | Product Name: | Differential Pressure Gauge |

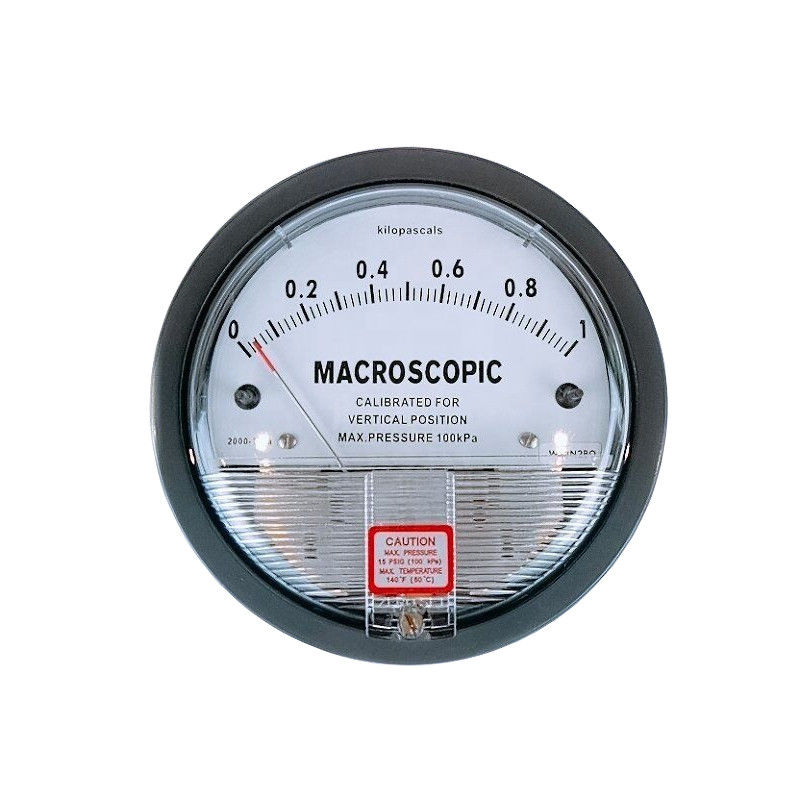

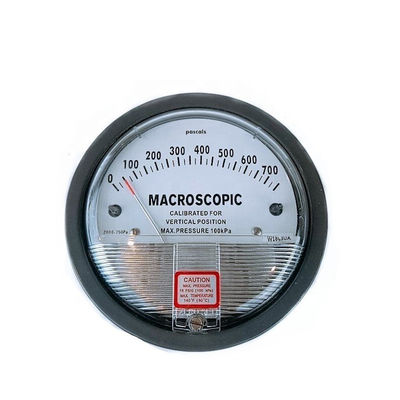

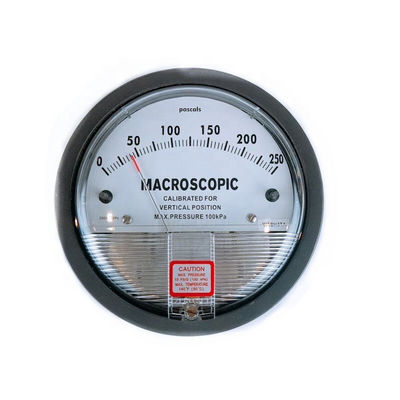

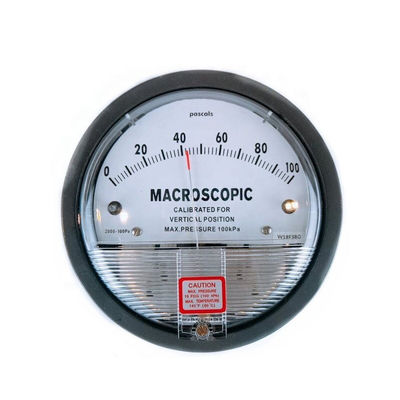

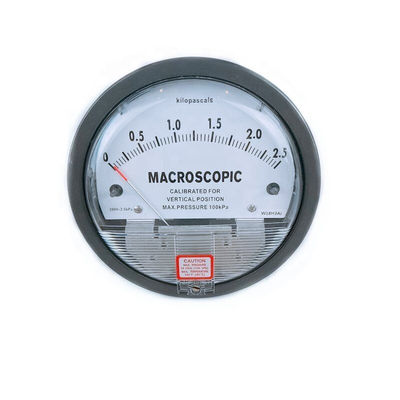

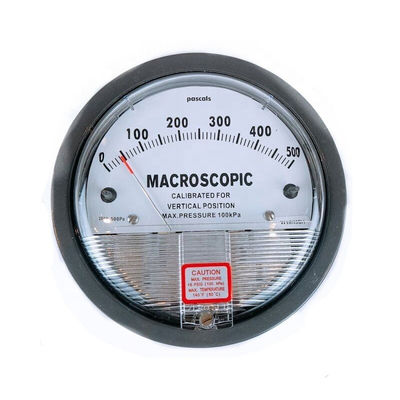

Description of air Micro differential pressure gauge manometer:
Tair Micro differential pressure gauge manometer used to measure fan and blower pressure, filter resistance, wind speed, furnace pressure, orifice plate differential pressure, bubbles water level and liquid amplifier or hydraulic system pressure. It using frictionless magnetic components, can rapidly measure the micro-pressure air or non-corrosive gases, including positive, negative (vacuum) or differential. No wear, hysteresis and clearance. Not filling, vaporization and freezing. This design has anti-vibration, anti-shake and high overpressure capability, you can guarantee access to high precision. The design impact, shock and overload protection.
Application of air Micro differential pressure gauge manometer:
For high accuracy-graranteed within 2% of full scale. indicate low air or non-corrosive gas pressures –eighter positive, negative(vacuum)of differential. The design resists shock ,vibration and over-pressures no Manometer fluid to evaporate, freeze or cause toxic or leveling problems, it’s inexpensive too .
Specifications of air Micro differential pressure gauge manometer:
Name: Micro differential pressure gauge for gas,air
Gauge Size: 4"dia. x 2-3/16"deep.
Accuracy: ±2% of Full scale ( ± 3% on 0,-100Pa,-125Pa,100mm and ± 4% on -00,-60pa,-6mm ranges)
Range available: -20 inHg to 15 psig, (-0.677 bar to 1.034 bar)
Over pressure : Relief Plug opens at approximately 25psig(1.72bar) standard gauges only
Temperature Limits: 20- 140 °F(-6.67 to 60°C)
Image details air Micro differential pressure gauge manometer:
Standard export carton packing.
3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
Q:How long will you reply me?
A:We will contact you as soon as possible but within 12 hours
Q: Can I get some samples?
A: Yes, Sample order is available for quality check and market test. But you have to pay the express cost.
Q: How soon can you arrange your production?
A: Once getting your product confirmation and receiving the prepayment, the production will be started immediately.
Q: What's delivery time?
A: It usually takes about 3-5 working days for small order and 10-15 days for big order.
Q:How do you control your quality ?
A: Three inspection steps(of original, production, and finished goods) + good warranty service(1 year free to change a new one without any human damage factors).
Q: What certificates do you have ?
A:ISO9000, CE, Explosion-proof certification, RoHs ready. And before the delievry of goods, quality and safety inspection certification issued by third parts also can be offered.
Q:Could I visit your factory?
A:Very welcome! Fly to Xian Yang air port. It was a big pleasure for us.
Q: What's your warranty terms?
A: We offer 12 months warranty time.
Q:can you provide OEM & Customized service?
A:Yes, OEM and ODM are both available, we have the professional R&D dept which can provide professional solutions for you.
