| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | YE |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | USD8.5~$65pc |
| Packaging Details: | Accuracy 0.1 water proof PH meter PH tester Standard export carton packing. |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |

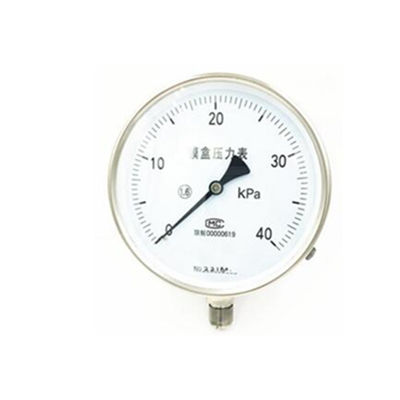

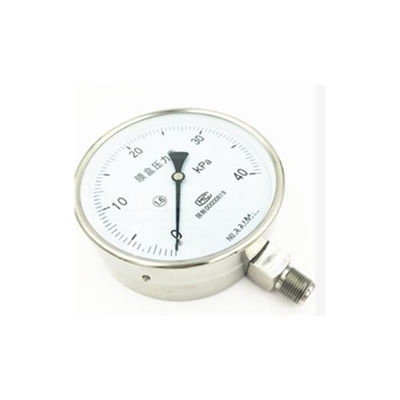

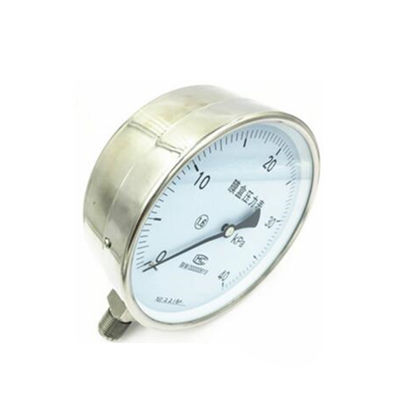

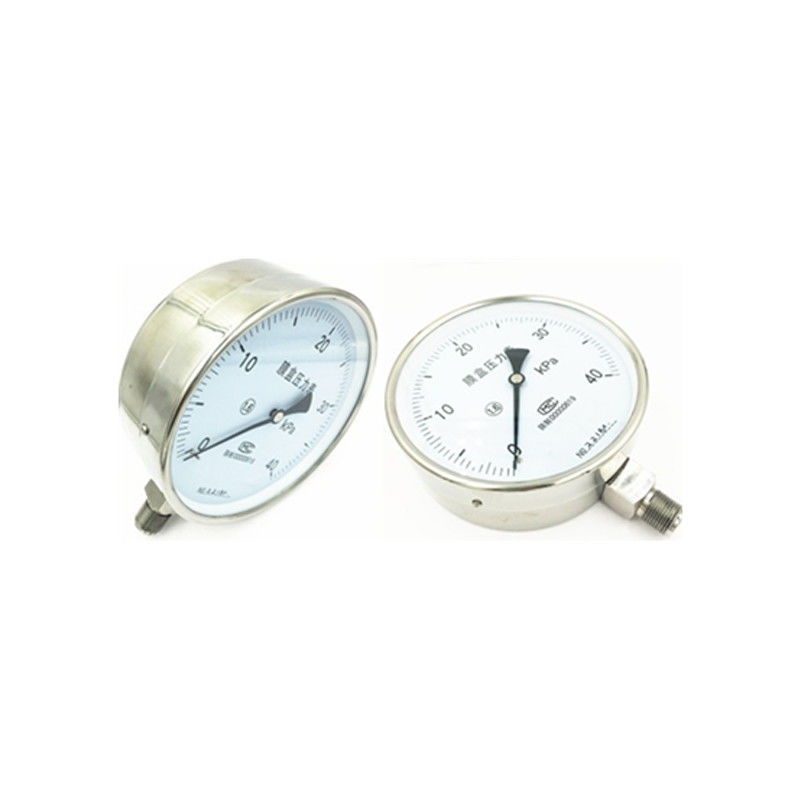

| Product Name: | Hot Sale Stainless Steel Capsule Manometer/ Pressure Gauge | Accuracy: | 1.6,1.0.2.5 |
|---|---|---|---|
| Pressure Range: | 0-100Mpa | Process Connection: | NPT,BSP,PT,R ,1/4,1/2,1/8 |
| Application: | Water Oil Air Pressure Measurement | Oem: | Yes |
hot sale stainless steel capsule manometer/ pressure gauge Ordering guide
Pressure range:
DN:
Accuracy:
Thread:
Quantities:
Description hot sale stainless steel capsule manometer/ pressure gauge :
Capsule Pressure Gauges use diaphragm as a sensitive element to measure micro pressure. Measurement corrode copper alloy, non-explosive gas micro-pressure and negative pressure .Widely used in ventilation boilers, other similar devices on gas piping, combustion devices.
Capsule Pressure Gauges measuring range -80 ~ 60000Pa, but need to use different ranges of diaphragm pressure gauge Depending on the pressure, the pressure in -1600Pa ~ 60000Pa suggested the use of disc diaphragm pressure gauge, if the pressure in -80Pa ~ 1000Pa suggested the use of the middle of the rectangular diaphragm pressure gauge.
hot sale stainless steel capsule manometer/ pressure gauge Structure principle
Capsule Pressure Gauges consist of the measuring system (including joint, bellows, etc.), transmission (including pull-bar mechanism, gear transmission mechanism), indicating parts (including pointer and dial) and housing (including Case, bushing and tables glass) . Instrument working principle is based on a bellows under pressure measured medium, its free end produce the corresponding elastic deformation, and then the transmission gear transmission mechanism and to enlarge the pointer fixed on the gear shaft will be measured by value indicated on the dial. There are zero means you can easily adjust the zero position.
hot sale stainless steel capsule manometer/ pressure gauge parameter
1.Accuracy class: 1.6, 2.5,1.0(custom)
2.Measuring range: (Kpa) (custom)
0~1.6;0~2.5;0~4;
0~6;0~10;0~16;
0~25;0~40;-1.6~0;
-2.5~0;-4~0;-6~0;
-10~0;-16~0;-25~0;
-40~0;-0.8~0.8;
-1.2~1.2;-2~2;-3~3;
-5~5;-8~8;-12~12;
-20~20
3. Use of environmental conditions: -25 ~ 55℃, relative humidity less than 80%
4. Anti-vibration work environment: V · H · Level 3
5. Weight: 0.5kg
Standard export carton packing.
3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
Q:How long will you reply me?
A:We will contact you as soon as possible but within 12 hours
Q: Can I get some samples?
A: Yes, Sample order is available for quality check and market test. But you have to pay the express cost.
Q: How soon can you arrange your production?
A: Once getting your product confirmation and receiving the prepayment, the production will be started immediately.
Q: What's delivery time?
A: It usually takes about 3-5 working days for small order and 10-15 days for big order.
Q:How do you control your quality ?
A: Three inspection steps(of original, production, and finished goods) + good warranty service(1 year free to change a new one without any human damage factors).
Q: What certificates do you have ?
A:ISO9000, CE, Explosion-proof certification, RoHs ready. And before the delievry of goods, quality and safety inspection certification issued by third parts also can be offered.
Q:Could I visit your factory?
A:Very welcome! Fly to Xian Yang air port. It was a big pleasure for us.
Q: What's your warranty terms?
A: We offer 12 months warranty time.
Q:can you provide OEM & Customized service?
A:Yes, OEM and ODM are both available, we have the professional R&D dept which can provide professional solutions for you.
