| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | D2000 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | USD10~$25pc |
| Packaging Details: | Accuracy 0.1 water proof PH meter PH tester Standard export carton packing. |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Working Temp: | 20- 140 °F(-6.67 To 60°C) | Range Available: | -20 InHg To 15 Psig |
|---|---|---|---|
| Weight: | 0.25kg | Dial Size: | 4" (100mm) |
| Warranty: | 12 Months | Accuracy: | ±2% Of Full Scale |
| Process Connection: | 1/8"NPT | Product Name: | Micro Differential Pressure Gauge |

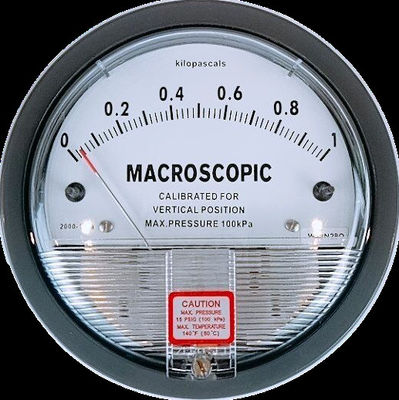

high accuracy Micro differential pressure gauge for air condition
Description
The micro differential pressure gauge used to measure fan and blower pressure, filter resistance, wind speed, furnace pressure, orifice plate differential pressure, bubbles water level and liquid amplifier or hydraulic system pressure. It using frictionless magnetic components, can rapidly measure the micro-pressure air or non-corrosive gases, including positive, negative (vacuum) or differential. No wear, hysteresis and clearance. Not filling, vaporization and freezing. This design has anti-vibration, anti-shake and high overpressure capability, you can guarantee access to high precision. The design impact, shock and overload protection.

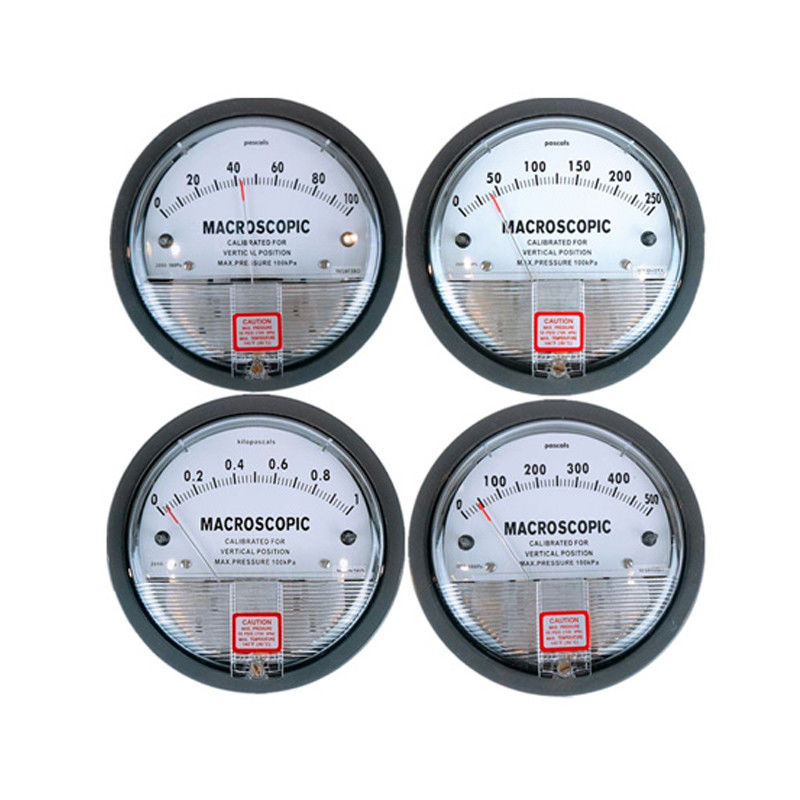

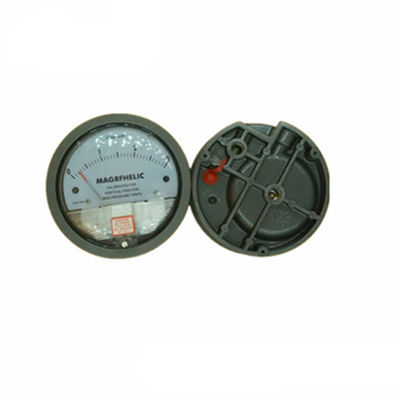

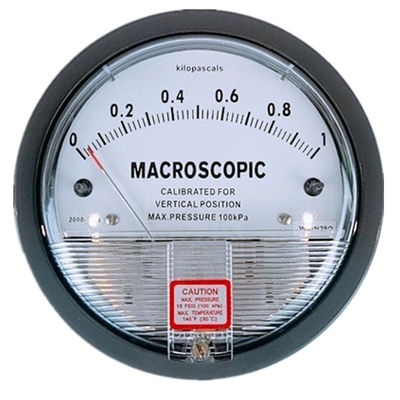

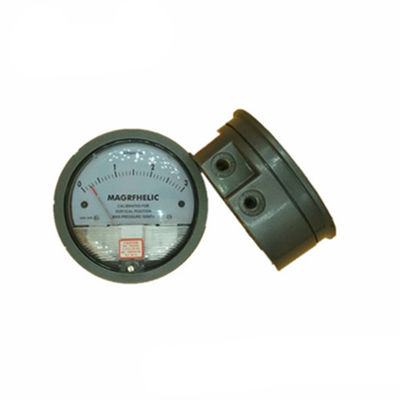

Detailed Images
Specification
| high accuracy Micro differential pressure gauge for air condition | |
| Name | Differential pressure gauge |
| Gauge Size | 4"dia. x 2-3/16"deep. |
| Accuracy | ±2% of Full scale ( ± 3% on 0,-100Pa,-125Pa,100mm and ± 4% on -00,-60pa,-6mm ranges) |
| Range available | -20 inHg to 15 psig, (-0.677 bar to 1.034 bar) |
| Over pressure | Relief Plug opens at approximately 25psig(1.72bar) standard gauges only |
| Temperature Limits | 20- 140 °F(-6.67 to 60°C) |
Applications
For high accuracy-graranteed within 2% of full scale. indicate low air or non-corrosive gas pressures –eighter positive, negative(vacuum)of differential. The design resists shock ,vibration and over-pressures no Manometer fluid to evaporate, freeze or cause toxic or leveling problems, it’s inexpensive too .
