| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | YK-100B |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | USD35~$45pc |
| Packaging Details: | Accuracy 0.1 water proof PH meter PH tester Standard export carton packing. |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Pressure Range: | -0.1~0MPa 0~100MPa | Product Name: | High Precision YK-100 Digital Pressure Gauge For Liquid And Gas |
|---|---|---|---|
| Analog Output: | 4-20MA | Data Output: | RS485, RS232 |
| Power Supply: | Rechargeable Battery | Process Connection: | M20*1.5 |
| Display: | 5 Digits LED | Over Load: | 1.5-3 Times |
| Medium Temperature: | -40℃~70℃ | Accuracy: | 0.1%FS, 0.05%FS, 0.02%FS, 0.01%FS |

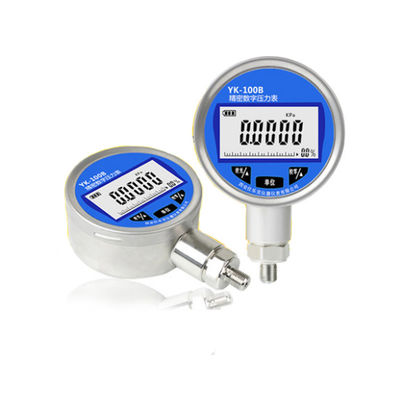

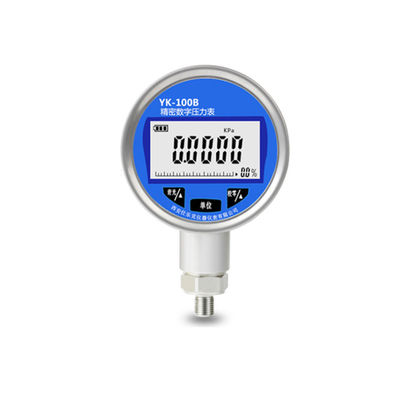

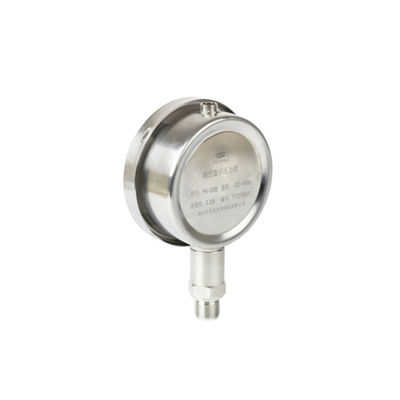

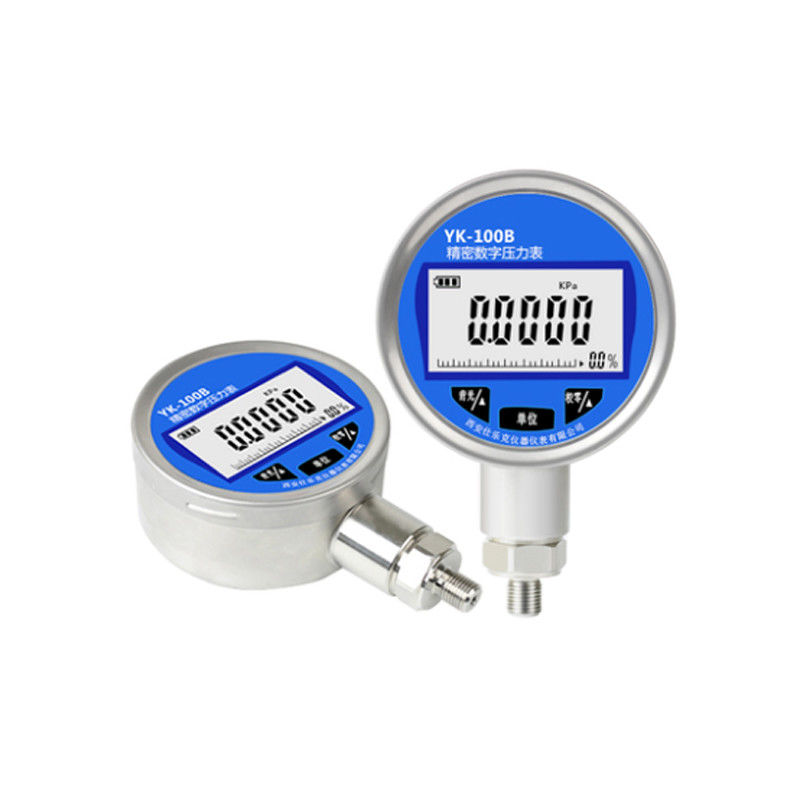

High Precision YK-100B Digital Pressure Gauge For Liquid and Gas
Description
YK-100B digital precision presure gauge is a new product of our company, is mainly designed and produce for measurement work, with characteristic of high acquisition frequency, good stability, small precision loss, is most popular with the measuring workers.
Detailed Images
Specification
| High Precision YK-100B Digital Pressure Gauge For Liquid and Gas | |
| Pressure range | -0.1~0MPa 0~100MPa |
| Analog output | 4-20MA |
| Data output | RS485, RS232 |
| Power supply | Rechargeable battery |
| Process connection | M20*1.5 |
| Display | 5 digits LED |
| Over load | 1.5-3 times |
| Medium temperature | -40℃~70℃ |
| Hysteresis | 0.01% |
| Accuracy | 0.1%FS, 0.05%FS, 0.02%FS, 0.01%FS |
| Isolation technology | signal isolation technique, anti electromagnetic interference and radio frequency technology |
| Zero | zero automatically settled, don't need for calibration |
| Progress display | visual display of pressure percentage |
| Dimension | φ100mm × 34mm |
| Weight | 0.75kg |
Features
1.Visual display the bar charts of pressure percentage
2.Can realize the self calibration correction
3.Acquisition speed can be set to (0.3~10) s/time
4.The battery life of up to 5 years
5.The technology of signal isolation and Anti electromagnetic and Radio frequency interference
6.Zero self stabilization technology, temperature compensation technology
Selection Guide
| YK-100B | Code | Accuracy | ||
| A | 0.05 | |||
| B | 0.1 | |||
| C | 0.2 | |||
| D | Flange | |||
| E | Special Accuracy | |||
| Code | Connection mode | |||
| 1 | M20*1.5 | |||
| 2 | 1/2NPT | |||
| 3 | M14*1.5 | |||
| 4 | G1/2 | |||
| 5 | Special connector | |||
| Code | Pressure type | |||
| G | Gage pressure | |||
| D | Differential pressure | |||
| A | Absolute pressure | |||
| YK-100 | A | 1 | G | |
