| Place of Origin: | Made In China |
| Brand Name: | NanCon |
| Certification: | CE |
| Model Number: | YTN |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | USD10~$68pc |
| Packaging Details: | Accuracy 0.1 water proof PH meter PH tester Standard export carton packing. |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Pressure Range: | -0.1-0-60-250Mpa | Accuracy: | 1.0/1.6/2.5 Grade |
|---|---|---|---|
| Liquid Filled: | Glycerine Or Silicone Oil Filled | DN: | 60/100/150/200 |
| Use Temperature: | -40 To70°C | Connecting Thread: | M20*1.5,1/2NPT,1/4NPT Or Custom |

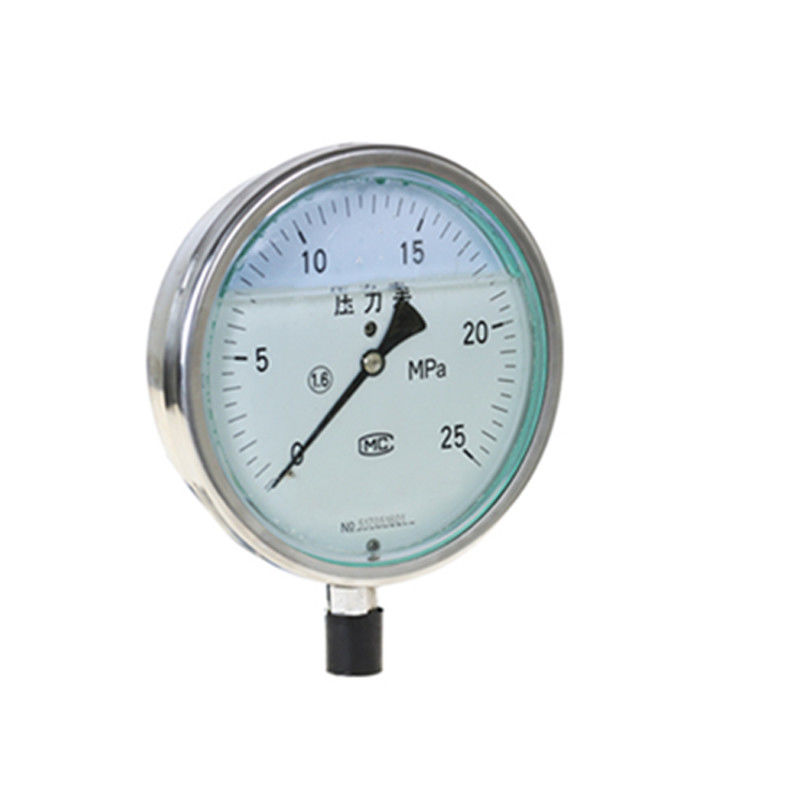

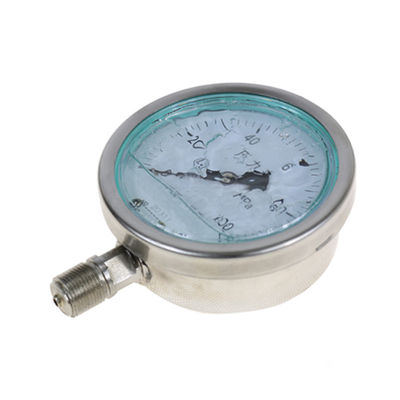

| Product Name: | Dial Stainless Steel Liquid Filled Vacuum Pressure Gauge Manometer |
Description of dial Stainless steel liquid filled vacuum pressure gauge manometer :
YN-series oil filled stainless steel pressure gauge with direct contact,fittings and pressure sensitive element of SUS316 material, has strong anti-corrosion properties of the measured medium, at the same time, housing,machines and other core components are all 1Crl8Ni9Ti, OCrl8Ni 12M02Ti material. Hermetically structure, the outer surface of the entire spray PTFE coating, has the best corrosion resistance to environmental capacity,so that the product is suitable for corrosive medium stainless steel element detection and harsh external corrosive environments.
Parameter of dial vacuum pressure gauge manometer :
1.Accuracy class: 1.6, 2.5,1.0(custom)
2.Measuring range: (Mpa) (custom)
0-0.16 ;0-0.25; 0-0.1; 0-0.4;
0-0.6; 0-1.6; 0-2.5; 0-1;
0-40;0-60;0-100;0-160;
0-250;0--400;0-600;
-0.1-0; -0.1-0.06; -0.1-0.15; -0.1-0.3;
-0.1-0.5; -0.1-0.9; -0.1-1.5; -0.1-2.4.
3. Parts material: SUS316, SUS316L, 1Crl8Ni9Ti(custom)
4. The instrument nominal diameter: Φ60mm Φ100mm Φ150mm( custom)
5. Connector thread size: M20X1.5 (G3 / 8 ", Gl / 4", NPTl / 2 "or custom)
6.Working conditions:
(1) Ambient temperature: -40-70 ℃
(2) Working pressure: Static load: with a scale value 3/4 alternating load: The
scale value short 2/3 pressure: the scale value
Application of dial manometer:
Industrial, petroleum, chemical, heating systems, piping, instrumentation,
pneumatic line and auxiliary equipment.
Standard export carton packing.
3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
