| Place of Origin: | Made In China |
| Brand Name: | NanCon |
| Certification: | CE |
| Model Number: | YTFN |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | USD10~$25pc |
| Packaging Details: | Accuracy 0.1 water proof PH meter PH tester Standard export carton packing. |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Product Name: | 250bar Bourdon Tube Liquid Filled Pressure Gauge Stainless Steel | Accuracy: | 1.6,1.0,2.5 |
|---|---|---|---|
| Pressure Range: | -0.1~0~100Mpa | Pressure Element: | Bourdon Tube |
| Dial Diameter: | 60,100,150mm | Shell Material: | 304SS |
| Connection Thread: | M20*1.5,1/2NPT,1/4NPT,G3/8,G1/2,etc | Type: | Dry,liquid Filled |
| Element Material: | 304SS,316L | Mount: | Lower,back |
250bar high temperature bourdon tube manometer liquid filled pressure gauge stainless steel
Description
YTFN stainless steel pressure gaugemanufactured by Xian Shelok Instrument Technology Co.,Ltd.It consists of a pressure guiding system (including joints, spring tubes, current limiting screws, etc.), a gear transmission structure, a display device (pointer and dial), and an outer casing (including a case, a cover, a window, etc.). The outer casing is airtight and can effectively protect the internal parts from the environment and dirt.
Specification
| Accuracy | 2.5, 1.6, 1.0 (other can be customized) | Measurement range | -0.1-0-100Mpa(other can be customized) |
| Ingress protection | IP65(higher grade can be customized) | Pressure unit |
MPa,KPa,bar,mmHG,inHg, Kg/cm²,mmH2O,mmHg |
| Model | SLK-YTFN | Dial diameter | 60,100,150mm(other can be customized) |
|
Element material |
SUS316, SUS316L, 1Crl8Ni9Ti(other can be customized) | Case Material | Stainless Steel SUS 304(other can be customized) |
| Thread | M20 * 1.5,G3 / 8",G1/2(other can be customized) | Ambient temperature | - 40 ~ 70° C,0-600 ° C |
| Type | Dry,liquid filled | Mount | lower,back |
| Movement | 304SS | Thread material | 304SS,316L |
| Pressure static load | used to measure the upper limit of 3 / 4 alternating load,used to the upper limit of measurement 2/3 the scale value | ||

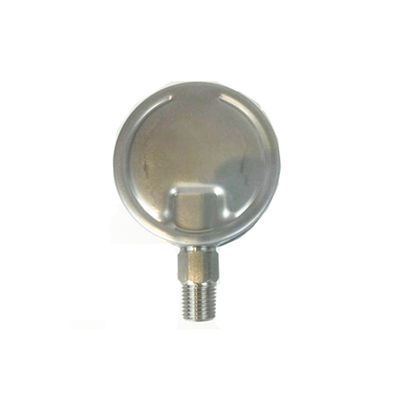

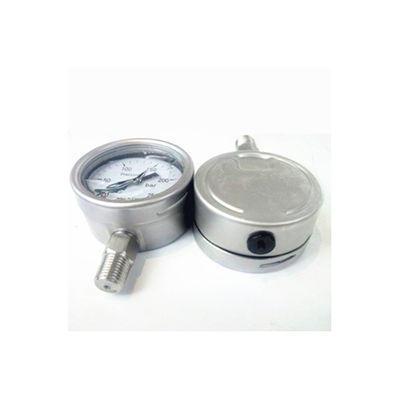

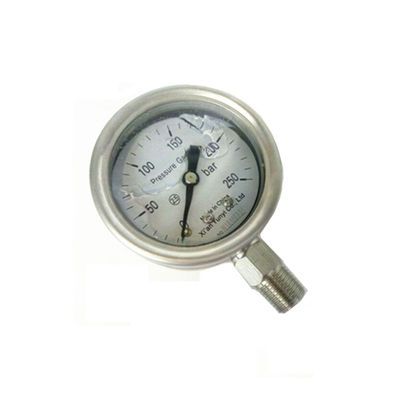

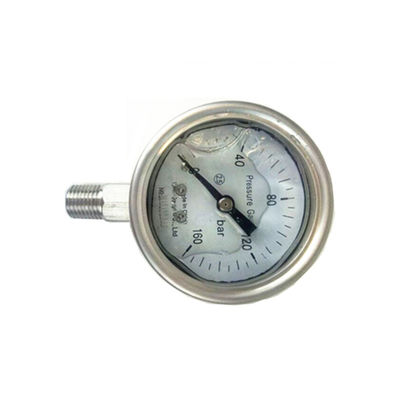

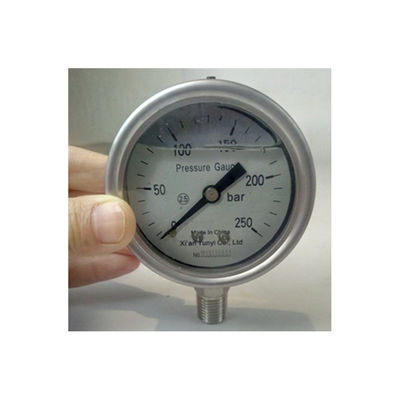

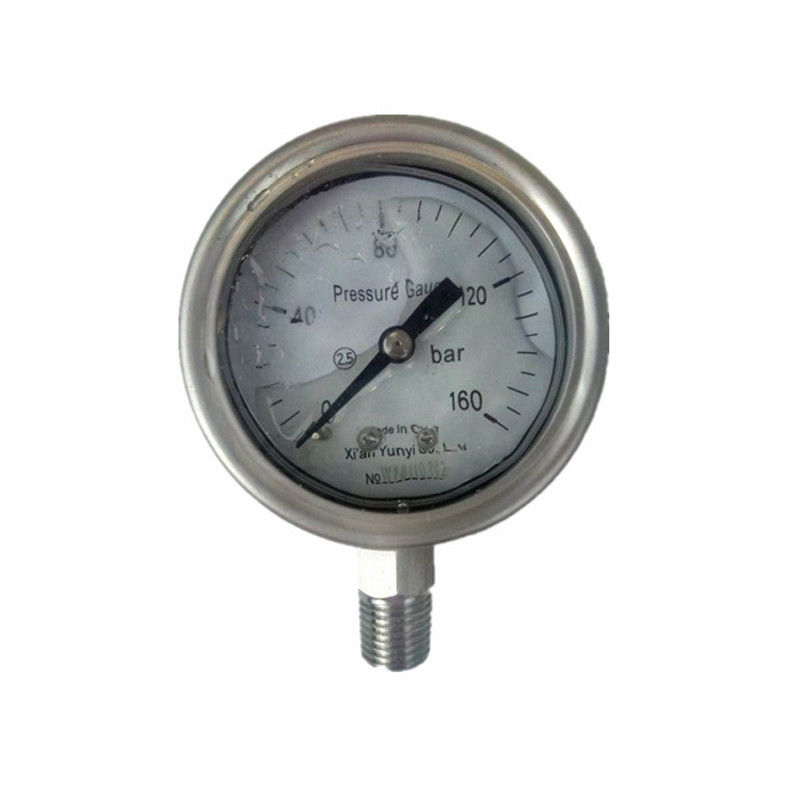

Detailed Images
High temperature module:
Applications
Industrial, petroleum, chemical, heating systems, piping, instrumentation, pneumatic line and auxiliary equipment.
Selection Guide
Y 1 2 - 3 4 / 5 / 6 / 7 / 8 / 9
Y - Pressure measuring instrument
1 - Element type:
T - bourdon tube
2 - Function:
Z - Resistance
F - Antisepsis
FN - Antisepsis Heat shock
XC - Magnetic snap action electric contact
SZ - Three pointer
3 - Dial diameter:
40 - 40mm
60 - 60mm
100 - 100mm
150 - 150mm
4 - Case material:
H - All stainless steel
S - all plastic
B - explosive-proof
5 - Mounting
Z - Axial(Back)
J - Radial(Bottom)
ZT - Axial(Back connection with edge)
JT - Radial(Bottom connection with edge)
6 - Temperature
S - Standard(-40~70℃)
H - High temperature( 0~200℃)
7 - Wetted part material:
316L - Stainless steel
M - Monel metal
HC - Hastelloy(H276C)
Ta - Tantalum
FP - F4 Plated
FL - F4 Lining
8 - Measuring range:
-0.1~0,0.06,0.15,0.3MPa
-0.1~0.5,0.9,1.5,2.4MPa
0~0.1,0.16,0.25,0.4,0.6MPa
0~1,1.6,2.5,4,6MPa
0~10,16,25,40,60,100MPa
9 - Connection:
Thread
Flange(Standard,type,material)
