| Place of Origin: | Made In China |
| Brand Name: | NanCon |
| Certification: | CE |
| Model Number: | SP102 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | USD55~$105pc |
| Packaging Details: | Accuracy 0.1 water proof PH meter PH tester Standard export carton packing. |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Product Name: | Hydraulic Digital Manometer Pressure Gauge | Gauge Pressure: | 0~1KPa, 100Kpa, 1MPa...100MPa |
|---|---|---|---|
| Reliability: | ≤±05%FS Per Year | Ambient Temperature: | -40~+85°C |
| Overload Pressure: | ≤10MPa: 200% Of FS; >10MPa: 150% Of FS | Accuracy: | ≤±0.25%FS, ≤±0.5%FS |
| Medium: | Gas Or Water Compatible With 316SS | Power Supply: | 9~24VDC |

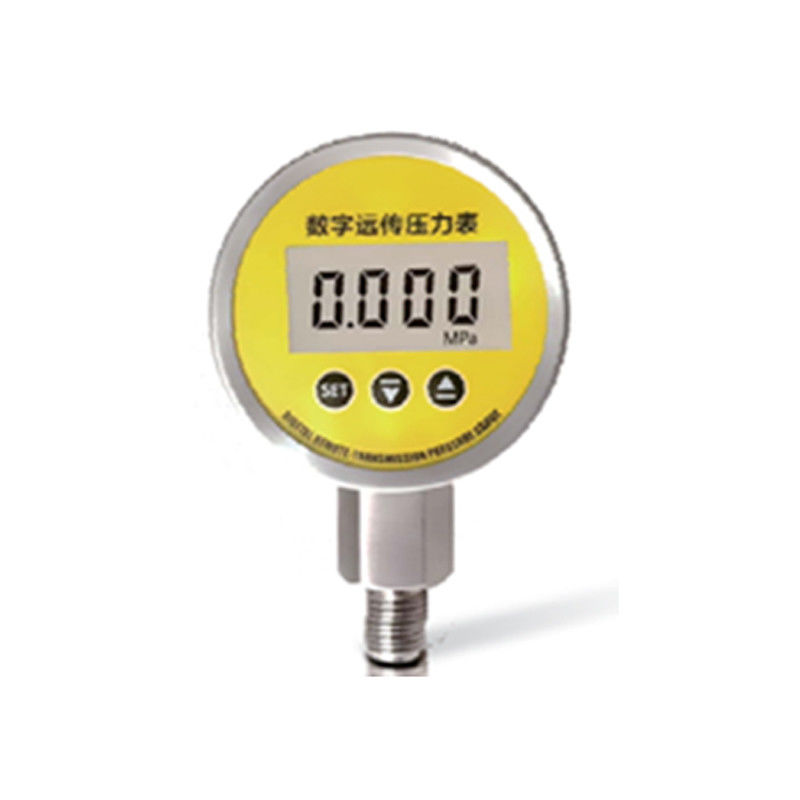

This remote hydraulic digital manometer pressure gauge with 4 ~ 20mA remote signal output, or RS485 signal output is based on the standard MODBUS RTU485 communication protocol,used four digits to show real-time pressure.The transmission distance of pressure signal can be more than 500 meters.The series of digital remote pressure gauge with built-in pressure sensor, has powerful function.Users can change the pressure unit, approve zero error, correct filter constant, etc. Using 304 stainless steel shell and connector, waterproof cable appears, IP65, it has a very wide range of media applicability.The product is mainly used to replace the traditional pointer pressure gauge or the pressure transmitter with display.
Good anti-seismic capability, long term reliability, and long working life
4~20mA or RS485 optional
Four digits LED display
High capacity of resisting disturbance, output signal >500m
Dial Diameter 60mm with Axial / radial installation ways
Wide measuring range from vacuum to 60MPa, and has a positive and negative gauge range
Equipment automation line
Heating system
Frequency conversion water supply
Hydraulic and pneumatic systems
Instead of mechanical pressure switch
Instead of the traditional remote pressure gauge
Shelok considers itself not only a manufacture but more conprehensively a provider of industry specific customer-oriented solutions.Our profound understanding of product application and strong technical backgrounds ensure you the best product solution and achieve a greater success.
Xi'an Shelok Instrument Technology co.,ltd is a professional R&D center and manufacture of measuring instruments.And here's a variety of products for you choice: pressure transmitters,temperature transmitters,flow transmitters,weighing instruments and so on.Our products have been made by advanced technology, with high quality, fast delivery period, which have attracted so many domestic and foreign customers.
Q:How long will you reply me?
A:We will contact you as soon as possible but within 12 hours.
Q: Can I get some samples?
A: Yes, Sample order is available for quality check and market test. But you have to pay the express cost.
Q: How soon can you arrange your production?
A: Once getting your product confirmation and receiving the prepayment, the production will be started immediately.
Q: What's delivery time?
A: It usually takes about 3-5 working days for small order and 10-15 days for big order.
Q:How do you control your quality ?
A: Three inspection steps(of original, production, and finished goods) + good warranty service(1 year free to change a new one without any human damage factors).
Q: What certificates do you have ?
A:ISO9000, CE, Explosion-proof certification, RoHs ready. And before the delievry of goods, quality and safety inspection certification issued by third parts also can be offered.
Q:Could I visit your factory?
A:Very welcome! Fly to Xian Yang air port. It was a big pleasure for us.
Q: What's your warranty terms?
A: We offer 12 months warranty time.
Q:can you provide OEM & Customized service?
A:Yes, OEM and ODM are both available, we have the professional R&D dept which can provide professional solutions for you.
