| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | YK-100 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | USD185~$405pc |
| Packaging Details: | Accuracy 0.1 water proof PH meter PH tester Standard export carton packing. |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Product Name: | Digital Air Oil Hydraulic Water Mpa Pressure Gauge Manometer | Measuring Range: | -100KPa~260MPa |
|---|---|---|---|
| Accuracy: | 0.2,0.4 | Explosion-proof Grade: | ExibIIBT6 |
| Display: | 5 Characters Display+analog Streamer | Overload Pressure: | 1.5to3 Times Measuring Range |
| Off Current: | <10μA | Power Supply: | 3.6V High Power Lithium Battery Or Rechargeable Battery |
| Medium Temperature: | -40~90℃ | Connection: | M20*1.5(Male) |

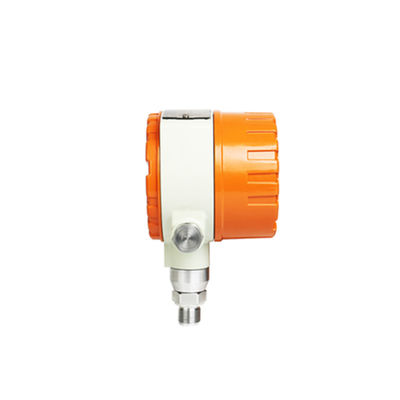

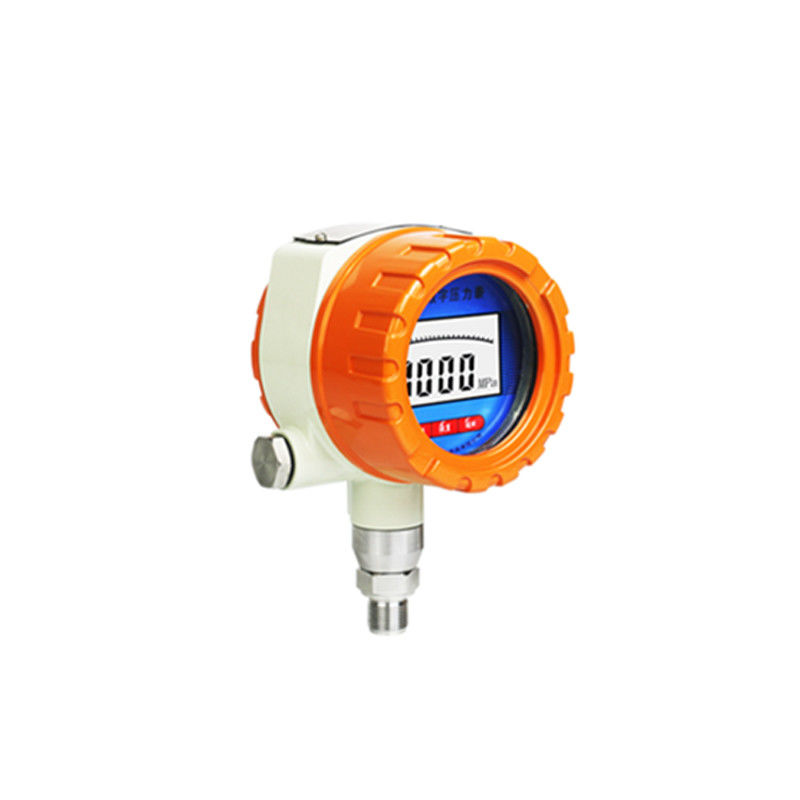

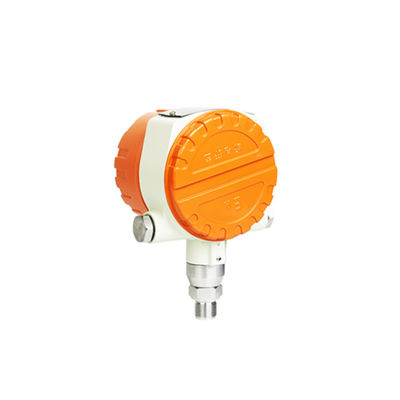

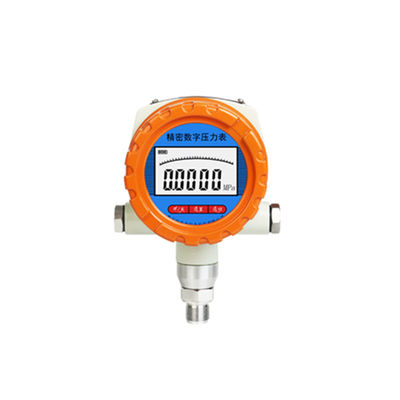

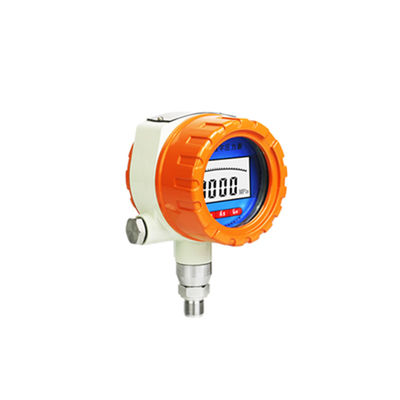

Yk-1 explosion-proof digital air oil hydraulic water mpa pressure gauge manometer is made of imported sensor, with superior performance, high precision, anti-corrosion, anti-impact, anti-vibration and high stability.The signal processing circuit is made up of the latest ultra-low power processor, signal processing chip and power management chip. It is powered by high-capacity and high-performance lithium battery without external power supply.The 5 digit display and simulation, according to the percentage readings convenient intuitive, the product accuracy can reach 0.05, suitable for general pressure gauge, precision pressure gauge and pressure transmitter calibration and verification, more can take the place of traditional mechanical pointer on-site measuring pressure gauge.
Explosion-proof housing,sturdy and durable
Easy to operate
Can be available for gas water oil
100mm dial plate,5 characters LED display
Battery can be used for 5 years with micro power,low battery indicator
One-button switching unit
| Specification YK-1 | |||
| Measuring range | -100KPa~260MPa | Explosion-proof grade | ExibIIBT6 |
| Accuracy | 0.2,0.4 | Connection | M20*1.5(Male) |
| Off current | <10μA | Medium temperature | -40~90℃ |
| Display | 5 characters display+analog streamer indicate | ||
| Overload pressure | half as much again to triple measuring range | ||
| Power supply | 3.6V high power lithium battery or rechargeable battery | ||
| Pressure unit | mmH2O,mmHg,psi,kPa,MPa,Pa,mbar,bar,etc | ||
Shelok considers itself not only a manufacture but more conprehensively a provider of industry specific customer-oriented solutions.Our profound understanding of product application and strong technical backgrounds ensure you the best product solution and achieve a greater success.
Xi'an Shelok Instrument Technology co.,ltd is a professional R&D center and manufacture of measuring instruments.And here's a variety of products for you choice: pressure transmitters,temperature transmitters,flow transmitters,weighing instruments and so on.Our products have been made by advanced technology, with high quality, fast delivery period, which have attracted so many domestic and foreign customers.
Q:How long will you reply me?
A:We will contact you as soon as possible but within 12 hours.
Q: Can I get some samples?
A: Yes, Sample order is available for quality check and market test. But you have to pay the express cost.
Q: How soon can you arrange your production?
A: Once getting your product confirmation and receiving the prepayment, the production will be started immediately.
Q: What's delivery time?
A: It usually takes about 3-5 working days for small order and 10-15 days for big order.
Q:How do you control your quality ?
A: Three inspection steps(of original, production, and finished goods) + good warranty service(1 year free to change a new one without any human damage factors).
Q: What certificates do you have ?
A:ISO9000, CE, Explosion-proof certification, RoHs ready. And before the delievry of goods, quality and safety inspection certification issued by third parts also can be offered.
Q:Could I visit your factory?
A:Very welcome! Fly to Xian Yang air port. It was a big pleasure for us.
Q: What's your warranty terms?
A: We offer 12 months warranty time.
Q:can you provide OEM & Customized service?
A:Yes, OEM and ODM are both available, we have the professional R&D dept which can provide professional solutions for you.
