| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | YK-60 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | USD45~$68pc |
| Packaging Details: | Accuracy 0.1 water proof PH meter PH tester Standard export carton packing. |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Item: | Low Cost Digital Pressure Gauge With Plastic Case | Pressure Range: | -100KPa ~600bar |
|---|---|---|---|
| Accuracy: | 0.25%,0.5% | Overload Capacity: | 200% |
| Display: | 4 Digital Dynamic Display And Simulation Of Light Indicator | Overload: | 1.5-3 Times Of Full Scale |
| Power Supply: | 7.2v High Energy Lithium Battery Or Rechargeable Battery | Medium Temp: | -20~50℃ |
| Process Connection: | M20*1.5, 1/4NPT, 1/2NPT | Ambient Temp: | (-10~60)℃ |

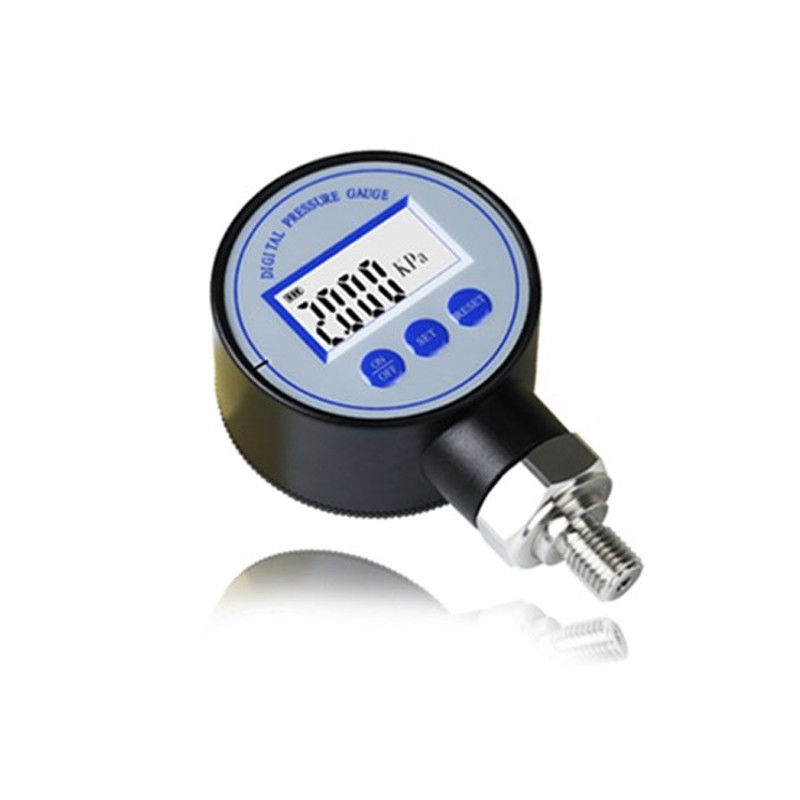

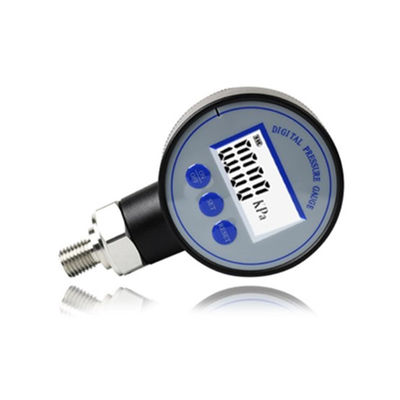

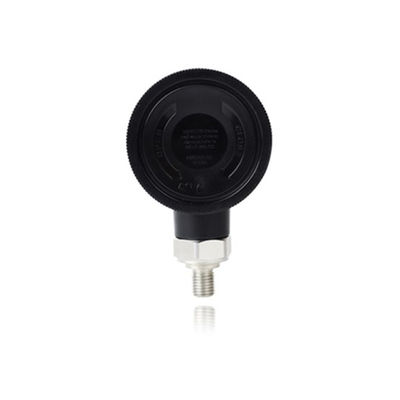

Yk-60 Series Intelligent Pressure Gauges have full electronic structure
and use battery-powered, so they are very easy for on-site installation.
Specifically, front-end high-precision piezoresistive pressure sensor is
used and the output signal is processed by the high-precision, low
temperature drift amplifier, then sent into the high-precision A/D
converter to be converted into digital signal, after computing and
processing the actual pressure value is showed on the LCD display.
1) Instrument can be stored and used in appropriate environmental temperature of -10 ℃ ~ 60 ℃, and the humidity is less than 80% of the occasions.
2) Instrument joints should be concentricand level when connecting pipe.
3) Please use 9V alkaline batteries when replace the battery.
◆ large-screen LCD display, high resolution, ignoring the error.
◆ Peak Hold function, record the maximum pressure values during the measurement
◆ Pressure on the percentage of dynamic display
◆ Choice of five engineering units: psi, bar, kpa, kg / c ㎡ Mpa
◆ Choose 0 ~ 15min auto-off feature.
◆ Parameter correction, correct zero and error in field application.
◆ Limit the upper and lower range
◆ Sampling rate: 4 times / sec
