| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | YK-80 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | USD145~$368pc |
| Packaging Details: | Accuracy 0.1 water proof PH meter PH tester Standard export carton packing. |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Product Name: | 80mm Digital Pressure Gauge Manometer Price | Range: | -0.1~0~100MPa |
|---|---|---|---|
| Accuracy: | 0.1 ,0.2 ,0.25,0.4 ,0.5 | Overload Capacity: | 1.5 Times Full |
| Pressure Type: | Vacuum,Gauge,Absolute Pressure | Response Time: | ≤50ms |
| Display: | Up To 5 Dynamic Pressure Display | Medium Temperature: | -20~80°C |
| Relative Humidity: | ≤80% |
80mm digital pressure gauge manometer price
Description
YK series The digital pressure gauge is mainly composed of a housing, a pressure sensor and a signal processing circuit, and has the advantages of high precision, good corrosion resistance, impact resistance, shock resistance, small temperature drift, and good stability; the micro power processor can be used to continuously Use time.

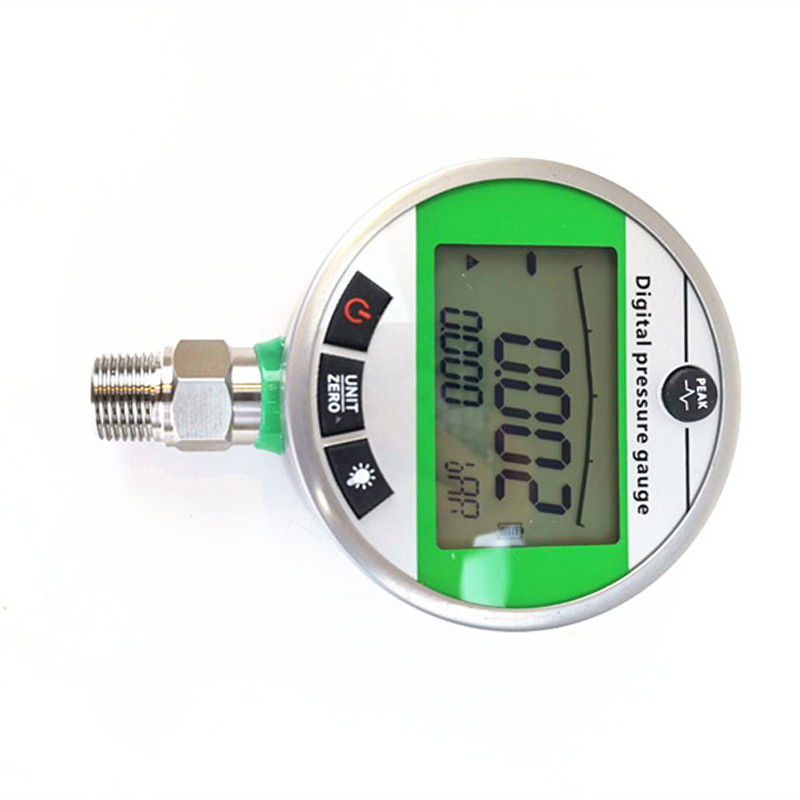

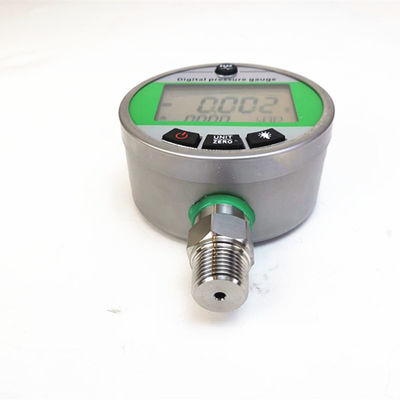

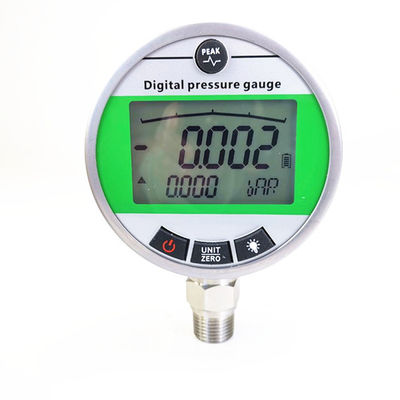

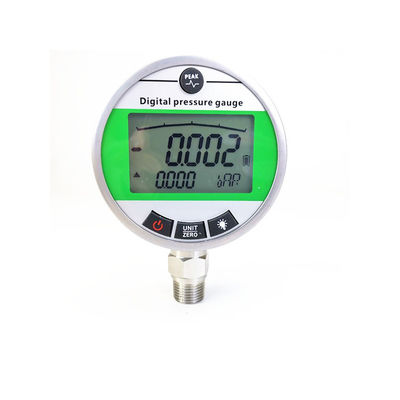

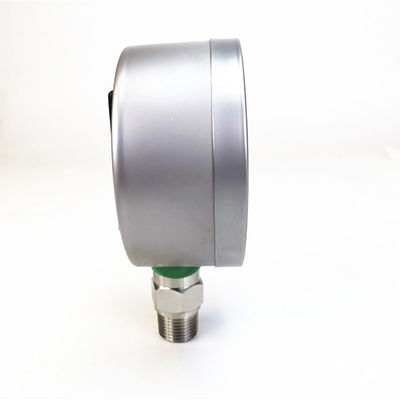

Detailed Images
Specification
| Range | -0.1~0~100MPa | Accuracy | 0.1 ,0.2 ,0.25,0.4 ,0.5 |
| Overload capacity | 1.5 times full | Pressure Type | Vacuum,Gauge,Absolute Pressure |
|
Response time:
|
≤50ms
|
Battery voltage | AAA 7 batteries (3V),Lithium battery,External 220V/24V |
| Display |
up to 5 dynamic pressure display
|
Measuring medium: |
water, gas, etc. compatible with stainless steel
|
| Medium temperature: | -20~80°C | Relative humidity | ≤80% |
| Connection size | M20x1.5 Male or oem | Pressure unit | MPa/KPa/Bar/Psi/mBar |
| Case material | ABS plastic | Working temperature: |
-10~60°C
|
| Dial size | 60,80,100mm |
Dimension
Application
Used to petroleum, chemical industry, power plant, water supply of town, Horologic exploration fields.
Selection
| YK-60/80/100 | Digital Pressure Gauge | |||||
| Code | Measuring range | |||||
| -0.1~0MPa, 0.6MPa, 1MPa, 1.6MPa, 2.5MPa, 4MPa, 6MPa, 10MPa, 16MPa,25MPa, 40MPa..100Mpa | ||||||
| Code | Process connection | |||||
| M1 | M20*1.5 | M4 | NPT1/2 | |||
| M2 | G1/4 | M5 | NPT1/4 | |||
| M3 | G1/2 | M6 | Customized | |||
| Code | Power supply | |||||
| P1 | AAA 7 batteries | |||||
| P2 | Lithium battery | |||||
| P3 | External 220V/24V power supply | |||||
| Code | Accuracy | |||||
| 2 | 0.1 | |||||
| 3 | 0.2 | |||||
| 4 | 0.25 | |||||
| 4 | 0.4 | |||||
| 4 | 0.5 | |||||
Features
1. The keys are made of rubber conductive keys, which are gentle to touch, easy to rebound, and have a longer life span.
2. The instrument interface use stainless steel, high hardness, impact resistance, anti-rust and anti-fouling
3. FSTN large LCD screen, clear display, easy to read, viewing angle and low temperature resistance performance is stronger than ordinary STN
4. Using high-precision imported AD chip, low power consumption and fast processing speed
5. Optimized circuit design, reduce signal transmission loss, accurate sensing, accurate measurement
6. One-key zero calibration, long press the zero key under atmospheric pressure to calibrate the zero.
7. The backlight time can be set freely. Long press the backlight to adjust the duration of the backlight.
8.Muti dispaly unit likeMpa,kpa,bar,pa,mH2O,mmH2o,kg/cm2,psi,mmHg,mbar,in.Hg,in.WC based on different
Range,default 3-5 type.
