| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | YTF |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | USD45~$68pc |
| Packaging Details: | Accuracy 0.1 water proof PH meter PH tester Standard export carton packing. |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Material: | Stainless Steel | Product Name: | High Precision Pressure Gauge |
|---|---|---|---|
| Accuracy: | 0.16 0.25 0.4 Grade | Interface: | M20x1.5 |
| Outside Temperature: | -20℃ ~ + 40℃ | Dial Size: | 150mm |
| Medium: | Oil, Gas, Water | Warranty: | 24 Months |

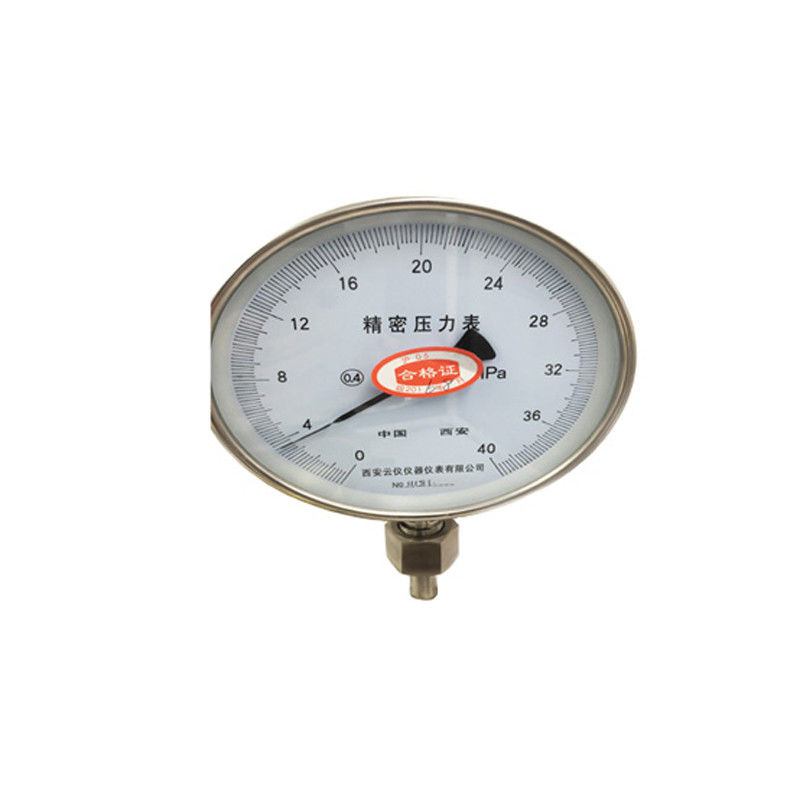

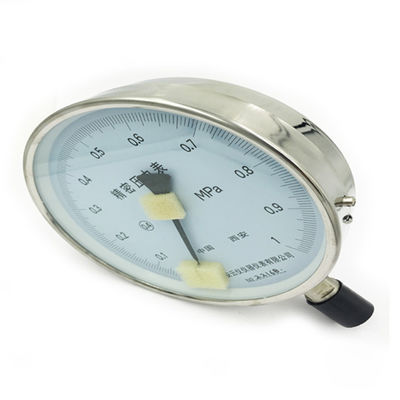

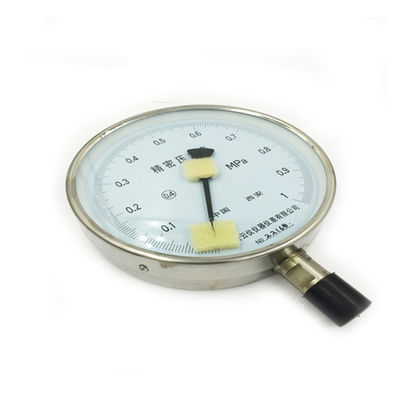

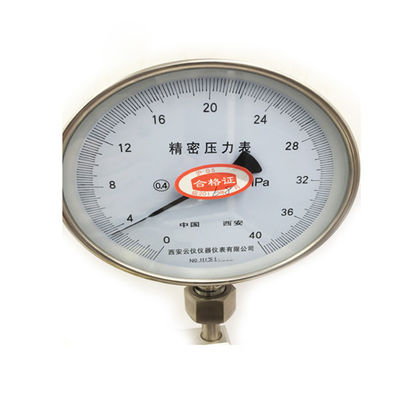

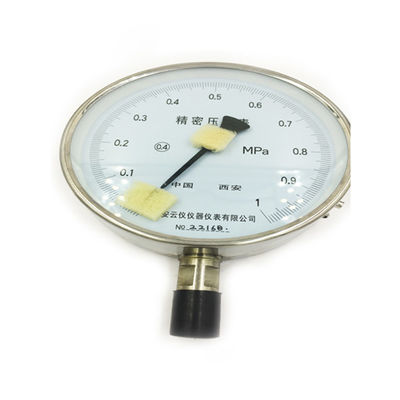

SS 316L High Precision Pressure Gauge, Pressure Meter
Description
Precision pressure gauges are mainly used to validate common pressure gauges as pressure measurement delivery standards and can also be used to measure the pressure of gases, liquids and vapors that do not corrode copper and steel and alloys.
Detailed Images
Specification
| SS 316L High Precision Pressure Gauge, Pressure Meter | ||||
| Type | Range | Accuracy | Dial | Remarks |
| YB150 | -0.1~0~60Mpa~100Mpa | 0.4 level |
150mm |
|
| YB150A | -0.1~0~60Mpa |
0.4 level 0.25 level |
With zero set | |
| YB150B | -0.1~0~60Mpa | With mirror | ||
| YB150C | -0.1~0~60Mpa | With zero set and mirror | ||
| YB160 | -0.1~0~60Mpa |
160mm |
||
| YB160A | -0.1~0~60Mpa | With zero set | ||
| YB160B | -0.1~0~60Mpa | With mirror | ||
| YB160C | -0.1~0~60Mpa | With zero set and mirror | ||
| YB254 | -0.1~0~60Mpa |
250mm |
Desktop precision pressure gauge | |
| YBT254 | -0.1~0.25Mpa | Precision sphygmomanometer | ||
| BXY250 | 0~40Kpa | |||
| YB160D | 0.1~60Mpa | 160mm | ||
