| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | YTP YTP-100/150ML |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | USD15~$38pc |
| Packaging Details: | Accuracy 0.1 water proof PH meter PH tester Standard export carton packing. |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Product Name: | Chinese Supplier Cheap Double Side PP Diaphragm Pressure Gauge | Dial Diameter: | 60mm; 100mm; 150mm |
|---|---|---|---|
| Accuracy: | 2.5,1.6,1.0 | Pressure Range: | 0~0.1~60MPa |
| Table Cover Mtable: | PP Spinning Bezel | Measuring Range: | 0 ~ 1KG, 2KG, 3KG, 4KG, |

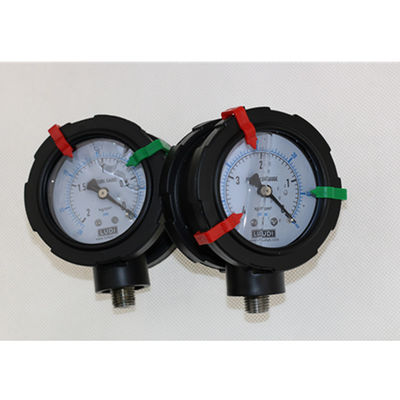

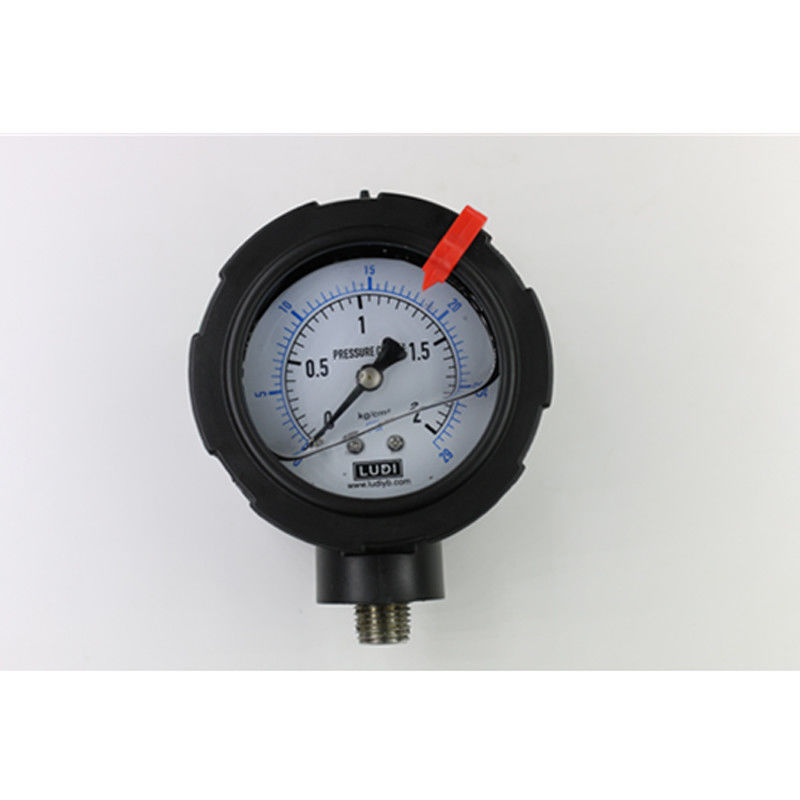

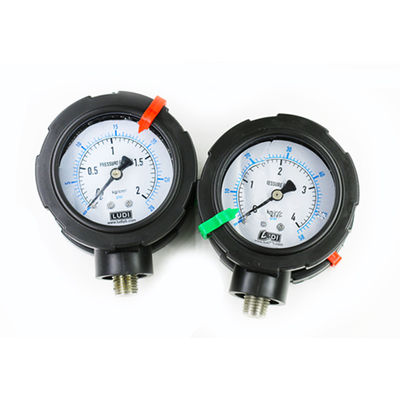

Chinese supplier cheap Double side PP Diaphragm Pressure Gauge
Description
PP double-sided diaphragm pressure gauge specifically used in printed circuit board PCB / LCD liquid filter pump and petrochemical industry. PP diaphragm table in the PCB circuit board industry applications such as metal etching machine and PCB / LCD cleaning liquid filter pump, corrosion resistance, can measure high viscosity liquid, gas, widely used in chemical industry, environmental protection industry all kinds of chemical machinery. Such as the developer, washing machine, etching machine, liquid filter, electroplating equipment, water treatment equipment.
Technical Parameters
Diameter: 60MM (split, one and split double-sided display)
Accuracy: 2.5%, 1.6%
Range: 0 ~ 1kg 2kg 3kg 4kg 6kg 7kg 10kg 15kg 25kg
Case: PP case (engineering) acid and alkali, corrosion-resistant plastic
Table cover: PP table frame spinning, PC mirror or safety glass
Connection thread: female thread 1 / 2PT (4 teeth)
Spring tube material: phosphor bronze, diaphragm seat diaphragm material, with fluorinated rubber and for choice.
Application
Established with 10 million capital in 2015, Xi'an Shelok Instrument Co., Ltd. is a professional designer and manufacturer that engaged in the fields of pressure measurement instruments. We specializing in developing high precision pressure transmitter, pressure gauges, pressure calibration pump and dead weight tester,level transmitter, flow meter etc., widely used in chemical, petroleum, paper, electricity, city gas, environmental protection, water treatment and other fields.
Specialties
pressure transmitter/sensor/transducer, pressure gauge, pressure calibration hand pump, and water level sensor
