| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | DS |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | USD5~$35pc |
| Packaging Details: | Accuracy 0.1 water proof PH meter PH tester Standard export carton packing. |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |

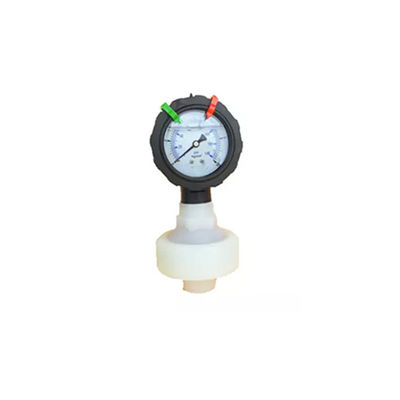

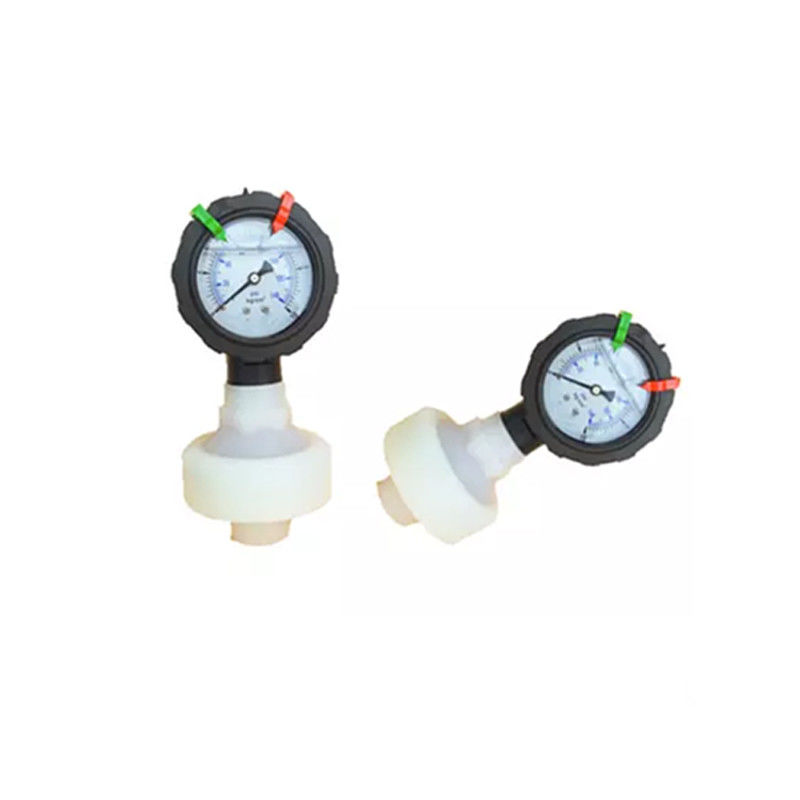

| Product Name: | Whosale Pp Oil Filled Pressure Gauge Low Price | Material: | PTFE |
|---|---|---|---|
| Accuracy: | 0.1 | Pressure Range: | 0 ~ 1KG, 2KG, 3KG, 4KG, 5KG, 7KG, 10KG, 15KG |
| Model: | PP60 | Size: | 60 |
| Connection: | NPT 1/2 | Type: | Corrosive Resistant Pressure Gauge |
| Application: | Liquid |
PCB circuit board industry, metal etching machine and PCB / LCD cleaning liquid filter pump, corrosion resistance, high viscosity liquid and gas can be measured, widely used in various chemical industry chemical machinery. Such as developing machine, washing machine, etching machine, liquid filter and other equipment.
The one-piece construction of the structure, making the pressure gauge is not easy to produce cracks and oil spills, and has excellent corrosion resistance
| Specifications of Whosale pp oil filled pressure gauge low price | |||
| Dial diameter | 60MM | Measuring range | 0 ~ 1KG, 2KG, 3KG, 4KG, 5KG, 7KG, 10KG, 15KG |
| Mirror | PC mirror or glass | Shell Material | PP Engineering Plastics |
| Table cover material | PP table spinning | Spring Material | Phosphor Bronze |
| Ambient temperature | max. 60 ℃ | Connector | 1 / 2NPT internal teeth |
| Diaphragm material | , fluorinated rubber | ||
Dial diameter: 60MM
Measuring range: 0 ~ 1KG, 2KG, 3KG, 4KG, 5KG, 7KG, 10KG, 15KG
Mirror: PC mirror or glass
Shell Material: PP Engineering Plastics, acid and alkali, high corrosion resistance, good stability, deformation temperature of 130 ℃
Table cover material: PP table spinning
Spring Material: Phosphor Bronze
Ambient temperature: the maximum operating temperature of 60 ℃ (due to consider the conduction characteristics), the ambient temperature of about -20 ℃ ~ 60 ℃
Connector screws: 1 / 2NPT internal teeth
Diaphragm material: , fluorinated rubber, acid and alkali, anti-corrosion
Dimension
Established with 10 million capital in 2015, Xi'an Shelok Technology Instrument Co., Ltd. is a professional designer and manufacturer that engaged in the fields of pressure measurement instruments. We specializing in developing high precision pressure transmitter, pressure gauges, pressure calibration pump and dead weight tester,level transmitter, flow meter etc., widely used in chemical, petroleum, paper, electricity, city gas, environmental protection, water treatment and other fields.
Specialties
pressure transmitter/sensor/transducer, pressure gauge, pressure calibration hand pump, and water level sensor
1, more than 10 years industry background
The original organization is Xi'an Precise Instruments Factory, established in 2007, and mainly produce pressure gauge, stainless steel pressure gauge, anti-vibration pressure gauge, pressure transmitter, pressure switch, pressure calibrator, and so on.
In 2015, Xi'an Shelok instruments Co., Ltd is estalished with 10 million capita for meeting the international business expanding demand.
2, a company of design and manufacture capability
Mainly focus on design and customized solution offer, and combining our professional industry background and our capability of supply chain management in local market, more comprehensive products and services could be offered.
3, R&D team + cooperation with colleges and universities
Keeping our capability of technology innovation improved makes us available to meet various technical challenges
4, three inspection steps + good warranty service
Strict inspection operation process keeps our products qualified, and clearly warranty policies help customer's solve after-sale problems and lower their cost.
5, sample first policy.
By offering most suitable proposal to help customers maximize their profit.
6, employees with + 4 years international experience are more than 100%
Professional and effective international business operation offers better service expericence
Q:How long will you reply me?
A:We will contact you as soon as possible but within 12 hours
Q: Can I get some samples?
A: Yes, Sample order is available for quality check and market test. But you have to pay the express cost.
Q: How soon can you arrange your production?
A: Once getting your product confirmation and receiving the prepayment, the production will be started immediately.
Q: What's delivery time?
A: It usually takes about 3-5 working days for small order and 10-15 days for big order.
Q:How do you control your quality ?
A: Three inspection steps(of original, production, and finished goods) + good warranty service(1 year free to change a new one without any human damage factors).
Q: What certificates do you have ?
A:ISO9000, CE, Explosion-proof certification, RoHs ready. And before the delievry of goods, quality and safety inspection certification issued by third parts also can be offered.
Q:Could I visit your factory?
A:Very welcome! Fly to Xian Yang air port. It was a big pleasure for us.
Q: What's your warranty terms?
A: We offer 12 months warranty time.
Q:can you provide OEM & Customized service?
A:Yes, OEM and ODM are both available, we have the professional R&D dept which can provide professional solutions for you.
