| Place of Origin: | Made In China |
| Brand Name: | NanCon |
| Certification: | CE |
| Model Number: | PS01 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | USD65~$135pc |
| Packaging Details: | Accuracy 0.1 water proof PH meter PH tester Standard export carton packing. |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Product Name: | Digital Hydraulic Pressure Control Switch Pressure Gauge | Max. Current: | 20mA |
|---|---|---|---|
| Max. Voltage: | 24VDC | Max. Working Pressure: | 100MPA |
| Control Range: | -0.1~0~100Mpa | Display: | 4-digit LED Display |
| Power Supply Range: | 24V ± 20% | Load Capacity: | <24V1.2A |
| Control Accuracy: | ≤ ± 0.5% FS |

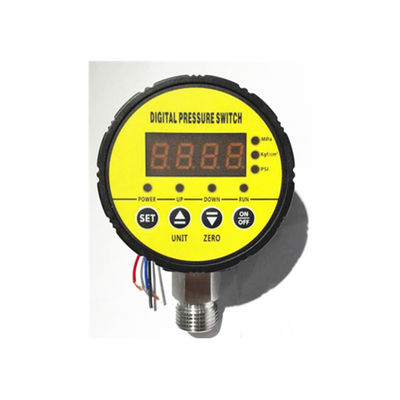

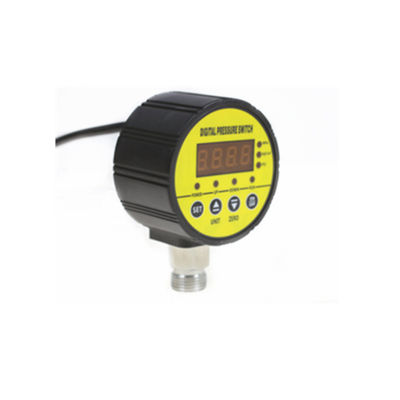

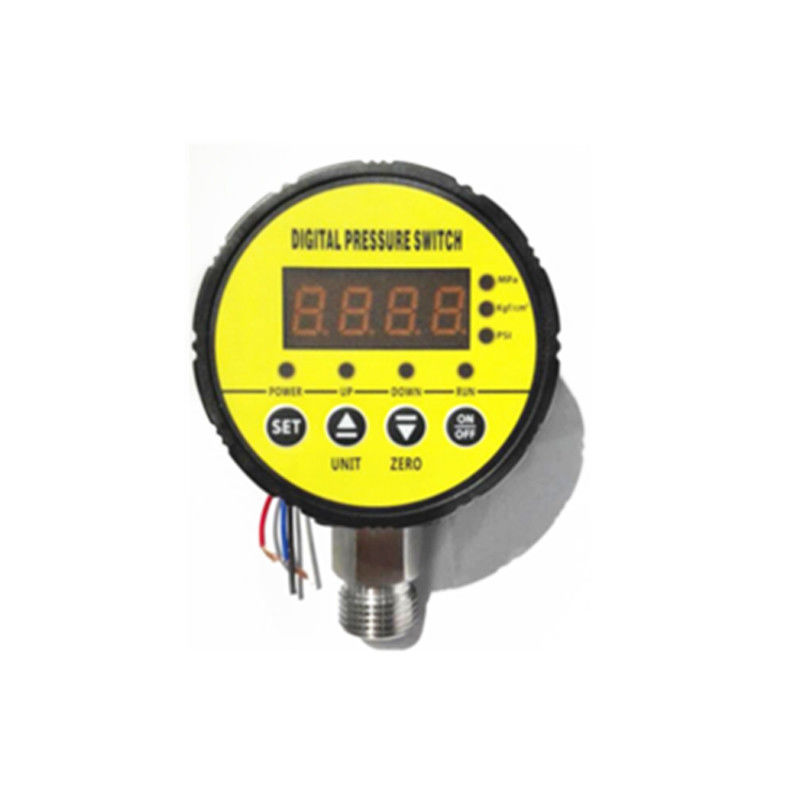

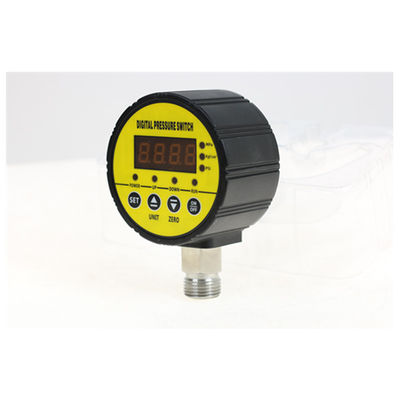

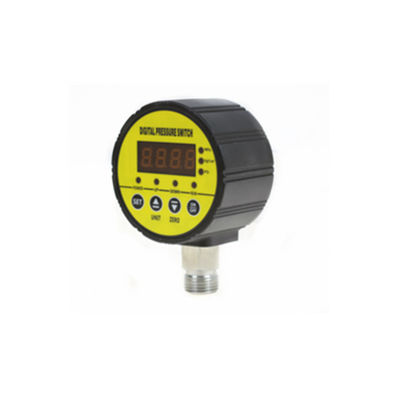

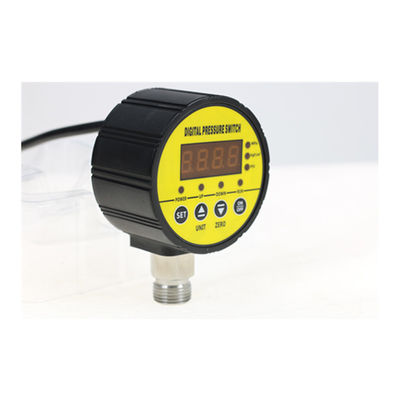

Digital hydraulic pressure control switch pressure gauge
Digital intelligent pressure control switch with hydraulic is a pressure measurement, display, intelligent digital pressure measurement and control products output, integrated control. This product is a full electronic structure, use front-end with baffle filled hydraulic resistance type pressure sensor, the output signal is composed of high precision, low drift amplifier processing, into the high precision A/D converter, the digital signals into the microprocessor can processing, through processing the signal control switch, monitoring and control of the pressure control system. Digital Air Pressure Switch is flexible to use, simple operation, easy debugging, safe and reliable. Widely used in hydropower, tap water, petroleum, chemical, mechanical, hydraulic and other industries, the fluid medium pressure measurement display and control.
Digital hydraulic pressure control switch pressure gauge
4-digit display of the current pressure value.
Pressure preset switch point and delay switching output
The switch quantity can be arbitrarily set from zero to full scale
The shell is equipped with node action light-emitting diode, easy to observe
button adjustment and on-site settings of various parameters, easy to operate.
2-way switch output, with a load capacity of 1.2A
Analog output (4 ~ 20mA)
Digital hydraulic pressure control switch pressure gauge
Control range: -0.1~0~100Mpa
Stability ≤ 0.2% / year
Display 4-digit LED display
Power supply range 24V ± 20%
Load capacity <24V1.2A
Protection class IP65
Ambient temperature -30 ℃ ~ 70 ℃
Storage temperature -40 ℃ ~ 85 ℃
Control accuracy ≤ ± 0.5% FS
Display accuracy 0 to 80%
The display range is -1999 to 9999
Maximum power consumption <3W
Relative humidity ± 0.1% FS
Established with 10 million capital in 2015, Xi'an Shelok Technology Instrument Co., Ltd. is a professional designer and manufacturer that engaged in the fields of pressure measurement instruments. We specializing in developing high precision pressure transmitter, pressure gauges, pressure calibration pump and dead weight tester,level transmitter, flow meter etc., widely used in chemical, petroleum, paper, electricity, city gas, environmental protection, water treatment and other fields.
Specialties
pressure transmitter/sensor/transducer, pressure gauge, pressure calibration hand pump, and water level sensor
1, more than 10 years industry background
The original organization is Xi'an Precise Instruments Factory, established in 2007, and mainly produce pressure gauge, stainless steel pressure gauge, anti-vibration pressure gauge, pressure transmitter, pressure switch, pressure calibrator, and so on.
In 2015, Xi'an Shelok instruments Co., Ltd is estalished with 10 million capita for meeting the international business expanding demand.
2, a company of design and manufacture capability
Mainly focus on design and customized solution offer, and combining our professional industry background and our capability of supply chain management in local market, more comprehensive products and services could be offered.
3, R&D team + cooperation with colleges and universities
Keeping our capability of technology innovation improved makes us available to meet various technical challenges
4, three inspection steps + good warranty service
Strict inspection operation process keeps our products qualified, and clearly warranty policies help customer's solve after-sale problems and lower their cost.
5, sample first policy.
By offering most suitable proposal to help customers maximize their profit.
6, employees with + 4 years international experience are more than 100%
Professional and effective international business operation offers better service expericence
Q:How long will you reply me?
A:We will contact you as soon as possible but within 12 hours
Q: Can I get some samples?
A: Yes, Sample order is available for quality check and market test. But you have to pay the express cost.
Q: How soon can you arrange your production?
A: Once getting your product confirmation and receiving the prepayment, the production will be started immediately.
Q: What's delivery time?
A: It usually takes about 3-5 working days for small order and 10-15 days for big order.
Q:How do you control your quality ?
A: Three inspection steps(of original, production, and finished goods) + good warranty service(1 year free to change a new one without any human damage factors).
Q: What certificates do you have ?
A:ISO9000, CE, Explosion-proof certification, RoHs ready. And before the delievry of goods, quality and safety inspection certification issued by third parts also can be offered.
Q:Could I visit your factory?
A:Very welcome! Fly to Xian Yang air port. It was a big pleasure for us.
Q: What's your warranty terms?
A: We offer 12 months warranty time.
Q:can you provide OEM & Customized service?
A:Yes, OEM and ODM are both available, we have the professional R&D dept which can provide professional solutions for you.
