| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | D2000 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | USD10~$25pc |
| Packaging Details: | Accuracy 0.1 water proof PH meter PH tester Standard export carton packing. |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Product Name: | Low Cost Differential Pressure Gauge With Air | Accuracy: | 0.2 |
|---|---|---|---|
| Pressure Range: | -100KPa---260MPa | Model: | D2000 |
| Size: | 100mm | Connection: | 1/8" |
| Type: | Measuring Instruments | Material: | Aluminum |
| Color: | Gray | Dial Size: | 4"(100mm) |

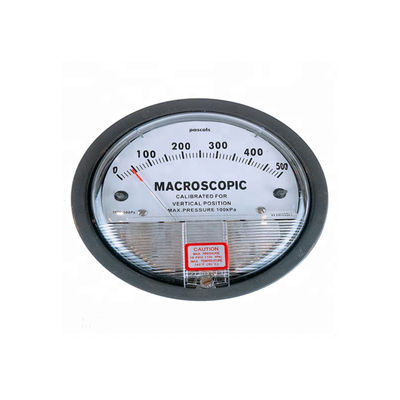

Low cost differential pressure gauge with air
Description of Low cost differential pressure gauge with air:
For high accuracy-graranteed within 2% of full scale. indicate low air or non-corrosive gas pressures –eighter positive, negative(vacuum)of differential. The design resists shock ,vibration and over-pressures no Manometer fluid to evaporate, freeze or cause toxic or leveling problems, it’s inexpensive too
Features of Low cost differential pressure gauge with air:
1 Micro-power, high accuracy, high-definition digital LCD six;
2 Small size, simple operation, easy field calibration pressure gauges and precision pressure measurement using;
3 Intelligent calibration, linear repair, two seconds and zero magnetic induction pen
4 LCD display with dynamic pressure, visual display percentages pressure
5 Pressure unit: mmH2O mmHg psi kPa MPa Pa mbar bar pressure up to ten units (optional)
6 Dynamic pressure measurement can be displayed online curve, the peak record function (optional);
7 A variety of additional features. If RS486 interface output, 4-20mA output, data output USB interface instant messaging, storage function (optional)
| Model | SKL-DM01 |
| Name | Differential air pressure gauge |
| Dimension | 4"dia. x 2-3/16"deep |
| Accuracy | ±2% of Full scale ( ± 3% on 0,-100Pa,-125Pa,100mm and ± 4% on -00,-60pa,-6mm ranges) |
| Range available | -20 inHg to 15 psig, (-0.677 bar to 1.034 bar) |
| Over pressure | Relief Plug opens at approximately 25psig(1.72bar) standard gauges only |
| Temperature Limits | 20- 140 °F(-6.67 to 60°C) |
| Process connection | 1/8”NPT ,dupliate high and low pressure taps –one pair side and one pair back. |
| Accessories | include two 1/8”male NPT plugs for duplicate pressure taps, two 1/8”male NPT pipe thread to Rubber tubing adapters, and three flush mounting adapters with screws. |
Established with 10 million capital in 2015, Xi'an Shelok Technology Instrument Co., Ltd. is a professional designer and manufacturer that engaged in the fields of pressure measurement instruments. We specializing in developing high precision pressure transmitter, pressure gauges, pressure calibration pump and dead weight tester,level transmitter, flow meter etc., widely used in chemical, petroleum, paper, electricity, city gas, environmental protection, water treatment and other fields.
Specialties
pressure transmitter/sensor/transducer, pressure gauge, pressure calibration hand pump, and water level sensor
1, more than 10 years industry background
The original organization is Xi'an Precise Instruments Factory, established in 2007, and mainly produce pressure gauge, stainless steel pressure gauge, anti-vibration pressure gauge, pressure transmitter, pressure switch, pressure calibrator, and so on.
In 2013, Yunyi Group is established for development command, and process measurement instruments about water, flow, temperature are added in our product catalogue.
In 2015, Xi'an Shelok instruments Co., Ltd is estalished with 10 million capita for meeting the international business expanding demand.
2, a company of design and manufacture capability
Mainly focus on design and customized solution offer, and combining our professional industry background and our capability of supply chain management in local market, more comprehensive products and services could be offered.
3, R&D team + cooperation with colleges and universities
Keeping our capability of technology innovation improved makes us available to meet various technical challenges
4, three inspection steps + good warranty service
Strict inspection operation process keeps our products qualified, and clearly warranty policies help customer's solve after-sale problems and lower their cost.
5, sample first policy.
By offering most suitable proposal to help customers maximize their profit.
6, employees with + 4 years international experience are more than 100%
Professional and effective international business operation offers better service expericence
Q:How long will you reply me?
A:We will contact you as soon as possible but within 12 hours
Q: Can I get some samples?
A: Yes, Sample order is available for quality check and market test. But you have to pay the express cost.
Q: How soon can you arrange your production?
A: Once getting your product confirmation and receiving the prepayment, the production will be started immediately.
Q: What's delivery time?
A: It usually takes about 3-5 working days for small order and 10-15 days for big order.
Q:How do you control your quality ?
A: Three inspection steps(of original, production, and finished goods) + good warranty service(1 year free to change a new one without any human damage factors).
Q: What certificates do you have ?
A:ISO9000, CE, Explosion-proof certification, RoHs ready. And before the delievry of goods, quality and safety inspection certification issued by third parts also can be offered.
Q:Could I visit your factory?
A:Very welcome! Fly to Xian Yang air port. It was a big pleasure for us.
Q: What's your warranty terms?
A: We offer 12 months warranty time.
Q:can you provide OEM & Customized service?
A:Yes, OEM and ODM are both available, we have the professional R&D dept which can provide professional solutions for you.
