| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | YK-60 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | USD45~$68pc |
| Packaging Details: | Accuracy 0.1 water proof PH meter PH tester Standard export carton packing. |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Product Name: | 60mm Digital Intelligent Pressure Gauge With Hydraulic | Material: | ABS Plastic |
|---|---|---|---|
| Accuracy: | 0.25% | Pressure Range: | -1~0~600 Bra |
| Display: | LCD | Size: | 60mm |
| Connection: | M20*1.5 | Type: | Measuring Instruments |
| Case: | Stainless Steel Casing | Color: | Black Face |

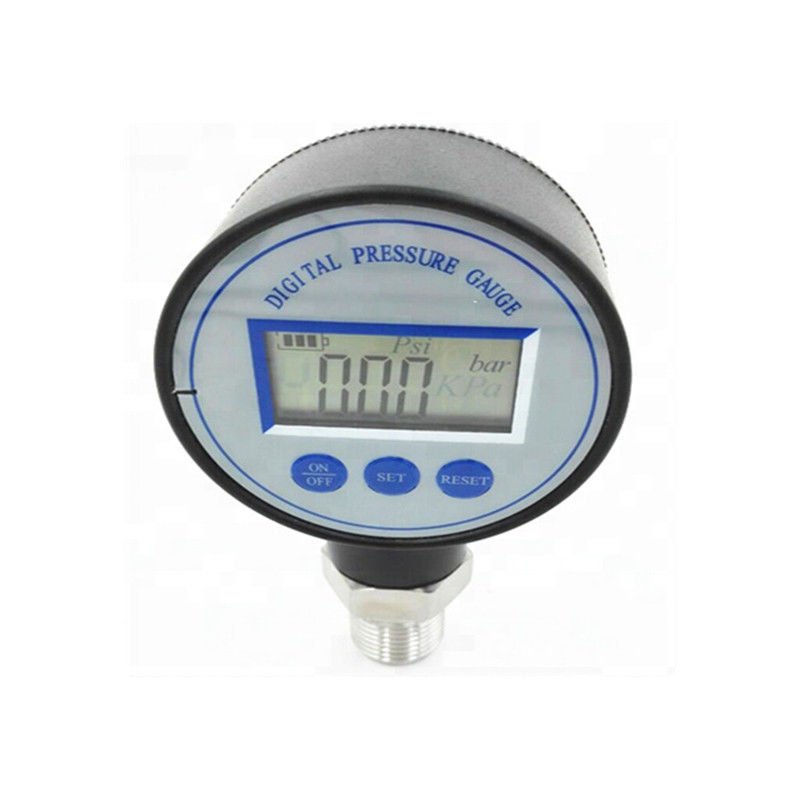

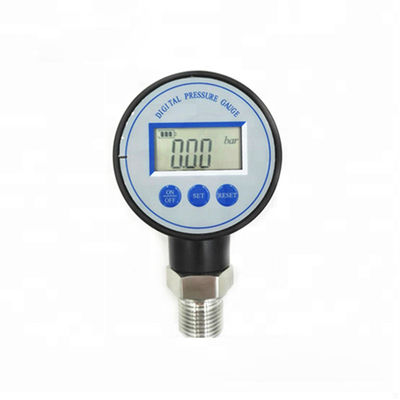

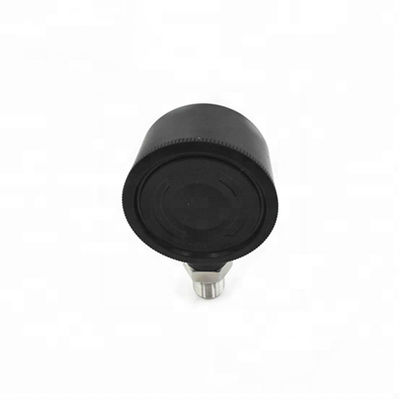

60mm digital intelligent pressure gauge with hydraulic
YK-60 Series Intelligent Pressure Gauges have full electronic structure and use battery-powered, so they are very easy for on-site installation. Specifically, front-end high-precision piezoresistive pressure sensor is used and the output signal is processed by the high-precision, low temperature drift amplifier, then sent into the high-precision A/D converter to be converted into digital signal, after computing and processing the actual pressure value is showed on the LCD display.
1. large-screen LCD display, high resolution, ignoring the error.
2. Peak Hold function, record the maximum pressure values during the measurement
3. Pressure on the percentage of dynamic display, (the progress bar display)
4. Choice of five engineering units: psi, bar, kpa, kg / square centimetre Mpa
5. Choose 0 ~ 15min auto-off feature.
6. Micro-power consumption, work more than 2 years in power-saving mode, 2,000 hours continuous work.
7. Parameter correction, correct zero and error in field application.
8. Limit the upper and lower range
9. Sampling rate: 4 times / sec
10. Applicable to a variety of gases and liquids compatible with stainless steel pressure measurement.
| Scale Range | -1~0~600bar | Accuracy | 0.25% |
| Overload capacity | 200% | Pressure Type | Gauge Pressure |
| Stability | ≤0.1%/year | Battery voltage | 9VDC |
| Display | LCD display | Display range | -1999~9999 |
| Ambient temperature | -10℃~60℃ | Relative humidity | ≤80% |
| Connection size | 1/4NPT, 1/2NPT | Pressure unit | MPa/KPa/Bar/Psi/mBar |
| Case material | ABS plastic | Medium temp | -20~50℃ |
Established with 10 million capital in 2015, Xi'an Shelok Technology Instrument Co., Ltd. is a professional designer and manufacturer that engaged in the fields of pressure measurement instruments. We specializing in developing high precision pressure transmitter, pressure gauges, pressure calibration pump and dead weight tester,level transmitter, flow meter etc., widely used in chemical, petroleum, paper, electricity, city gas, environmental protection, water treatment and other fields.
Specialties
pressure transmitter/sensor/transducer, pressure gauge, pressure calibration hand pump, and water level sensor
1, more than 10 years industry background
The original organization is Xi'an Precise Instruments Factory, established in 2007, and mainly produce pressure gauge, stainless steel pressure gauge, anti-vibration pressure gauge, pressure transmitter, pressure switch, pressure calibrator, and so on.
In 2013, Yunyi Group is established for development command, and process measurement instruments about water, flow, temperature are added in our product catalogue.
In 2015, Xi'an Shelok instruments Co., Ltd is estalished with 10 million capita for meeting the international business expanding demand.
2, a company of design and manufacture capability
Mainly focus on design and customized solution offer, and combining our professional industry background and our capability of supply chain management in local market, more comprehensive products and services could be offered.
3, R&D team + cooperation with colleges and universities
Keeping our capability of technology innovation improved makes us available to meet various technical challenges
4, three inspection steps + good warranty service
Strict inspection operation process keeps our products qualified, and clearly warranty policies help customer's solve after-sale problems and lower their cost.
5, sample first policy.
By offering most suitable proposal to help customers maximize their profit.
6, employees with + 4 years international experience are more than 100%
Professional and effective international business operation offers better service expericence
Q:How long will you reply me?
A:We will contact you as soon as possible but within 12 hours
Q: Can I get some samples?
A: Yes, Sample order is available for quality check and market test. But you have to pay the express cost.
Q: How soon can you arrange your production?
A: Once getting your product confirmation and receiving the prepayment, the production will be started immediately.
Q: What's delivery time?
A: It usually takes about 3-5 working days for small order and 10-15 days for big order.
Q:How do you control your quality ?
A: Three inspection steps(of original, production, and finished goods) + good warranty service(1 year free to change a new one without any human damage factors).
Q: What certificates do you have ?
A:ISO9000, CE, Explosion-proof certification, RoHs ready. And before the delievry of goods, quality and safety inspection certification issued by third parts also can be offered.
Q:Could I visit your factory?
A:Very welcome! Fly to Xian Yang air port. It was a big pleasure for us.
Q: What's your warranty terms?
A: We offer 12 months warranty time.
Q:can you provide OEM & Customized service?
A:Yes, OEM and ODM are both available, we have the professional R&D dept which can provide professional solutions for you.
