| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | YTP-100 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | USD45~$65pc |
| Packaging Details: | Accuracy 0.1 water proof PH meter PH tester Standard export carton packing. |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Product Name: | Good Quality Diaphragm-Seal Pressure Gauge | Dial Diameter: | 60mm; 100mm; 150mm |
|---|---|---|---|
| Accuracy: | 2.5,1.6,1.0 | Pressure Range: | 0~0.1~60MPa |

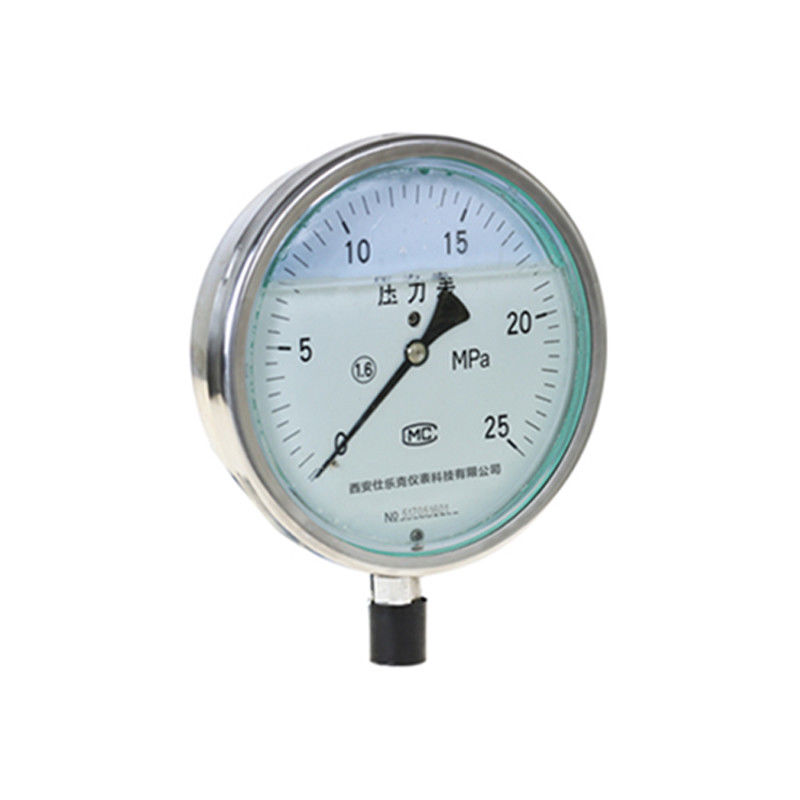

Good quality Diaphragm Pressure Gauge
Description
Diaphragm pressure gauge and seismic diaphragm pressure gauge is a kind of indirect measurement of all seal type pressure meter, it is mainly used for measuring gas, liquid and larger viscosity acidic, alkaline, hydroformylation, chloride and other corrosive medium pressure. At the same time, the diaphragm pressure gauge can be used to vibrate the environment

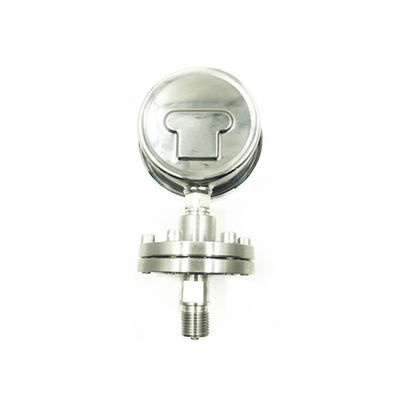

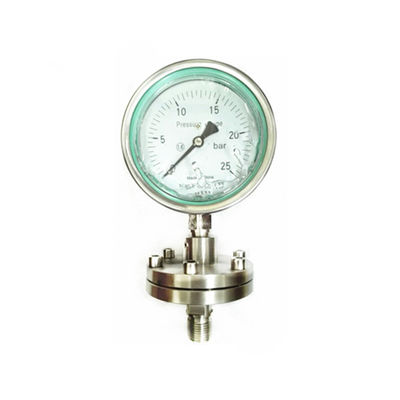

YTP-100/150ML thread type diaphragm pressure gauge adopt indirect measurement structure, suitable to measure pressure of liquid ,gas or granular solid mediums , that with characteristics of high viscosity, easy to crystallization, corrosive, high temperature.
Technical Parameters
1. Accuracy grade 2.5, 1.6, 1.0 (customizable for special requirement)
2. Measuring range (Mpa) -0.1-0-60 (please specify when ordering)
3, The product model: YTP diaphragm pressure gauge)/YTPN (seismic diaphragm pressure gauge)/YTPF (all stainless steel diaphragm pressure gauge)/YTPX (electric contact diaphragm pressure gauge)/YTPXC (magnetic help type electric contact diaphragm pressure gauge), etc
4. Diaphragm material: Stainless steel and Mo alloy (316);Monel alloy (Cu30Ni70);H276C;Tantalum (Ta) and fluorine plastic (F4).
5. Flange materials: stainless steel and Mo Alloy (316); Stainless steel liner fluorine plastic (316+ F4).
6. Sealing gasket material: butyronitrile rubber;Fluorine rubber;Silicone rubber and fluorine plastic.
7. Internal filling of diaphragm pressure gauge (1) silicone oil (2) fill according to customer's requirements
8, working conditions of the diaphragm pressure gauge (1) - 20 ~ + 55 ℃ temperature environment temperature, etc
(2) static load stress: use to three-quarters of the upper limit value of the measurement
Alternating load: use to 2/3 of the upper limit value of the measurement
8. Connection size (1) thread connection: M20*1.5 (g3/8 "g1/2") etc
(2) the flange connection: mechanical industry standard JB81-5 "flat steel flanges"
9. Dial diameter phi 60;Phi 100 mm;Phi 150 mm
10, working temperature: the common diaphragm pressure gauge: 25 ℃ ~ 55 ℃, resistance to high temperature diaphragm pressure gauge: 0-600 ℃.
Application
1. Please indicate the model, name, measurement range, joint thread size, and precision level of the order.
2. If you have any special request, please specify in detail during the order.
The selection of diaphragm material of diaphragm pressure gauge: the HB should be used for the strong acid medium, preferably with four fluorine, and 316L diaphragm for the strong base type
Established with 10 million capital in 2015, Xi'an Shelok Instrument Co., Ltd. is a professional designer and manufacturer that engaged in the fields of pressure measurement instruments. We specializing in developing high precision pressure transmitter, pressure gauges, pressure calibration pump and dead weight tester,level transmitter, flow meter etc., widely used in chemical, petroleum, paper, electricity, city gas, environmental protection, water treatment and other fields.
Specialties
pressure transmitter/sensor/transducer, pressure gauge, pressure calibration hand pump, and water level sensor
