| Place of Origin: | Made In China |
| Brand Name: | WISE |
| Certification: | CE |
| Model Number: | P310 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | USD125~$165pc |
| Packaging Details: | Accuracy 0.1 water proof PH meter PH tester Standard export carton packing. |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Pressure Range: | -100KPa ~ 260MPa (optional) | Product Name: | High Precision Digital Pressure Gauge |
|---|---|---|---|
| Signal Output: | RS485 | Accuracy: | 0.02%, 0.05% |
| Display: | 5 Digital Dynamic Display And Simulation Of Light Indicator | Overload: | 1.5~3 Times Of Full Scale |
| Turn Off The Current: | Less Than 10 A | Over Load: | 1.5-3 Times |
| Power Supply: | 7.4V High Energy Lithium Battery Or Rechargeable Battery | Medium Temperature: | -40℃ ~ +90℃ |

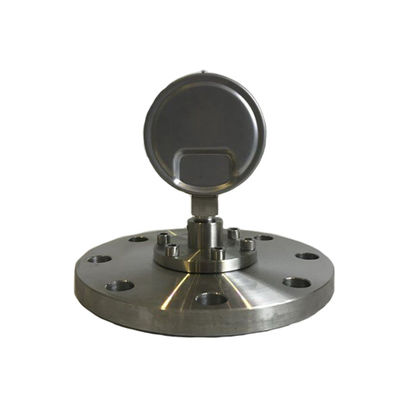

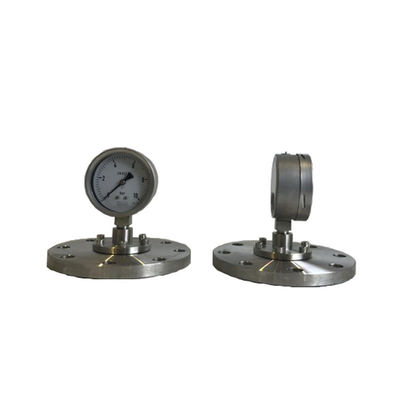

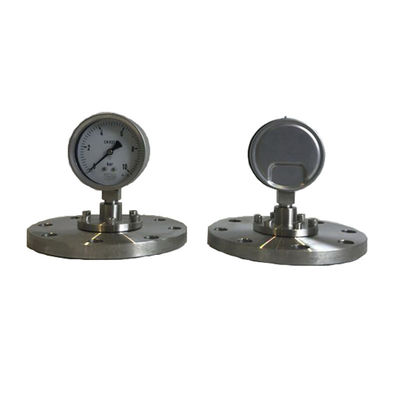

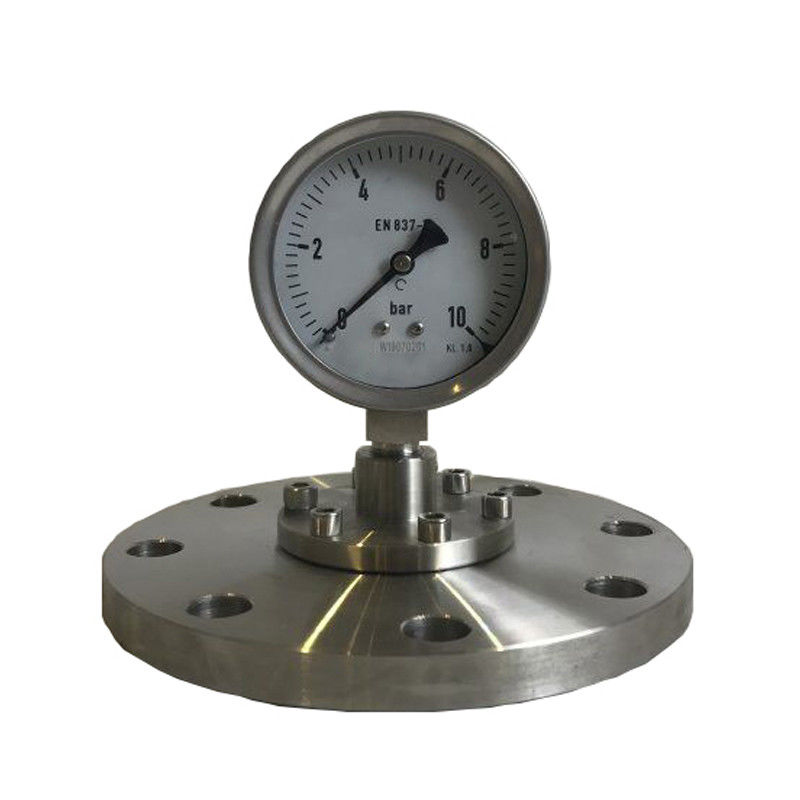

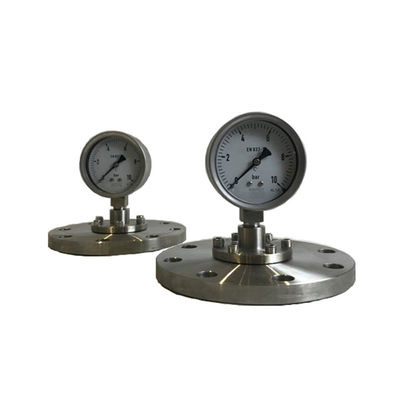

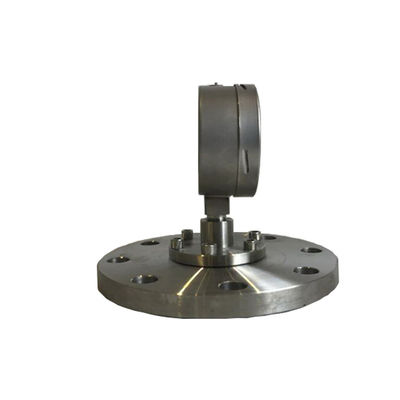

Flange Diaphragm Pressure Gauge
Description
P131 Calibration standard digital pressure gauge imported sensor, superior performance, high accuracy, corrosion resistance, impact resistance, anti-vibration, high stability, etc.; signal processing circuitry using the latest ultra-low-power processors, signal processing and power management chip chips, using a large capacity, high performance lithium battery-powered, no external power supply. 5 percentage using the digital display and analog display, intuitive readings, the product precision can reach 0.05 for ordinary pressure gauge, precision pressure gauge and pressure transmitter calibration and test, instead of themore traditional mechanical pointer pressure table-site measuring pressure.
Detailed Images
Specification
| Flange Diaphragm Pressure Gauge | |
| Product Name | standard digital pressure gauge 0.02 accuracy |
| Pressure Range | -100KPa ~ 260MPa (optional) |
| Signal Output | RS485 |
| Accuracy | 0.02%, 0.05% |
| Display | 5 digital dynamic display and Simulation of light indicator |
| Overload | 1.5~3 times of full scale |
| Turn Off the Current | less than 10 A |
| Power Supply | 7.4V high energy lithium battery or rechargeable battery |
| Medium Temperature | -40℃ ~ +90℃ |
| Process Connection | M20×1.5, 1/4NPT, 1/2NPT optional |
| Ambient Temp. | (-10~80)℃ |
| Relative humidity | <95% |
| Atmospheric Pressure | (86~106)KPa |
| Storage Temp. | (-20~70)℃ |
| Pressure range optional | |
| Low Pressure Range:0~6KPa,0~10KPa,0~20KPa, 0~0.04MPa,0~0.06MPa,-0.04~0MPa,-0.06~0MPa,-0.04~0.02MPa,-0.04~0.06MPa Middle Pressure Range :-0.1~0MPa ,0~0.1MPa,0~0.16MPa,0~0.25MPa,0~0.4MPa,0~0.6 MPa,0~1MPa,0~1.6 MPa ,0~2.5MPa,0~4MPa,0~6MPa,0~10MPa,0~16MPa,0~25MPa,0~40MPa,0~60MPa High Pressure Range :0~100MPa,0~160MPa,0~250MPa |
|
Features
1 Micro-power, high accuracy, high-definition digital LCD six;
2 Small size, simple operation, easy field calibration pressure gauges and
precision pressure measurement using;
3 Intelligent calibration, linear repair, two seconds and zero magnetic induction
pen
4 LCD display with dynamic pressure, visual display percentages pressure
5 Pressure unit: kg/m2 ,psi ,kPa ,MPa, bar pressure
6 Dynamic pressure measurement can be displayed online curve, the peak
record function (optional);
7 A variety of additional features. If RS485 interface output
data output USB interface instant messaging, storage function (optional)
Selection Guide
| P131 | Code | Accuracy | ||
| A | 0.05 | |||
| B | 0.1 | |||
| C | 0.02 | |||
| D | Flange | |||
| E | Special Accuracy | |||
| Code | Connection mode | |||
| 1 | M20*1.5 | |||
| 2 | 1/2NPT | |||
| 3 | M14*1.5 | |||
| 4 | G1/2 | |||
| 5 | Special connector | |||
| Code | Pressure type | |||
| G | Gage pressure | |||
| D | Differential pressure | |||
| A | Absolute pressure | |||
| YK-120B | A | 1 | G | |
Applications
1. Check the general pressure gauge
2. Check the precision pressure gauge
3. Check sphygmomanometer, other pressure meter
4. Measuring precision pressure
