| Place of Origin: | Made In China |
| Brand Name: | NanCon |
| Certification: | CE |
| Model Number: | YTF-100H |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | USD45~$65pc |
| Packaging Details: | Accuracy 0.1 water proof PH meter PH tester Standard export carton packing. |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Accuracy: | 1.6,1.0.2.5 | Pressure Range: | 0-100Mpa |
|---|---|---|---|
| Process Connection: | NPT,BSP,PT,R ,1/4,1/2,1/8 | Application: | Water Oil Air Pressure Measurement |
| Oem: | Yes | Product Name: | High Quality Stainless Steel Flange End Diaphragm Seal Pressure Gauge |
High quality diaphragm seal pressure gauge stainless steel Flange end
Description
YTP-100/150ML thread type diaphragm pressure gauge adopt indirect measurement structure, suitable to measure pressure of liquid ,gas or granular solid mediums , that with characteristics of high viscosity, easy to crystallization, corrosive, high temperature.

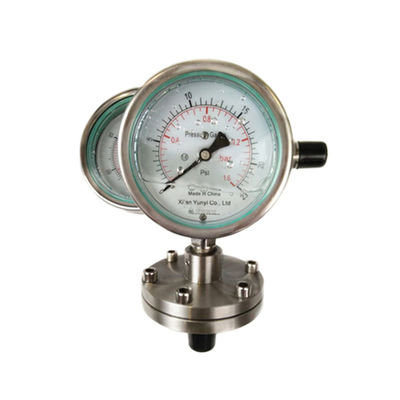

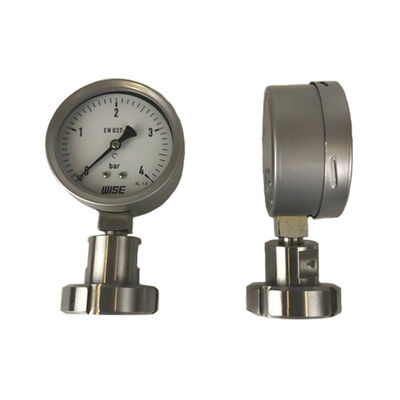

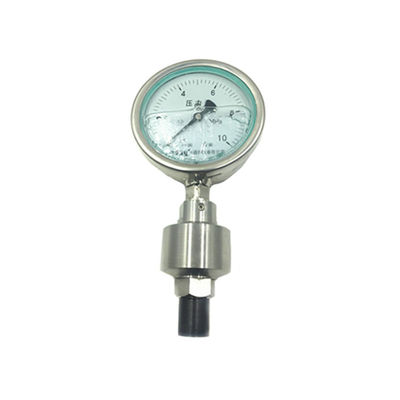

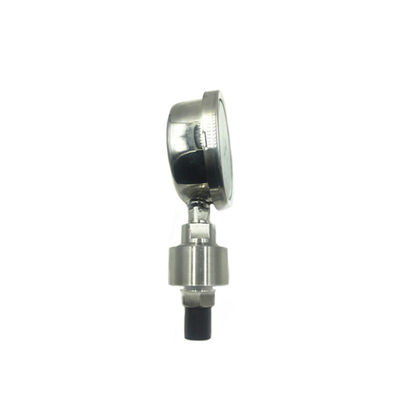

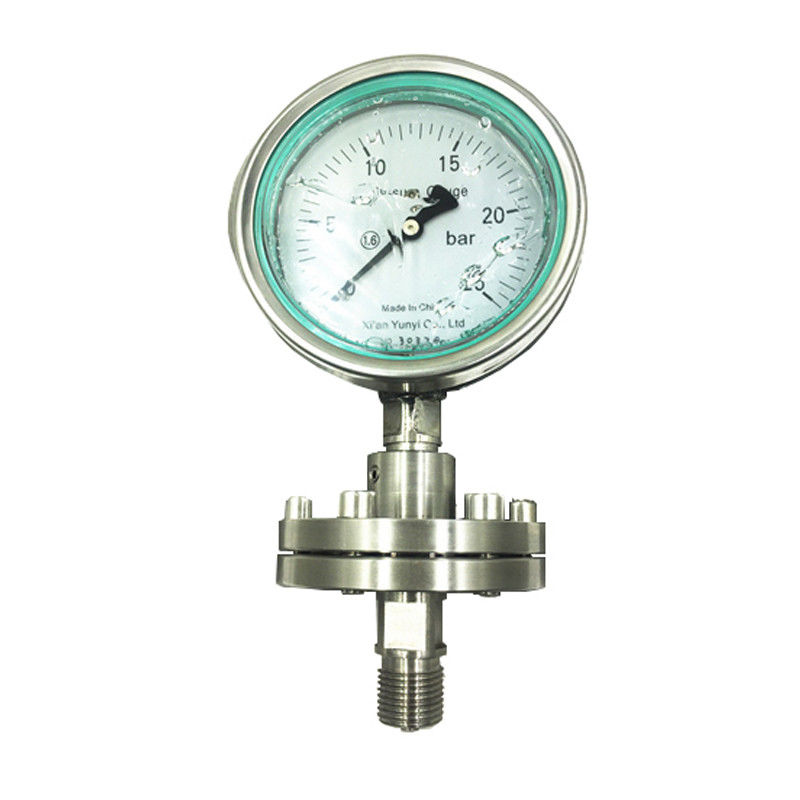

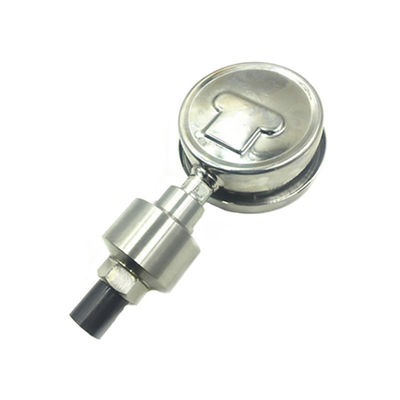

Detailed Images
Specification
| High quality diaphragm seal pressure gauge stainless steel Flange end | |
| Accuracy class | 1.6, 2.5, 1.0, 2.0 |
| Measuring range | ~ 0.1 ~ 0 to 0 ~ 60; 0 ~ 160MPa |
| Diaphragm material | 0Crl7Nil2Mo2 (316); Monel (Cu30Ni70); Hastelloy (H276C); tantalum (Ta) and fluorine plastic (F4) |
| Flange material | stainless steel 0Crl7Nil2M02 (316); plastic lined stainless steel (316 + F4) |
| Sealing gasket material | nitrile rubber; fluorine rubber; silicone rubber and fluorine plastic |
| Thread flange connection size | M20 * 1.5 (G3 / 8 "G1 / 2") or custom |
| Temperature | Ambient temperature - 25 ~ +55 °C measured medium temperature -25 ~ +55 °C;High temperature type:0-600℃ |
| Working pressure static load | with a scale value of 3/4 Alternating load: The scale value of 2/3 |
| DN SIZE | 60/100/150mm |
Ordering Guide
Pressure range:
DN:
Accuracy:
Thread:
Quantities:
Application:
Diaphragm material:
Related products
FAQ
Q:How long will you reply me?
A:We will contact you as soon as possible but within 12 hours
Q: Can I get some samples?
A: Yes, Sample order is available for quality check and market test. But you have to pay the express cost.
Q: How soon can you arrange your production?
A: Once getting your product confirmation and receiving the prepayment, the production will be started immediately.
Q: What's delivery time?
A: It usually takes about 3-5 working days for small order and 10-15 days for big order.
Q:How do you control your quality ?
A: Three inspection steps(of original, production, and finished goods) + good warranty service(1 year free to change a new one without any human damage factors).
Q: What certificates do you have ?
A:ISO9000, CE, Explosion-proof certification, RoHs ready. And before the delievry of goods, quality and safety inspection certification issued by third parts also can be offered.
Q:Could I visit your factory?
A:Very welcome! Fly to Xian Yang air port. It was a big pleasure for us.
Q: What's your warranty terms?
A: We offer 12 months warranty time.
Q:can you provide OEM & Customized service?
A:Yes, OEM and ODM are both available, we have the professional R&D dept which can provide professional solutions for you.
