| Place of Origin: | Made In China |
| Brand Name: | WISE |
| Certification: | CE |
| Model Number: | SX |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | USD45~USD75/pc |
| Packaging Details: | Accuracy 0.1 water proof PH meter PH tester Standard export carton packing. |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Case Sizes: | 4 And 6 Inches | Case Materials: | Plastic And Stainless Steel |
|---|---|---|---|
| Accuracy Class: | ±1.6% Or ±2.5% | Element: | Brass, Stainless Steel And 316 Stainless Steel |
| Available Ranges: | -0.1- 0 - 60MPa, -0.1 - 2.4MPa, -1-0-600bar | MOQ: | 1 Piece |
| Warranty: | 1 Year | Lead Time: | About 7 Days |

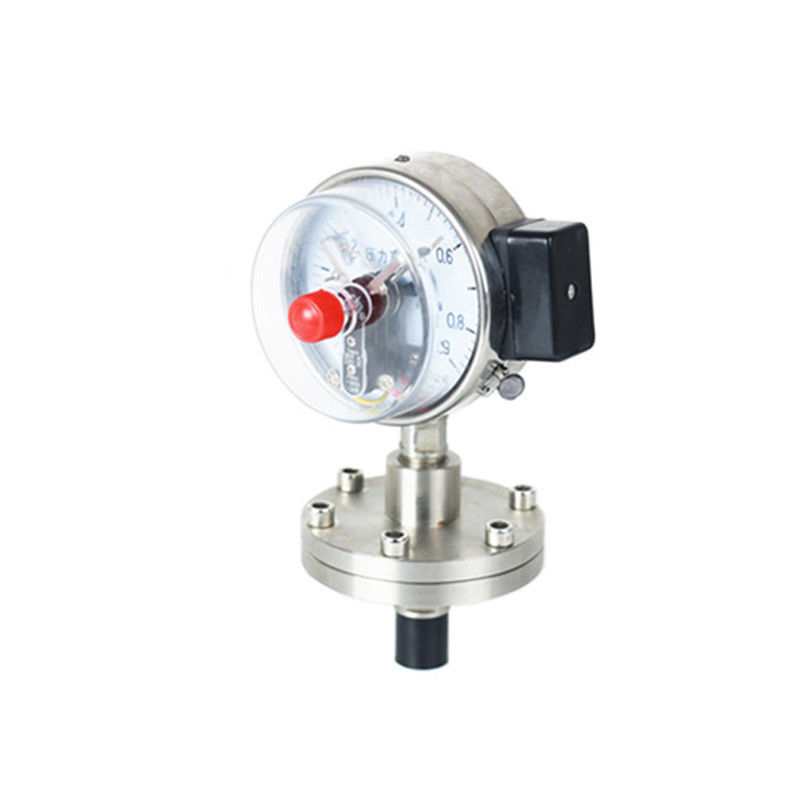

Stainless steel vacuum electric contact diaphragm pressure gage
Description of Stainless steel vacuum electric contact diaphragm pressure gage
Stainless steel vacuum electric contact diaphragm pressure gage is mainly used for controlling pressure and alarming in automatic process industry. When measured pressure reaches rated value, it can output signals to operate autocontrolling and alarming.It is suitable for measuring pressure of gas or liquid that does not copper and corrupt copper alloy.With the over voltage protection, without filling oil does characteristics and so on. Novel design and reliable in structure, good movement stability, durable.Simple installation , small amount of maintenance
Principal of Stainless steel vacuum electric contact diaphragm pressure gage
It consist of measuring system, indicating devices, magnetic devices ,shell, adjusting device and junction boxes and other components. When the measured pressure contact the spring tube, its end produce the corresponding elastic deformation - displacement, after transmission amplification by the pointing device is indicated on the dial. The pointer drive instantaneous contact (upper or lower) movable contact and setting pointer electric contact means on contact, causes the control system turned on or off the circuit, in order to achieve automatic control and alarm transmission.
Electrical contact pins in the electrical signal of the contact device, provided with adjustable permanent magnet, suction can increase the contact, the contact to accelerate the action, so that access to reliable contact, arc extinction, the meter can effectively prevent vibrations due to the working environment or medium pressure pulsation caused by frequent contacts off. Therefore, the instrument has a reliable action, long life and large, contact switch power and other advantages.

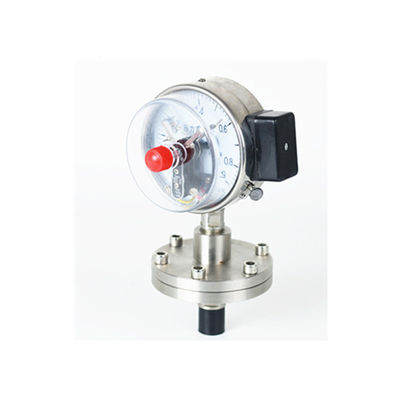

Detailed Images
Specification
| Stainless steel vacuum electric contact diaphragm pressure gauge | |
| Accuracy class | ±1.6% or ±2.5% |
| Case sizes | 4 and 6 inches |
| Case materials | Plastic and stainless steel |
| Tube and socket | Brass, stainless steel and 316 stainless steel |
| Element | Brass, stainless steel and 316 stainless steel |
| Connection thread | NPT, BSP, BSPT and other special specification |
| Connection | bottom connection, back connection |
| Available ranges | -0.1- 0 - 60MPa, -0.1 - 2.4MPa, -1-0-600bar |
| Windows | Acrylic, glass and polycarbonate lens available |
| Maximum working voltage | AC380V or DC220V |
| Contact Power | 30VA, 10VA |
FAQ
Q:How long will you reply me?
A:We will contact you as soon as possible but within 12 hours
Q: Can I get some samples?
A: Yes, Sample order is available for quality check and market test. But you have to pay the express cost.
Q: How soon can you arrange your production?
A: Once getting your product confirmation and receiving the prepayment, the production will be started immediately.
Q: What's delivery time?
A: It usually takes about 3-5 working days for small order and 10-15 days for big order.
Q:How do you control your quality ?
A: Three inspection steps(of original, production, and finished goods) + good warranty service(1 year free to change a new one without any human damage factors).
Q: What certificates do you have ?
A:ISO9000, CE, Explosion-proof certification, RoHs ready. And before the delievry of goods, quality and safety inspection certification issued by third parts also can be offered.
Q:Could I visit your factory?
A:Very welcome! Fly to Xian Yang air port. It was a big pleasure for us.
Q: What's your warranty terms?
A: We offer 12 months warranty time.
Q:can you provide OEM & Customized service?
A:Yes, OEM and ODM are both available, we have the professional R&D dept which can provide professional solutions for you.
Company Information
Shelok considers itself not only a manufacture but more conprehensively a provider of industry specific customer-oriented solutions.Our profound understanding of product application and strong technical backgrounds ensure you the best product solution and achieve a greater success.
Xi'an Shelok Instrument Technology co.,ltd is a professional R&D center and manufacture of measuring instruments.And here's a variety of products for you choice: pressure transmitters,temperature transmitters,flow transmitters,weighing instruments and so on.Our products have been made by advanced technology, with high quality, fast delivery period, which have attracted so many domestic and foreign customers.
Packing & Shipping
