| Place of Origin: | Made In China |
| Brand Name: | WISE |
| Certification: | CE |
| Model Number: | YK-100 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | USD45~USD175/pc |
| Packaging Details: | Accuracy 0.1 water proof PH meter PH tester Standard export carton packing. |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Product Name: | Digital Air Water Oil Pressure Gauge | Range: | -100KPa---260MPa |
|---|---|---|---|
| Accuracy: | 0.2%,0.5%,0.25% | Power Supply: | 24VDC Or 12VDC |
| Overload Capacity: | 200% | Medium Temp: | -10~80°C |
| Display: | 4 Digit LCD (optional) | Thread: | M20*1.5, G1/2, 1/2npt |
| Medium: | Water,oil,air | Warranty: | 1 Year |
1
Description
YK-100B digital pressure gauge imported sensor, superior performance, high accuracy, corrosion resistance, impact resistance, anti-vibration, high stability, etc.; signal processing circuitry using the latest ultra-low-power processors, signal processing and power management chip chips, using a large capacity, high performance lithium battery-powered, no external power supply. 5 percentage using the digital display and analog display, intuitive readings, the product precision can reach 0.05 for ordinary pressure gauge, precision pressure gauge and pressure transmitter calibration and test, instead of the more traditional mechanical pointer pressure table-site measuring pressure.
Features
Micro-power, high accuracy, high-definition digital LCD six;
Small size, simple operation, easy field calibration pressure gauges and precision pressure measurement using;
Intelligent calibration, linear repair, two seconds and zero magnetic induction pen
LCD display with dynamic pressure, visual display percentages pressure
Pressure unit: mmH2O mmHg psi kPa MPa Pa mbar bar pressure up to ten units (optional)
Dynamic pressure measurement can be displayed online curve, the peak record function (optional);
A variety of additional features. If RS485 interface output, 4-20mA output, data output USB interface instant messaging, storage function (optional)
Specification
| Measuring range | 100KPa1KPa ~260MPa | Accuracy | 0.05, 0.1, 0.2, 0.4 |
| Overload capacity | 200% | Pressure Type | Gauge,Absolute Pressure |
| Stability | ≤0.1%/year | Communication | RS485, RS232, ACI |
| Display | LCD,5characters | Output signals | 4 ~ 20mA |
| Ambient temperature | -20°C~70°C | Relative humidity | ≤80% |
| Connection size | M20x1.5 Male | Pressure unit | MPa/KPa/Bar/Psi/mBar |
| Case material | SS | Medium temp | -40 °C ~ 90 °C |

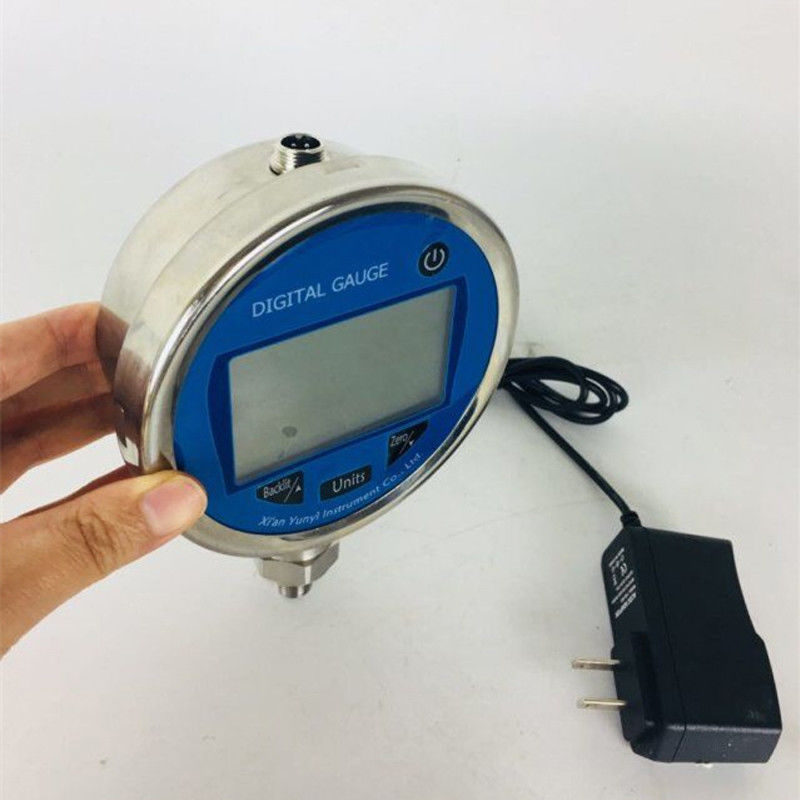

Detailed Images
Applications
Used to petroleum, chemical industry, power plant, water supply of town, Horologic exploration fields.
