| Place of Origin: | Made In China |
| Brand Name: | WISE |
| Certification: | CE |
| Model Number: | YK |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | USD95~USD135/pc |
| Packaging Details: | Accuracy 0.1 water proof PH meter PH tester Standard export carton packing. |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Product Name: | Micro Pressure Digital Pressure Gauge/ Differential Pressure Gauge | Model No.: | YK Series |
|---|

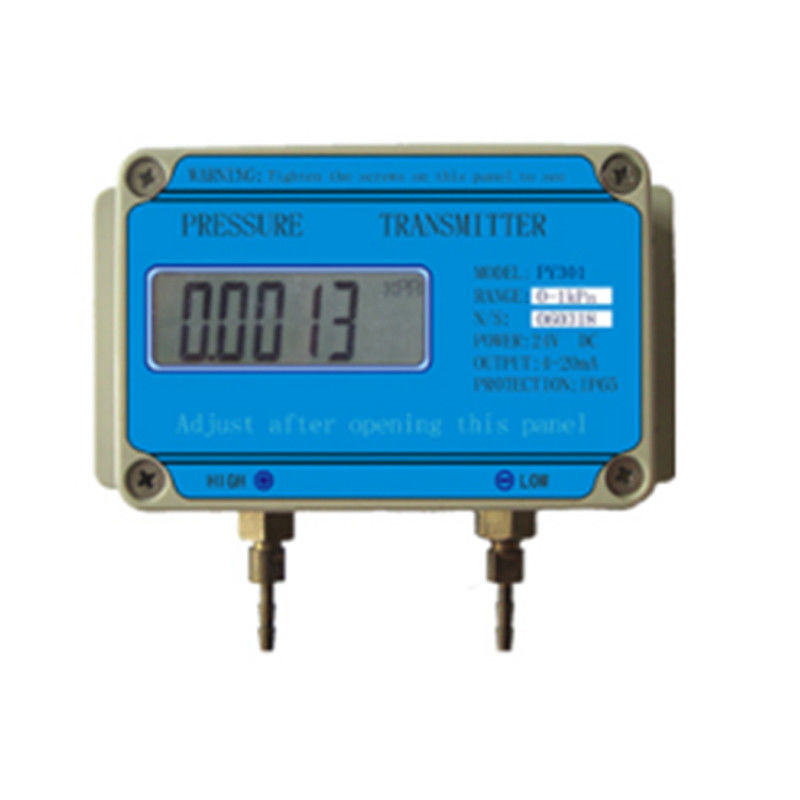

Micro pressure digital pressure gauge/ differential pressure gauge
Description: Micro pressure digital pressure gauge/ differential pressure gauge
Differential pressure transmitter is mainly used for HVAC, clean rooms, vacuum boiler, HVAC,wind speed measurement, leak detection, clean room, power plant air pressure, dust, air differential pressure measuring throttle control. Since the application of intelligent circuit, so that the accuracy and stability of the differential pressure measurement has been greatly improved.
Technical Parameters:
Measuring medium: gas
Range: The measurement mode and range depend on the suitability of the sensor. Do not exceed the upper and lower limits of the sensor when measuring the range.
Differential pressure: DP Min: 0 ~ 100Pa Max: 0 ~ 100KPa
Absolute: AP minimum: 0 ~ 5KPa max: 0 ~ 100KPa
Output: 4 ~ 20mA
Linearity: 0.1%
Repeatability: 0.05%
Hysteresis: 0.05%
Response time: 0.1 to 1.6 seconds (depending on range and range ratio)
Additional adjustable time constant: 0 to 32 seconds
Long-term stability: 0.1% F.S / year
Temperature coefficient: 0.02% F.S / ° C (within -40 to 85 ° C, zero and span total)
Power: 12 ~ 45VDC
Pressure interface: M8x1 female or 8 barbed interface
Material: <sensor>: silicon, glass, PTV
<Sensor>: carbon steel plating
<Sensor>: ABS engineering plastics
Case protection: IP65
Electrical connection: Hirschmann connector
Application
