| Place of Origin: | Made In China |
| Brand Name: | WISE |
| Certification: | CE |
| Model Number: | DK01 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | USD65~USD95/pc |
| Packaging Details: | Accuracy 0.1 water proof PH meter PH tester Standard export carton packing. |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Product Name: | Hydraulic Oil Test Pressure Gauge With Stainless Steel | Material: | 316 Stainless Steel |
|---|---|---|---|
| Accuracy: | 1.6 | Pressure Range: | -100KPa---260MPa |
| Model: | DK01 | Size: | 100mm |
| Connection: | M20*1.5 | Type: | Measuring Instruments |
| Application: | Liquid | Case: | Stainless Steel Casing |

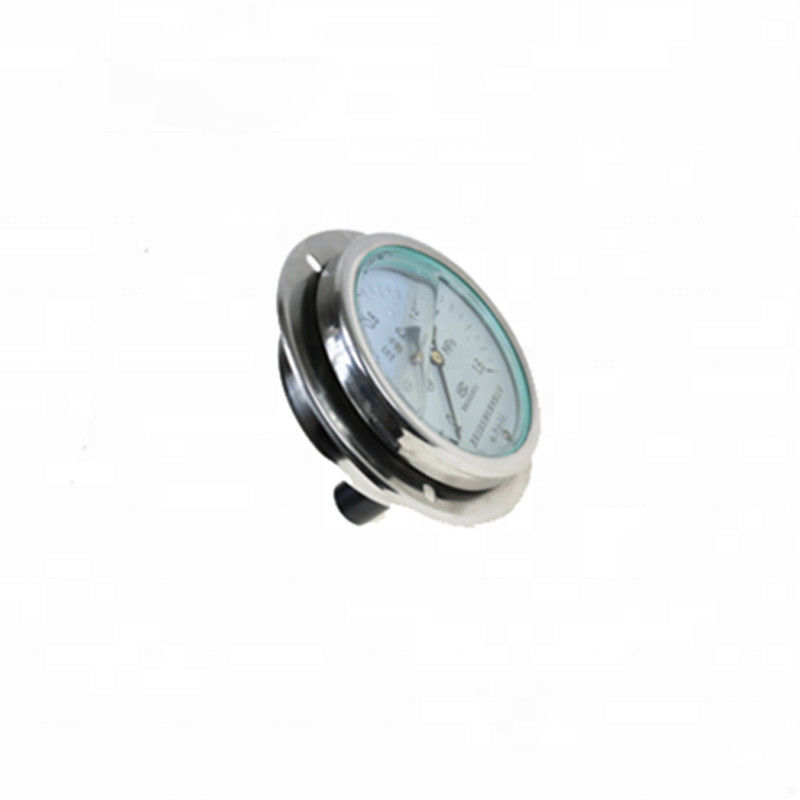

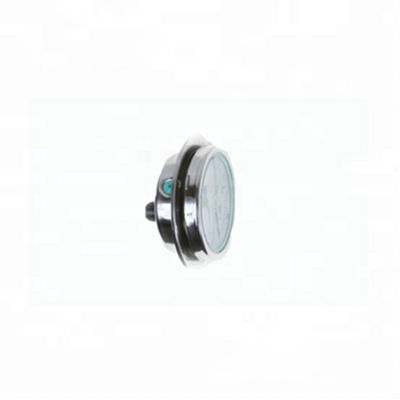

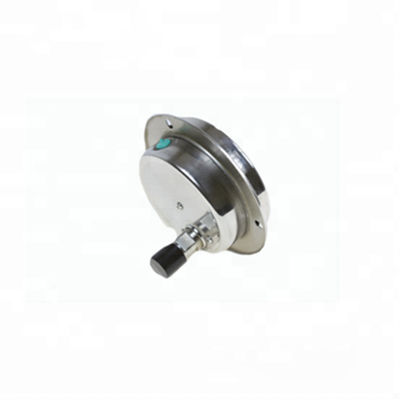

Hydraulic oil test pressure gauge with stainless steel
Description of Hydraulic oil test pressure gauge with stainless steel:
Stainless steel pressure gauge applicable in the measurement of various liquid (gas) medium differential pressure, flow and other process chemicals, chemical brazing, metallurgy, electric power, nuclear power and other industrial sectors. All meter structure made of stainless steel, whose measurement system (dual bellows urgent connecting parts), pressure systems (including joints, pipes, etc.) using reasonable special structure design, advanced technology, with small size, light weight, good stability , long life,new appearance , strong adaptability advantages. Connection joints include parallel (can be directly connected with the three valves manifold) and inclined, adapt to different customers requirements.
Hydraulic oil test pressure gauge with stainless steel
1. Peak Hold function, record the maximum pressure values during the measurement
2. Pressure on the percentage of dynamic display, (the progress bar display)
3. Choice of five engineering units: psi, bar, kpa, kg / square centimetre Mpa
4. Choose 0 ~ 15min auto-off feature.
5. Micro-power consumption, work more than 2 years in power-saving mode, 2,000 hours continuous work.
6. Parameter correction, correct zero and error in field application.
7. Limit the upper and lower range
8. Sampling rate: 4 times / sec
9. Applicable to a variety of gases and liquids compatible with stainless steel pressure measurement.
Specifications of Hydraulic oil test pressure gauge with stainless steel:
| range | nominal working pressure | accuracy degree | Joint thread sizes | ||
| 0~10 0~16 0~25 0~40 0~60 0~100 |
KPa | 60 100 160 250 400 600 |
KPa | 2.5 | M20x1.5 NPT 1/2 |
| 0~0.16 0~0.25 0~0.4 0~0.6 0~1 0~1.6 0~2.5 |
MPa | 1 1.6 2.5 4 6 10 10 |
MPa | ||
