| Place of Origin: | Made In China |
| Brand Name: | WISE |
| Certification: | CE |
| Model Number: | YK-100C |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | USD135~USD295/pc |
| Packaging Details: | Accuracy 0.1 water proof PH meter PH tester Standard export carton packing. |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Product Name: | RS485 Digital Pressure Gauge | Pressure Range: | -100kPa ~ 2kPa ~ 250MPa (Customized) |
|---|---|---|---|
| Accuracy: | ±0.25; ±0.16; ±0.1; ±0.05%F.S | Dimensions: | 100mm *34mm |
| Weight: | 0.5kg | Power Supply: | Built-in Lithium Battery Power,9V Power Adapter And DC24V |
| Ambient Temperature: | 0 ~ 50°C | Ambient Relative Humidity: | <95% |
| Display: | LCD | Signal Output: | RS485 |

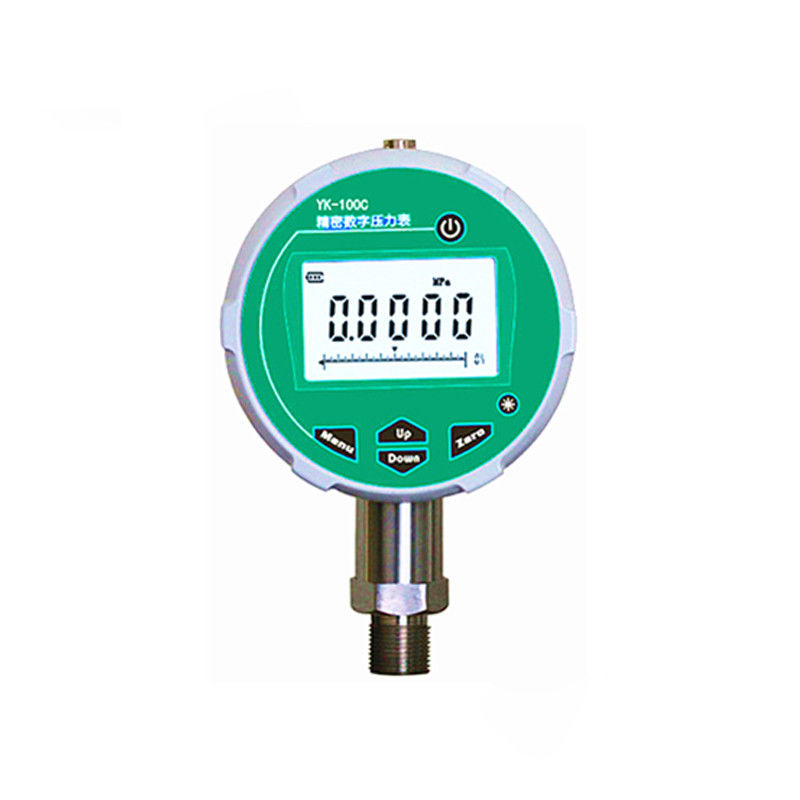

YK-100C RS485 digital pressure gauge is our new micro-power smart product. This RS485 digital pressure gauge uses advanced micro-power devices and unique software processing technology to truly measure pressure continuously. The built-in LI battery can work continuously for more than 3 years in 24 hours; it adopts a large-screen segment wide viewing angle liquid crystal display window, and the reading is very eye-catching and intuitive. Before the product leaves the factory, after high-low temperature aging, stress aging and temperature compensation and other processes, even in the (0 ~ 50) °C range, one year time, under the harsh conditions of 99% confidence, but also to ensure product accuracy . It is mainly used for checking pressure (differential pressure) transmitters, precision pressure gauges, general pressure gauges, sphygmomanometers and other pressure instruments, and it can also be widely used in occasions where precision pressure measurement is required. It is an updated product of pointer-type precision pressure gauges.
Micro-power, high-accuracy, high-definition digital LCD
Small size, easy operation, easy on-site calibration and precision pressure measurement
Intelligent calibration, linear repair, two seconds magnetic pen sensor zero
LCD display with dynamic pressure value display, visual display of pressure percentage
Pressure Unit : mmH2O mmHg psi kPa MPa Pa mbar bar Up to ten pressure units (optional)
Digital pressure gauge with 485 RTU protocol supporting PC software can monitor transmission data in real time
| Ambient temperature | 0 ~ 50 °C Operating temperature range to ensure accuracy |
| Ambient relative humidity | <95% |
| Pressure range | -100kPa ~ 2kPa ~ 250MPa (can be customized) |
| Accuracy | ±0.25%F.S; ±0.16%F.S; ±0.1%F.S; ±0.05%F.S |
| Dimensions | φ 100mm × 34mm |
| Weight | 0.5kg |
| Power supply | Built-in lithium battery power,9V power adapter,DC24V |
| Data transmission and record | Activate 485 communication port for real-time data transmission and record |
