| Place of Origin: | Made In China |
| Brand Name: | WISE |
| Certification: | CE |
| Model Number: | D2000 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | USD10.5~USD19.5/pc |
| Packaging Details: | Accuracy 0.1 water proof PH meter PH tester Standard export carton packing. |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Product Name: | Micro Differential Pressure Gauge Manometer Price | Output: | -20 InHg To 15 Psig, (-0.677 Bar To 1.034 Bar) |
|---|---|---|---|
| Accuracy: | ±2% Of Full Scale | Temperature: | 20 To 140 ° F (-6.67 To 60 ° C) |
| Hole Size: | 114mm | Mounting Orientation: | Diaphragm In Vertical |
| Gauge Size: | 4"dia. X 2-3/16"deep. | Medium: | Air And Non-combustible, Compatible Gases (optional Gas) |
| Material: | Cast Aluminum Housing Or ABS Shell, Glass Beveled Panels. | Connections: | 1/8 "NPT |

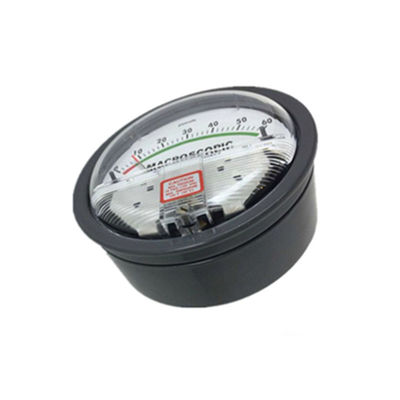

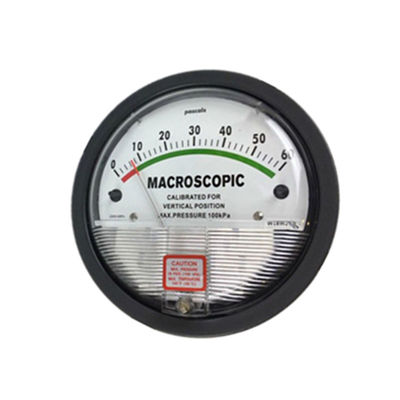

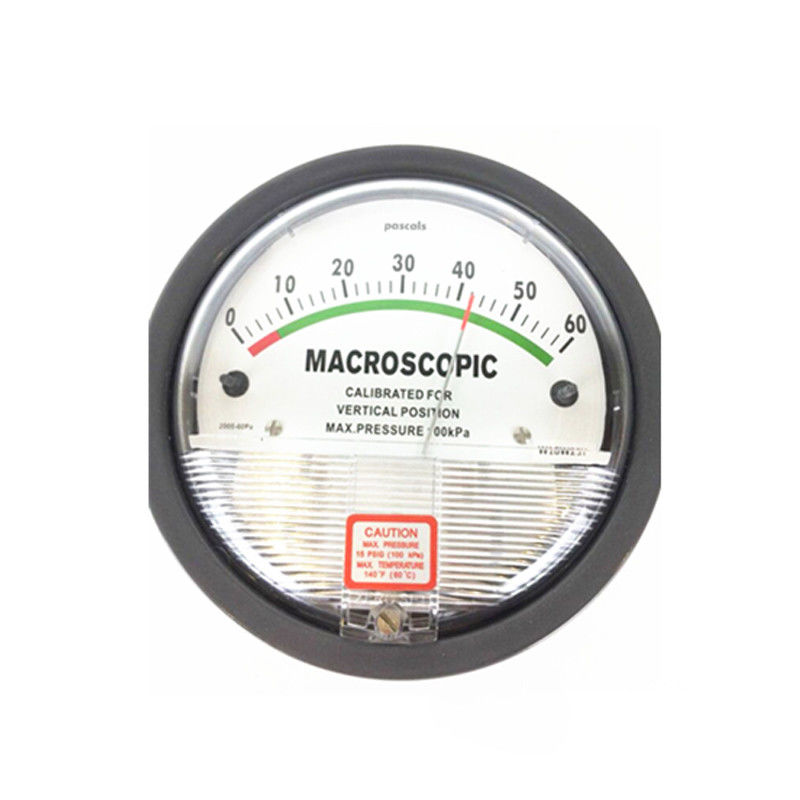

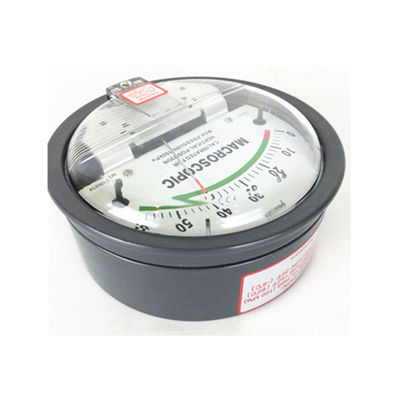

This differential pressure gauge using frictionless magnetic components, can rapidly measure the micro-pressure air or non-corrosive gases, including positive, negative (vacuum) or differential. No wear, hysteresis and clearance. Not filling, vaporization and freezing. This design has anti-vibration, anti-shake and high overpressure capability, you can guarantee access to high precision.
The design impact, shock and overload protection with visual alert.
Pressure Limits: -20" Hg to 15 PSI (-0.677 bar to 1.034 bar); MP option: 35 PSI (2.41 bar); HP option: 80 PSI (5.52 bar)
Media Compatibility: Air and compatible non combustible gases
Accuracy: ±2% full span (±3% on 2000-100Pa and 2000-125Pa; ±4% on 2000-60Pa ranges) at 21°C (70 °F)
Temperature Range: -6.7 to 60°C (20 to 140°F)

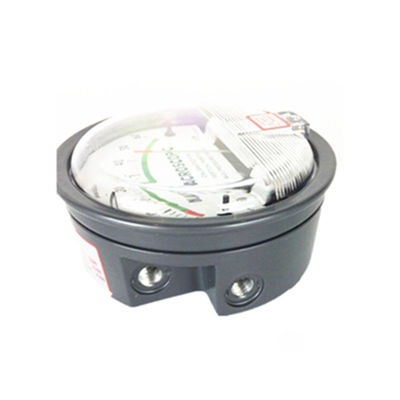

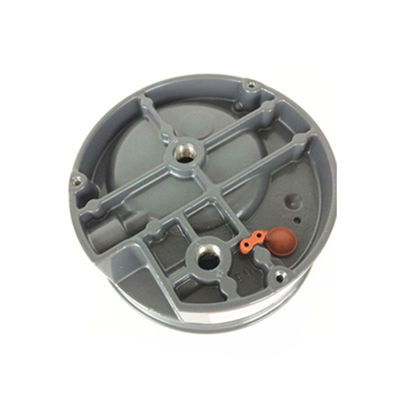

Process Connections: 1/8" female NPT duplicate high and low pressure taps – one pair side and one pair back.
Housing: Die cast aluminum case and bezel, with acrylic cover
Weight: 1 lb 2 oz (510 g), MP & HP 2 lb 2oz (963g)
·Manometer
·Mounting fittings:3 small mounting screws,3 long mounting screws,2 black rubber joints and 4 other parts
Positive Pressure Measurement: Connect the pressure tubing to either of the two ports marked “high pressure” on the gage and plug the other one. Vent the ports marked “low pressure” to atmosphere.
Negative Pressure Measurement: Connect the pressure tubing to either of the two ports marked “low pressure” on the gage and plug the other one. Vent the ports marked “high pressure” to atmosphere.
Differential Pressure Measurement: Connect the higher pressure tubing to either of the two ports marked “high pressure” on the gage and plug the other one. Connect the lower pressure tubing to either of the two ports marked “low pressure” on the gage and plugging the other one.
